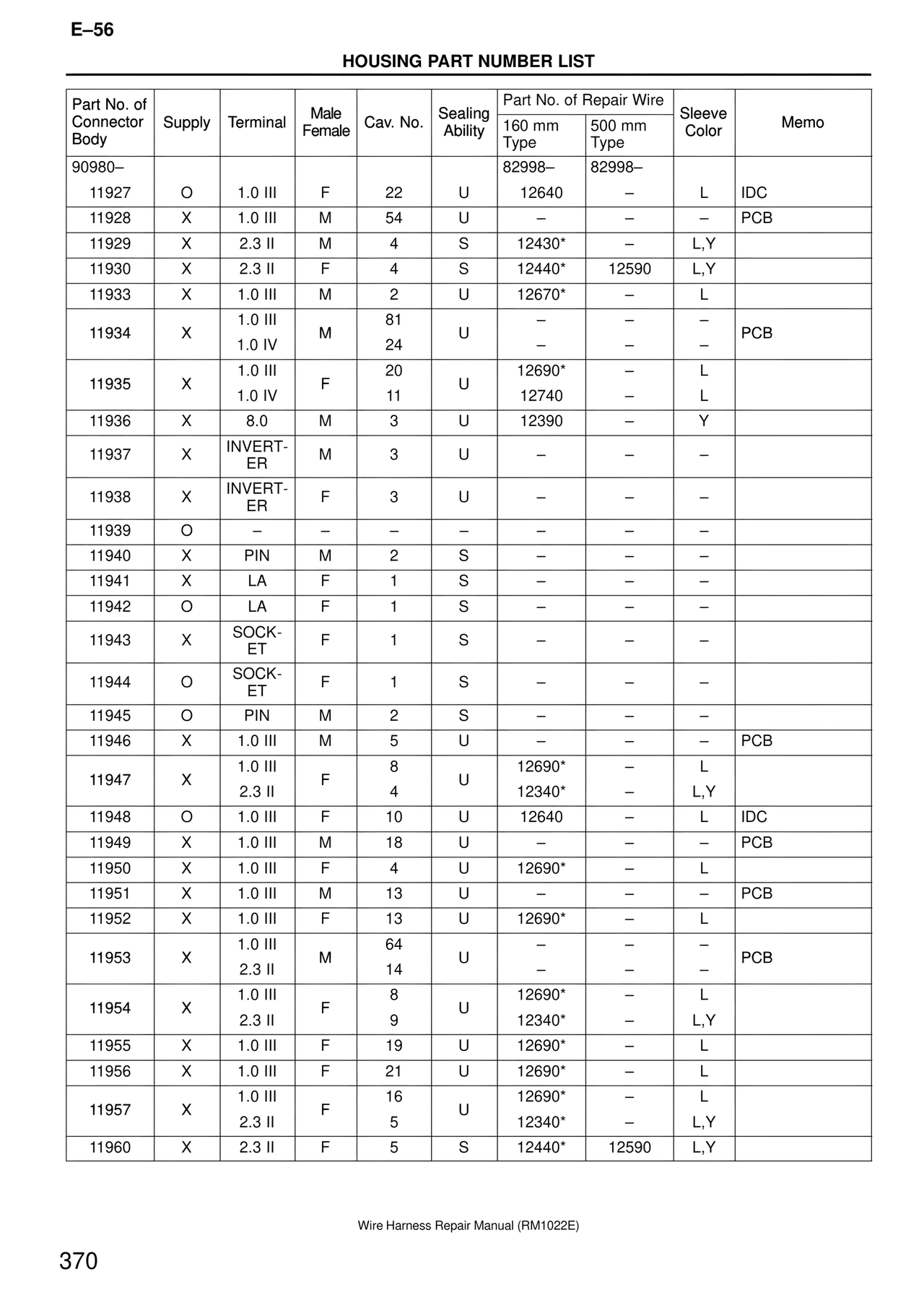

E–56 HOUSING PART NUMBER LIST Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo 90980– 82998– 82998– 11927 | O | 1.0 III | F | 22 | U | 12640 | – | L | IDC 11928 | X | 1.0 III | M | 54 | U | – | – | – | PCB 11929 | X | 2.3 II | M | 4 | S | 12430* | – | L,Y 11930 | X | 2.3 II | F | 4 | S | 12440* | 12590 | L,Y 11933 | X | 1.0 III | M | 2 | U | 12670* | – | L 11934 | X | 1.0 III | M | 81 | U | – | – | – | PCB | | 1.0 IV | | 24 | | – | – | – 11935 | X | 1.0 III | F | 20 | U | 12690* | – | L | | 1.0 IV | | 11 | | 12740 | – | L 11936 | X | 8.0 | M | 3 | U | 12390 | – | Y 11937 | X | INVERTER | M | 3 | U | – | – | – 11938 | X | INVERTER | F | 3 | U | – | – | – 11939 | O | – | – | – | – | – | – | – 11940 | X | PIN | M | 2 | S | – | – | – 11941 | X | LA | F | 1 | S | – | – | – 11942 | O | LA | F | 1 | S | – | – | – 11943 | X | SOCKET | F | 1 | S | – | – | – 11944 | O | SOCKET | F | 1 | S | – | – | – 11945 | O | PIN | M | 2 | S | – | – | – 11946 | X | 1.0 III | M | 5 | U | – | – | – | PCB 11947 | X | 1.0 III | F | 8 | U | 12690* | – | L | | 2.3 II | | 4 | | 12340* | – | L,Y 11948 | O | 1.0 III | F | 10 | U | 12640 | – | L | IDC 11949 | X | 1.0 III | M | 18 | U | – | – | – | PCB 11950 | X | 1.0 III | F | 4 | U | 12690* | – | L 11951 | X | 1.0 III | M | 13 | U | – | – | – | PCB 11952 | X | 1.0 III | F | 13 | U | 12690* | – | L 11953 | X | 1.0 III | M | 64 | U | – | – | – | PCB | | 2.3 II | | 14 | | – | – | – 11954 | X | 1.0 III | F | 8 | U | 12690* | – | L | | 2.3 II | | 9 | | 12340* | – | L,Y 11955 | X | 1.0 III | F | 19 | U | 12690* | – | L 11956 | X | 1.0 III | F | 21 | U | 12690* | – | L 11957 | X | 1.0 III | F | 16 | U | 12690* | – | L | | 2.3 II | | 5 | | 12340* | – | L,Y 11960 | X | 2.3 II | F | 5 | S | 12440* | 12590 | L,Y Wire Harness Repair Manual (RM1022E) 370
