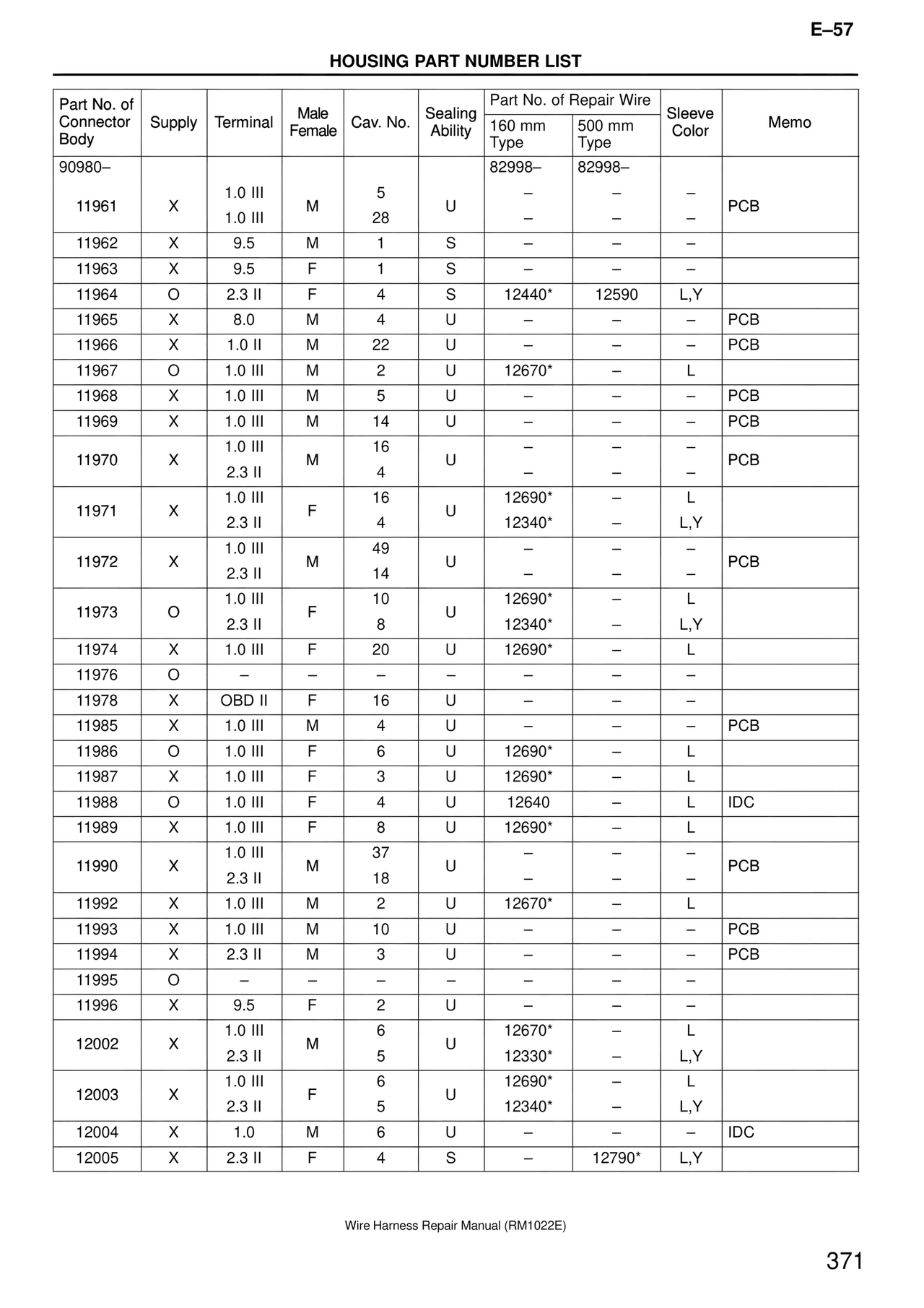

HOUSING PART NUMBER LIST

Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo

90980–

11961 | X | 1.0 III | M | 5 | U | 82998– – | 82998– – | – | PCB
         |   | 1.0 III |   | 28 |   | – | – | – |

11962 | X | 9.5 | M | 1 | S | – | – | –
11963 | X | 9.5 | F | 1 | S | – | – | –
11964 | O | 2.3 II | F | 4 | S | 12440* | 12590 | L,Y
11965 | X | 8.0 | M | 4 | U | – | – | – | PCB
11966 | X | 1.0 II | M | 22 | U | – | – | – | PCB
11967 | O | 1.0 III | M | 2 | U | 12670* | – | L
11968 | X | 1.0 III | M | 5 | U | – | – | – | PCB
11969 | X | 1.0 III | M | 14 | U | – | – | – | PCB

11970 | X | 1.0 III | M | 16 | U | – | – | – | PCB
         |   | 2.3 II  |   | 4  |   | – | – | –

11971 | X | 1.0 III | F | 16 | U | 12690* | – | L
         |   | 2.3 II  |   | 4  |   | 12340* | – | L,Y

11972 | X | 1.0 III | M | 49 | U | – | – | – | PCB
         |   | 2.3 II  |   | 14 |   | – | – | –

11973 | O | 1.0 III | F | 10 | U | 12690* | – | L
         |   | 2.3 II  |   | 8  |   | 12340* | – | L,Y

11974 | X | 1.0 III | F | 20 | U | 12690* | – | L
11976 | O | – | – | – | – | – | – | –
11978 | X | OBD II | F | 16 | U | – | – | –
11985 | X | 1.0 III | M | 4 | U | – | – | – | PCB
11986 | O | 1.0 III | F | 6 | U | 12690* | – | L
11987 | X | 1.0 III | F | 3 | U | 12690* | – | L
11988 | O | 1.0 III | F | 4 | U | 12640 | – | L | IDC
11989 | X | 1.0 III | F | 8 | U | 12690* | – | L

11990 | X | 1.0 III | M | 37 | U | – | – | – | PCB
         |   | 2.3 II  |   | 18 |   | – | – | –

11992 | X | 1.0 III | M | 2 | U | 12670* | – | L
11993 | X | 1.0 III | M | 10 | U | – | – | – | PCB
11994 | X | 2.3 II | M | 3 | U | – | – | – | PCB
11995 | O | – | – | – | – | – | – | –
11996 | X | 9.5 | F | 2 | U | – | – | –

12002 | X | 1.0 III | M | 6 | U | 12670* | – | L
         |   | 2.3 II  |   | 5  |   | 12330* | – | L,Y

12003 | X | 1.0 III | F | 6 | U | 12690* | – | L
         |   | 2.3 II  |   | 5  |   | 12340* | – | L,Y

12004 | X | 1.0 | M | 6 | U | – | – | – | IDC
12005 | X | 2.3 II | F | 4 | S | – | 12790* | L,Y
