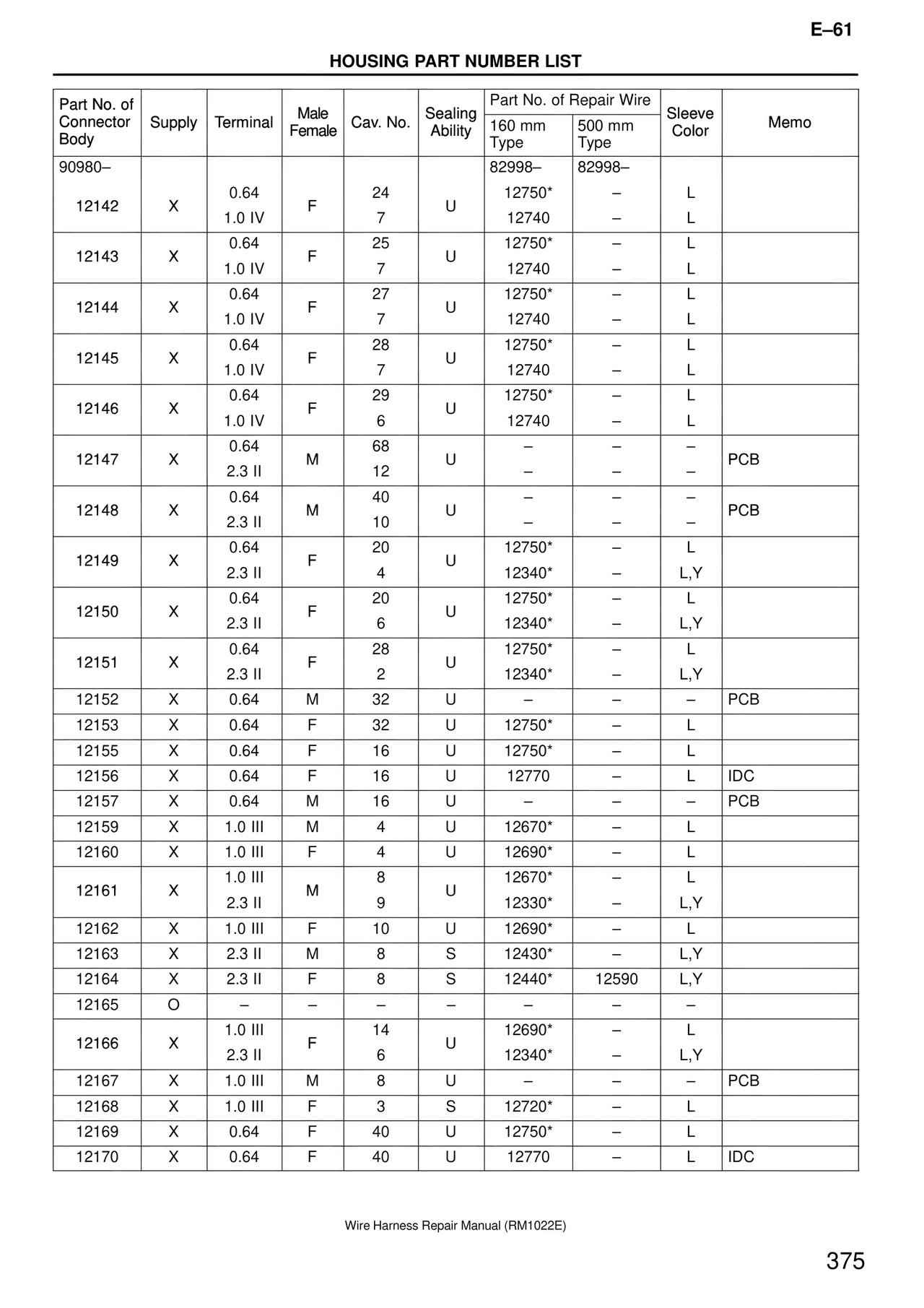

E–61

HOUSING PART NUMBER LIST

Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo

90980–

12142 | X | 0.64 | F | 24 | U | 82998– 12750* | 82998– – | L |
        |   | 1.0 IV |   | 7  |   | 12740 | – | L |

12143 | X | 0.64 | F | 25 | U | 12750* | – | L |
        |   | 1.0 IV |   | 7  |   | 12740 | – | L |

12144 | X | 0.64 | F | 27 | U | 12750* | – | L |
        |   | 1.0 IV |   | 7  |   | 12740 | – | L |

12145 | X | 0.64 | F | 28 | U | 12750* | – | L |
        |   | 1.0 IV |   | 7  |   | 12740 | – | L |

12146 | X | 0.64 | F | 29 | U | 12750* | – | L |
        |   | 1.0 IV |   | 6  |   | 12740 | – | L |

12147 | X | 0.64 | M | 68 | U | – | – | – | PCB
        |   | 2.3 II |   | 12 |   | – | – | – |

12148 | X | 0.64 | M | 40 | U | – | – | – | PCB
        |   | 2.3 II |   | 10 |   | – | – | – |

12149 | X | 0.64 | F | 20 | U | 12750* | – | L |
        |   | 2.3 II |   | 4  |   | 12340* | – | L,Y |

12150 | X | 0.64 | F | 20 | U | 12750* | – | L |
        |   | 2.3 II |   | 6  |   | 12340* | – | L,Y |

12151 | X | 0.64 | F | 28 | U | 12750* | – | L |
        |   | 2.3 II |   | 2  |   | 12340* | – | L,Y |

12152 | X | 0.64 | M | 32 | U | – | – | – | PCB
12153 | X | 0.64 | F | 32 | U | 12750* | – | L |
12155 | X | 0.64 | F | 16 | U | 12750* | – | L |
12156 | X | 0.64 | F | 16 | U | 12770 | – | L | IDC
12157 | X | 0.64 | M | 16 | U | – | – | – | PCB
12159 | X | 1.0 III | M | 4 | U | 12670* | – | L |
12160 | X | 1.0 III | F | 4 | U | 12690* | – | L |

12161 | X | 1.0 III | M | 8 | U | 12670* | – | L |
        |   | 2.3 II  |   | 9 |   | 12330* | – | L,Y |

12162 | X | 1.0 III | F | 10 | U | 12690* | – | L |
12163 | X | 2.3 II | M | 8 | S | 12430* | – | L,Y |
12164 | X | 2.3 II | F | 8 | S | 12440* | 12590 | L,Y |
12165 | O | – | – | – | – | – | – | – |

12166 | X | 1.0 III | F | 14 | U | 12690* | – | L |
        |   | 2.3 II  |   | 6  |   | 12340* | – | L,Y |

12167 | X | 1.0 III | M | 8 | U | – | – | – | PCB
12168 | X | 1.0 III | F | 3 | S | 12720* | – | L |
12169 | X | 0.64 | F | 40 | U | 12750* | – | L |
12170 | X | 0.64 | F | 40 | U | 12770 | – | L | IDC
