E–60

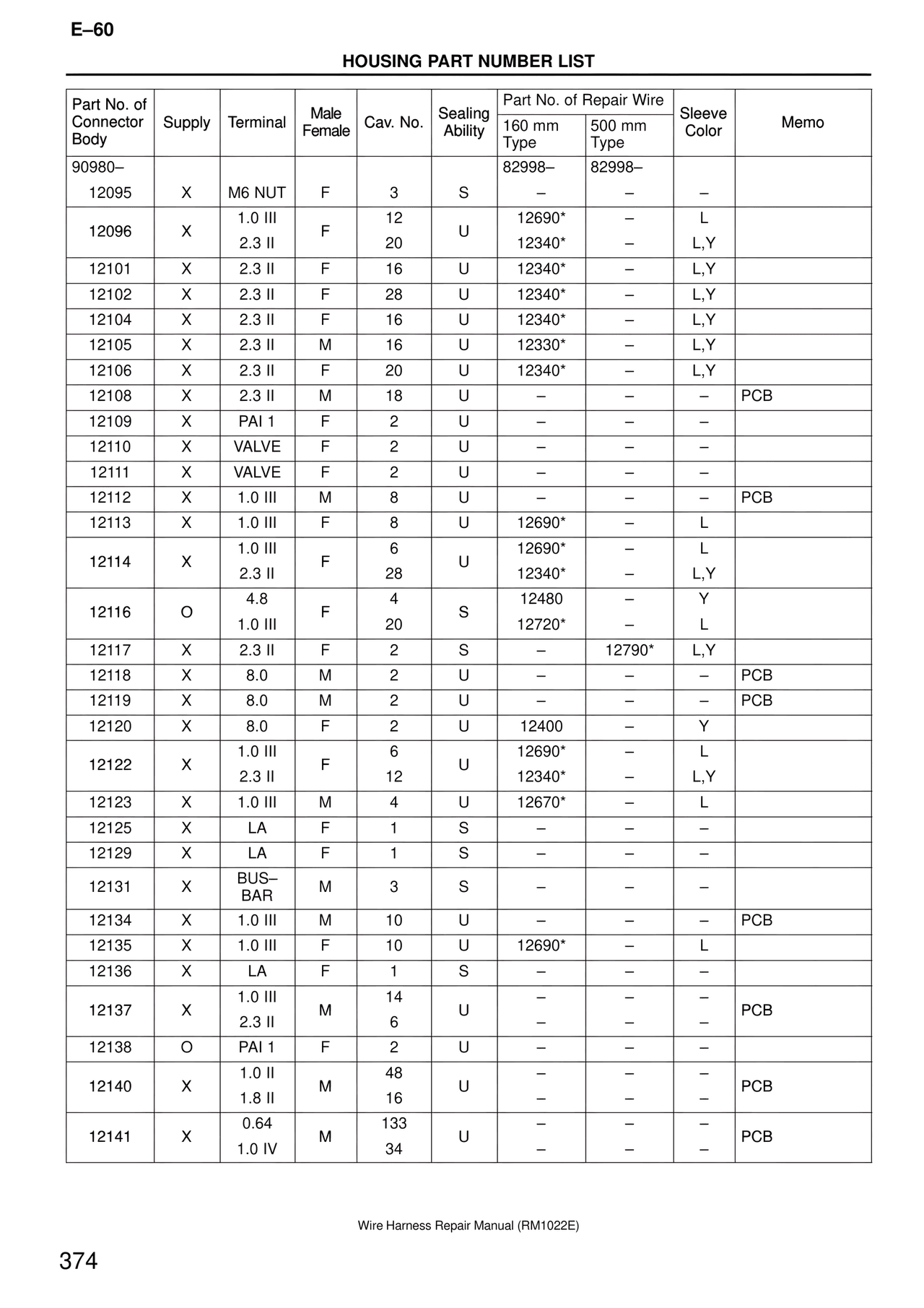

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
12095 | X | M6 NUT | F | 3 | S | 82998– | 82998– | –
12096 | X | 1.0 III | F | 12 | U | 12690* | – | L
12096 | X | 2.3 II | F | 20 | U | 12340* | – | L,Y
12101 | X | 2.3 II | F | 16 | U | 12340* | – | L,Y
12102 | X | 2.3 II | F | 28 | U | 12340* | – | L,Y
12104 | X | 2.3 II | F | 16 | U | 12340* | – | L,Y
12105 | X | 2.3 II | M | 16 | U | 12330* | – | L,Y
12106 | X | 2.3 II | F | 20 | U | 12340* | – | L,Y
12108 | X | 2.3 II | M | 18 | U | – | – | – | PCB
12109 | X | PAI 1 | F | 2 | U | – | – | –
12110 | X | VALVE | F | 2 | U | – | – | –
12111 | X | VALVE | F | 2 | U | – | – | –
12112 | X | 1.0 III | M | 8 | U | – | – | – | PCB
12113 | X | 1.0 III | F | 8 | U | 12690* | – | L
12114 | X | 1.0 III | F | 6 | U | 12690* | – | L
12114 | X | 2.3 II | F | 28 | U | 12340* | – | L,Y
12116 | O | 4.8 | F | 4 | S | 12480 | – | Y
12116 | O | 1.0 III | F | 20 | S | 12720* | – | L
12117 | X | 2.3 II | F | 2 | S | – | 12790* | L,Y
12118 | X | 8.0 | M | 2 | U | – | – | – | PCB
12119 | X | 8.0 | M | 2 | U | – | – | – | PCB
12120 | X | 8.0 | F | 2 | U | 12400 | – | Y
12122 | X | 1.0 III | F | 6 | U | 12690* | – | L
12122 | X | 2.3 II | F | 12 | U | 12340* | – | L,Y
12123 | X | 1.0 III | M | 4 | U | 12670* | – | L
12125 | X | LA | F | 1 | S | – | – | –
12129 | X | LA | F | 1 | S | – | – | –
12131 | X | BUS–BAR | M | 3 | S | – | – | –
12134 | X | 1.0 III | M | 10 | U | – | – | – | PCB
12135 | X | 1.0 III | F | 10 | U | 12690* | – | L
12136 | X | LA | F | 1 | S | – | – | –
12137 | X | 1.0 III | M | 14 | U | – | – | – | PCB
12137 | X | 2.3 II | M | 6 | U | – | – | – | PCB
12138 | O | PAI 1 | F | 2 | U | – | – | –
12140 | X | 1.0 II | M | 48 | U | – | – | – | PCB
12140 | X | 1.8 II | M | 16 | U | – | – | – | PCB
12141 | X | 0.64 | M | 133 | U | – | – | – | PCB
12141 | X | 1.0 IV | M | 34 | U | – | – | – | PCB
Wire Harness Repair Manual (RM1022E)
374
