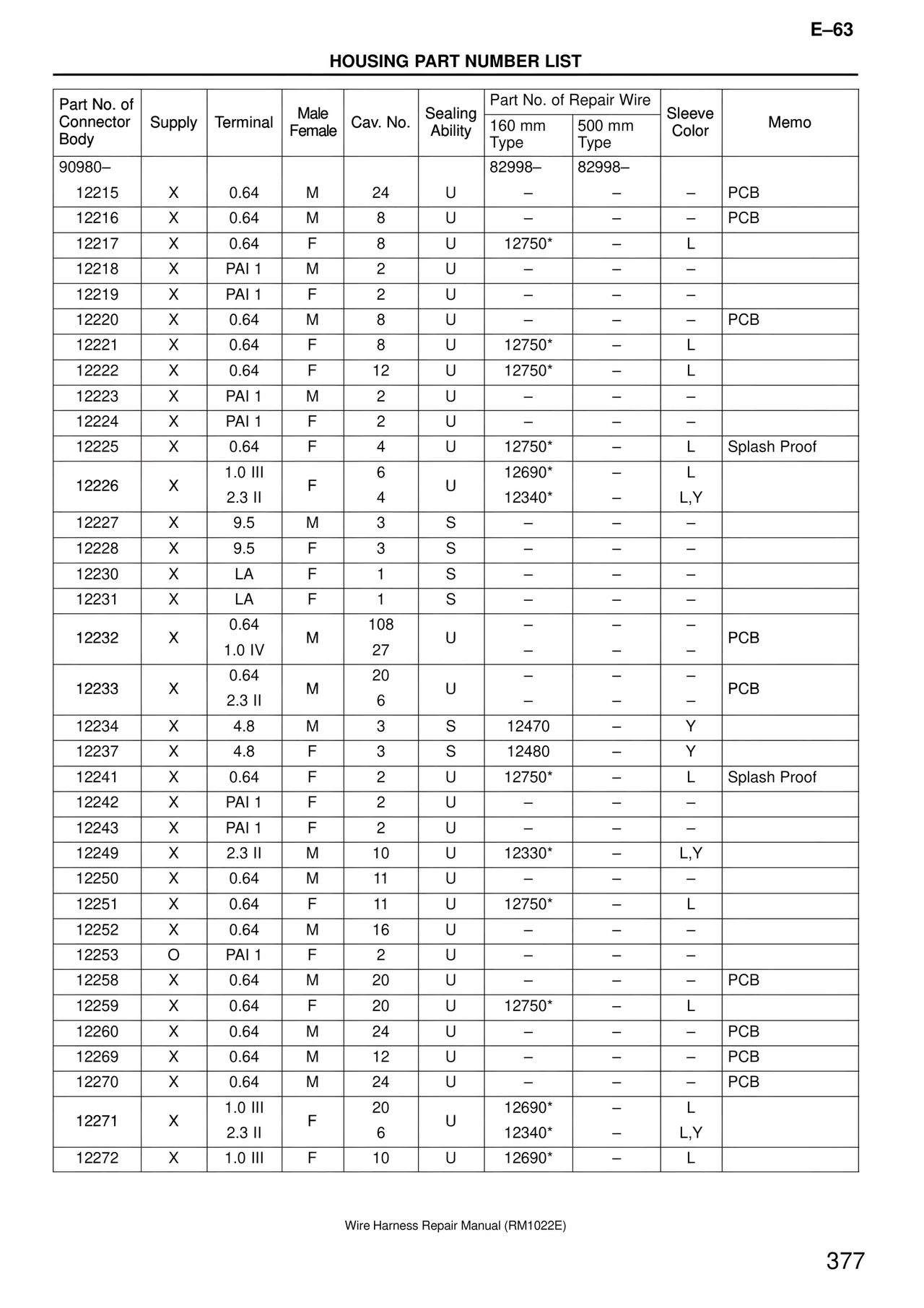

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
82998–
82998–
12215 | X | 0.64 | M | 24 | U | – | – | – | PCB
12216 | X | 0.64 | M | 8 | U | – | – | – | PCB
12217 | X | 0.64 | F | 8 | U | 12750* | – | L |
12218 | X | PAI 1 | M | 2 | U | – | – | – |
12219 | X | PAI 1 | F | 2 | U | – | – | – |
12220 | X | 0.64 | M | 8 | U | – | – | – | PCB
12221 | X | 0.64 | F | 8 | U | 12750* | – | L |
12222 | X | 0.64 | F | 12 | U | 12750* | – | L |
12223 | X | PAI 1 | M | 2 | U | – | – | – |
12224 | X | PAI 1 | F | 2 | U | – | – | – |
12225 | X | 0.64 | F | 4 | U | 12750* | – | L | Splash Proof
12226 | X | 1.0 III | F | 6 | U | 12690* | – | L |
12226 | X | 2.3 II | F | 4 | U | 12340* | – | L,Y |
12227 | X | 9.5 | M | 3 | S | – | – | – |
12228 | X | 9.5 | F | 3 | S | – | – | – |
12230 | X | LA | F | 1 | S | – | – | – |
12231 | X | LA | F | 1 | S | – | – | – |
12232 | X | 0.64 | M | 108 | U | – | – | – | PCB
12232 | X | 1.0 IV | M | 27 | U | – | – | – | PCB
12233 | X | 0.64 | M | 20 | U | – | – | – | PCB
12233 | X | 2.3 II | M | 6 | U | – | – | – | PCB
12234 | X | 4.8 | M | 3 | S | 12470 | – | Y |
12237 | X | 4.8 | F | 3 | S | 12480 | – | Y |
12241 | X | 0.64 | F | 2 | U | 12750* | – | L | Splash Proof
12242 | X | PAI 1 | F | 2 | U | – | – | – |
12243 | X | PAI 1 | F | 2 | U | – | – | – |
12249 | X | 2.3 II | M | 10 | U | 12330* | – | L,Y |
12250 | X | 0.64 | M | 11 | U | – | – | – |
12251 | X | 0.64 | F | 11 | U | 12750* | – | L |
12252 | X | 0.64 | M | 16 | U | – | – | – |
12253 | O | PAI 1 | F | 2 | U | – | – | – |
12258 | X | 0.64 | M | 20 | U | – | – | – | PCB
12259 | X | 0.64 | F | 20 | U | 12750* | – | L |
12260 | X | 0.64 | M | 24 | U | – | – | – | PCB
12269 | X | 0.64 | M | 12 | U | – | – | – | PCB
12270 | X | 0.64 | M | 24 | U | – | – | – | PCB
12271 | X | 1.0 III | F | 20 | U | 12690* | – | L |
12271 | X | 2.3 II | F | 6 | U | 12340* | – | L,Y |
12272 | X | 1.0 III | F | 10 | U | 12690* | – | L |
