E–64

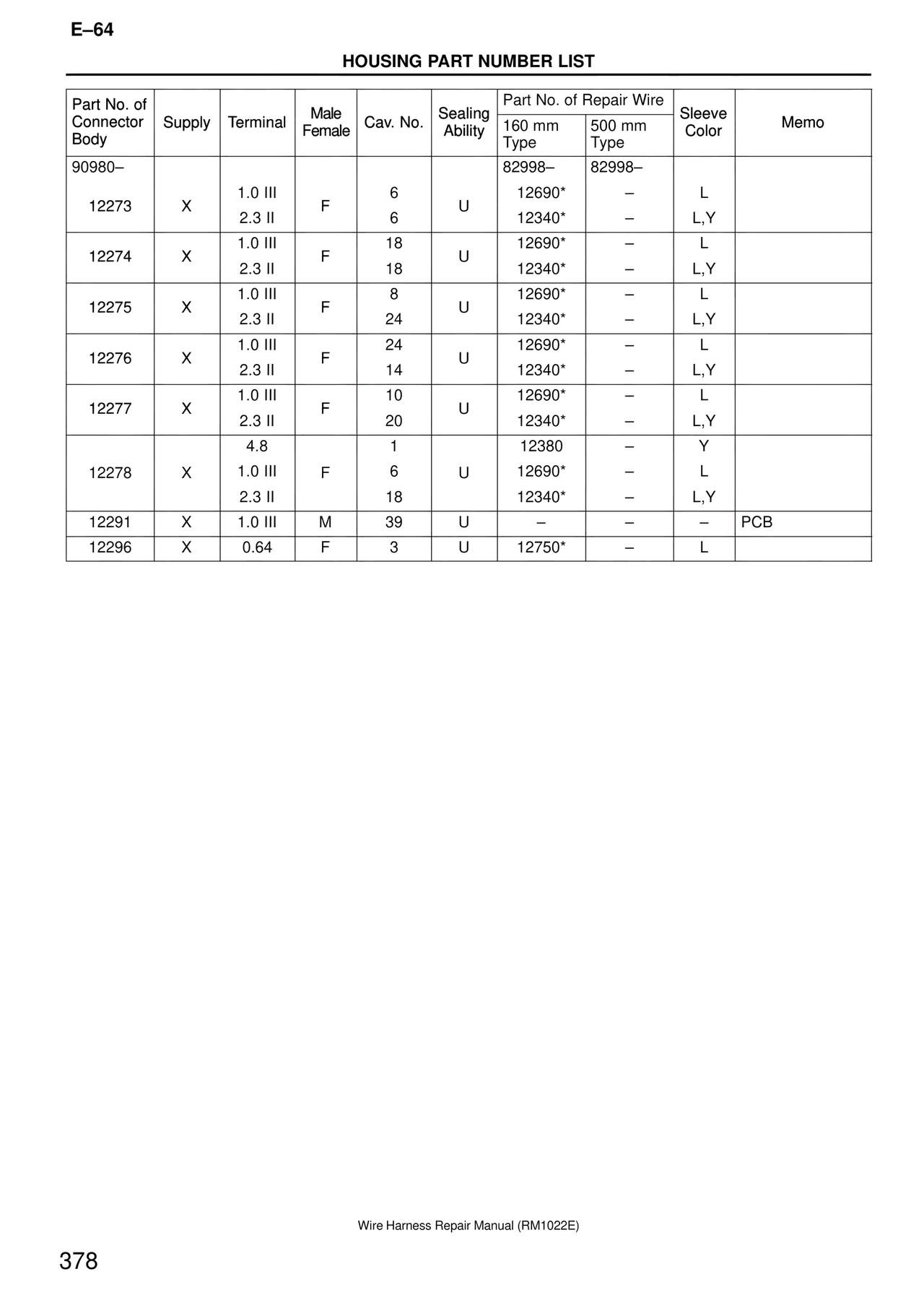

HOUSING PART NUMBER LIST

Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo

90980–

12273 | X | 1.0 III | F | 6 | U | 82998–12690* | 82998– – | L
12273 | X | 2.3 II | F | 6 | U | 12340* | – | L,Y

12274 | X | 1.0 III | F | 18 | U | 12690* | – | L
12274 | X | 2.3 II | F | 18 | U | 12340* | – | L,Y

12275 | X | 1.0 III | F | 8 | U | 12690* | – | L
12275 | X | 2.3 II | F | 24 | U | 12340* | – | L,Y

12276 | X | 1.0 III | F | 24 | U | 12690* | – | L
12276 | X | 2.3 II | F | 14 | U | 12340* | – | L,Y

12277 | X | 1.0 III | F | 10 | U | 12690* | – | L
12277 | X | 2.3 II | F | 20 | U | 12340* | – | L,Y

12278 | X | 4.8 | F | 1 | U | 12380 | – | Y
12278 | X | 1.0 III | F | 6 | U | 12690* | – | L
12278 | X | 2.3 II | F | 18 | U | 12340* | – | L,Y

12291 | X | 1.0 III | M | 39 | U | – | – | – | PCB

12296 | X | 0.64 | F | 3 | U | 12750* | – | L

Wire Harness Repair Manual (RM1022E)

378
