F–18

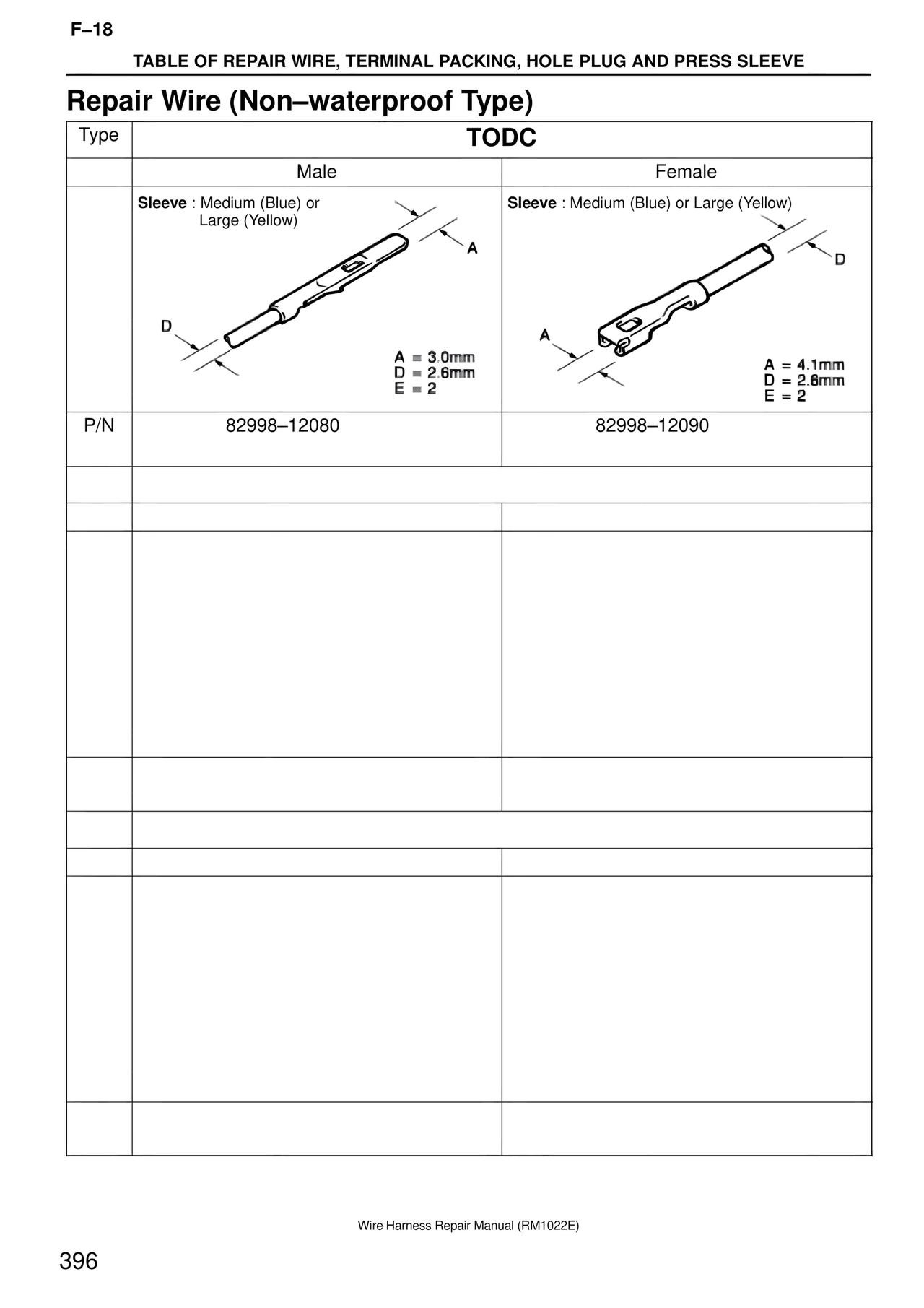

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE
Repair Wire (Non–waterproof Type)
Type TODC
Male Female
Sleeve : Medium (Blue) or
Large (Yellow)
A = 3.0mm
D = 2.6mm
E = 2
D
Sleeve : Medium (Blue) or Large (Yellow)
A = 4.1mm
D = 2.6mm
E = 2
A
D
P/N 82998–12080 82998–12090
Wire Harness Repair Manual (RM1022E)
396
