F–17

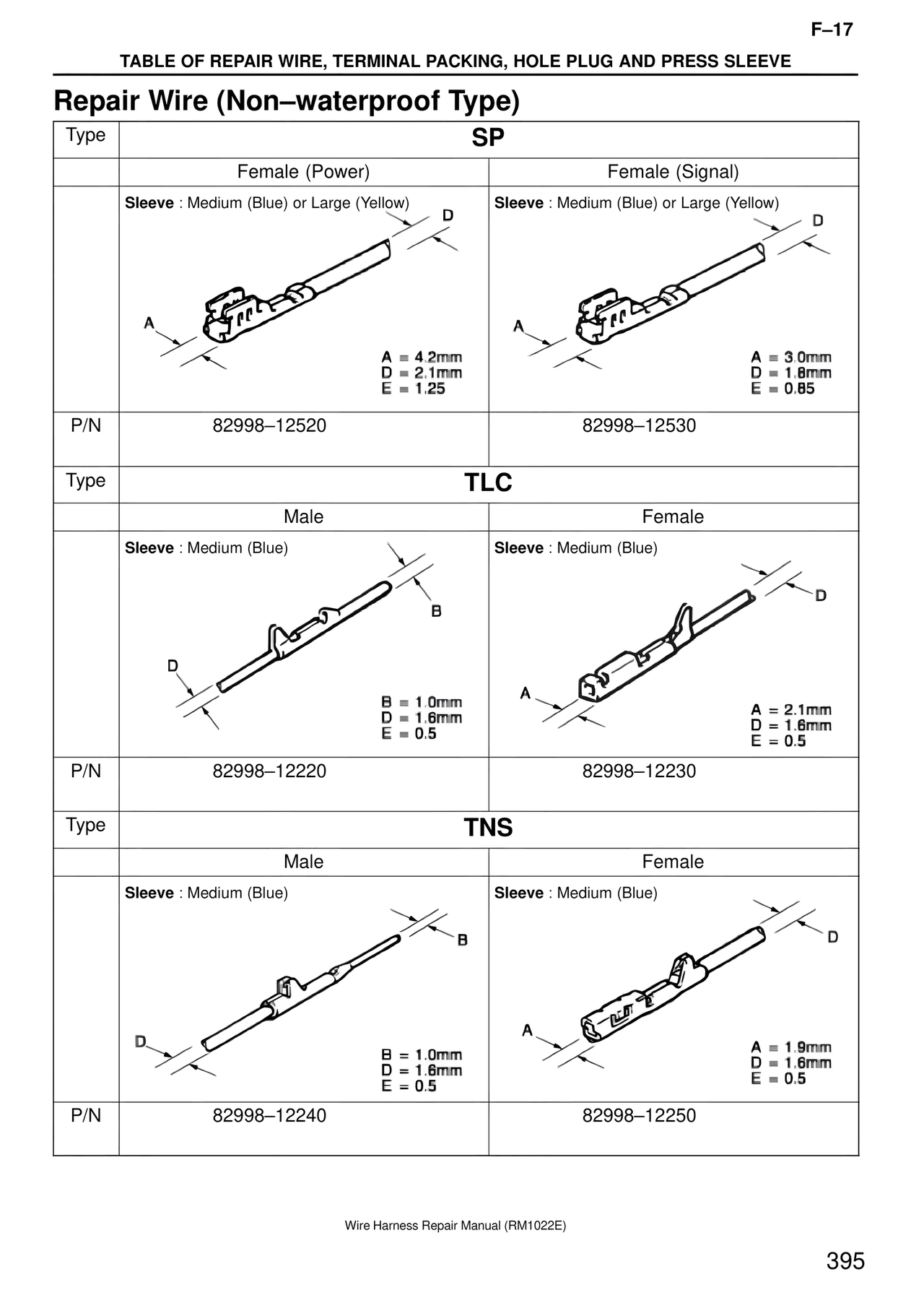

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type | SP

Female (Power) | Female (Signal)

Sleeve : Medium (Blue) or Large (Yellow)
A = 4.2mm
D = 2.1mm
E = 1.25

Sleeve : Medium (Blue) or Large (Yellow)
A = 3.0mm
D = 1.8mm
E = 0.85

P/N | 82998–12520 | 82998–12530

Type | TLC

Male | Female

Sleeve : Medium (Blue)
B = 1.0mm
D = 1.6mm
E = 0.5

Sleeve : Medium (Blue)
A = 2.1mm
D = 1.6mm
E = 0.5

P/N | 82998–12220 | 82998–12230

Type | TNS

Male | Female

Sleeve : Medium (Blue)
B = 1.0mm
D = 1.6mm
E = 0.5

Sleeve : Medium (Blue)
A = 1.9mm
D = 1.6mm
E = 0.5

P/N | 82998–12240 | 82998–12250
