G–2

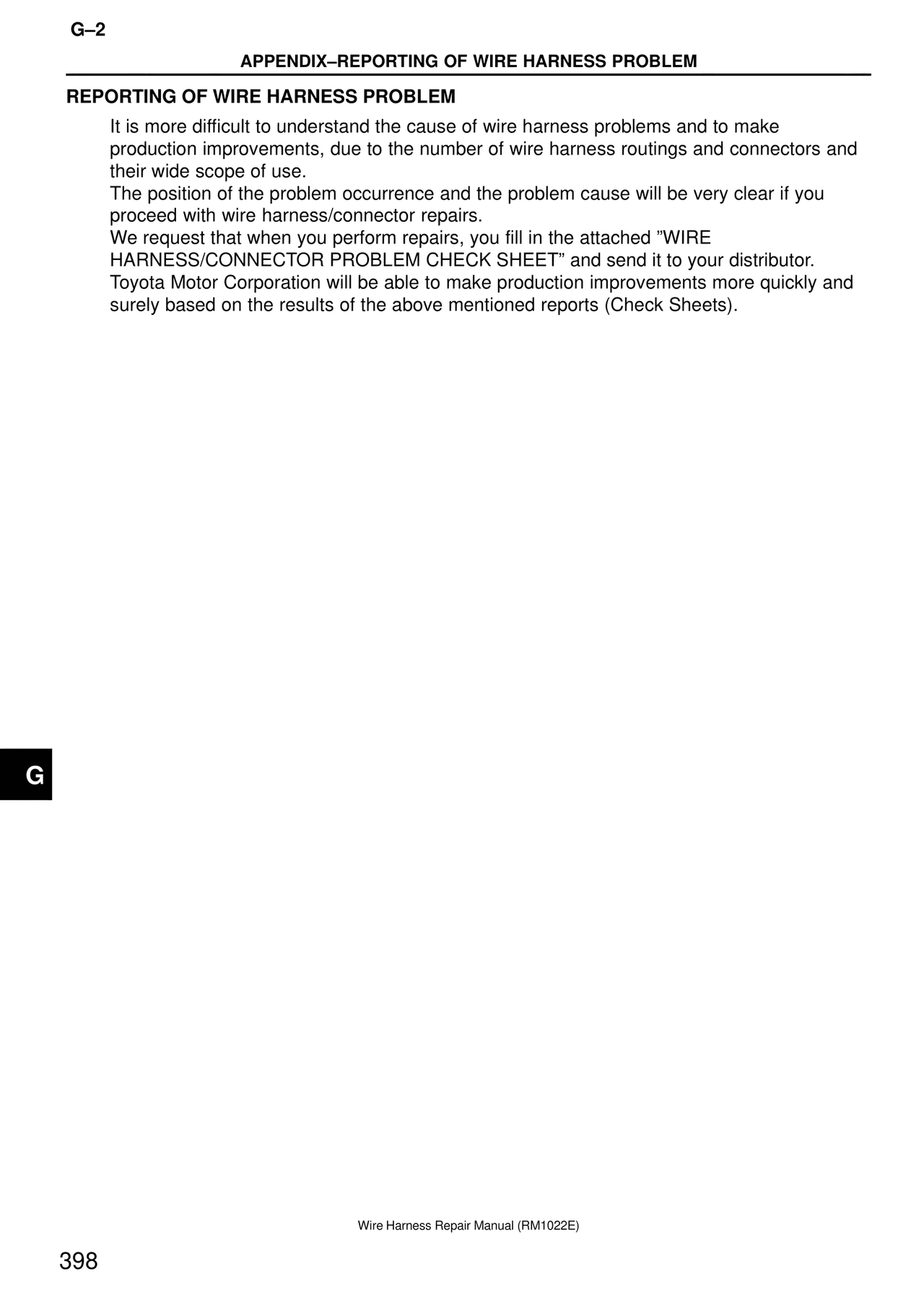

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM
REPORTING OF WIRE HARNESS PROBLEM
It is more difficult to understand the cause of wire harness problems and to make
production improvements, due to the number of wire harness routings and connectors and
their wide scope of use.
The position of the problem occurrence and the problem cause will be very clear if you
proceed with wire harness/connector repairs.
We request that when you perform repairs, you fill in the attached "WIRE
HARNESS/CONNECTOR PROBLEM CHECK SHEET" and send it to your distributor.
Toyota Motor Corporation will be able to make production improvements more quickly and
surely based on the results of the above mentioned reports (Check Sheets).
G
Wire Harness Repair Manual (RM1022E)
398
