G–3

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

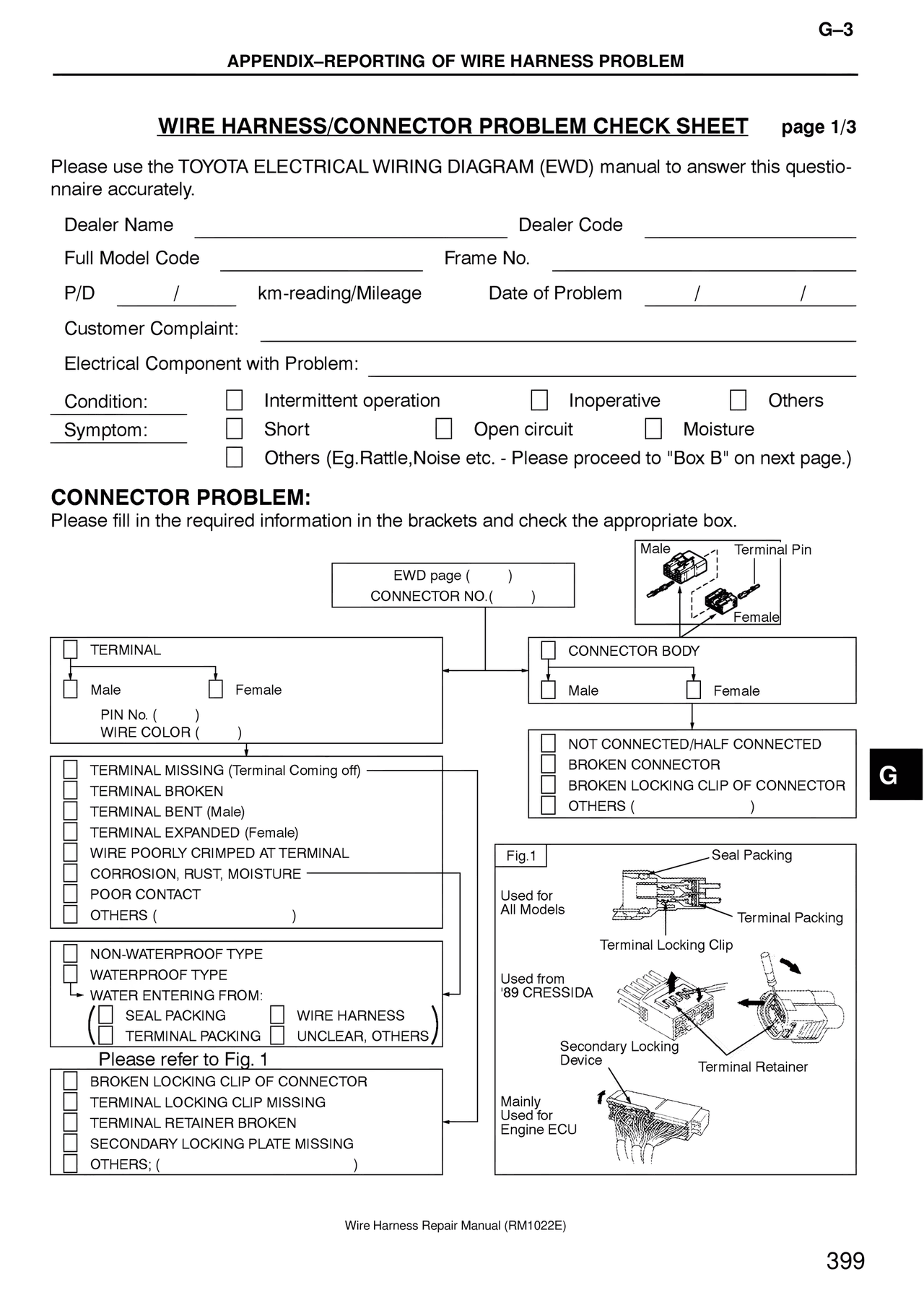

WIRE HARNESS/CONNECTOR PROBLEM CHECK SHEET     page 1/3

Please use the TOYOTA ELECTRICAL WIRING DIAGRAM (EWD) manual to answer this questionnaire accurately.

Dealer Name                                    Dealer Code
Full Model Code                    Frame No.
P/D        /          km-reading/Mileage        Date of Problem        /        /
Customer Complaint:
Electrical Component with Problem:

Condition:      □  Intermittent operation        □  Inoperative        □  Others
Symptom:        □  Short                □  Open circuit        □  Moisture
                □  Others (Eg.Rattle,Noise etc. - Please proceed to "Box B" on next page.)

CONNECTOR PROBLEM:
Please fill in the required information in the brackets and check the appropriate box.

EWD page (      )
CONNECTOR NO.(      )

Male          Terminal Pin
Female

□  TERMINAL
□  Male          □  Female
PIN No. (      )
WIRE COLOR (      )

□  CONNECTOR BODY
□  Male          □  Female

□  TERMINAL MISSING (Terminal Coming off)
□  TERMINAL BROKEN
□  TERMINAL BENT (Male)
□  TERMINAL EXPANDED (Female)
□  WIRE POORLY CRIMPED AT TERMINAL
□  CORROSION, RUST, MOISTURE
□  POOR CONTACT
□  OTHERS (                    )

□  NOT CONNECTED/HALF CONNECTED
□  BROKEN CONNECTOR
□  BROKEN LOCKING CLIP OF CONNECTOR
□  OTHERS (                    )

Fig.1                              Seal Packing
Used for
All Models                         Terminal Packing
                                   Terminal Locking Clip

□  NON-WATERPROOF TYPE
□  WATERPROOF TYPE
→  WATER ENTERING FROM:
(  □  SEAL PACKING      □  WIRE HARNESS  )
   □  TERMINAL PACKING  □  UNCLEAR, OTHERS
Please refer to Fig. 1

Used from
'89 CRESSIDA

Secondary Locking
Device                             Terminal Retainer

□  BROKEN LOCKING CLIP OF CONNECTOR
□  TERMINAL LOCKING CLIP MISSING
□  TERMINAL RETAINER BROKEN
□  SECONDARY LOCKING PLATE MISSING
□  OTHERS; (                    )

Mainly
Used for
Engine ECU

G

Wire Harness Repair Manual (RM1022E)

399
