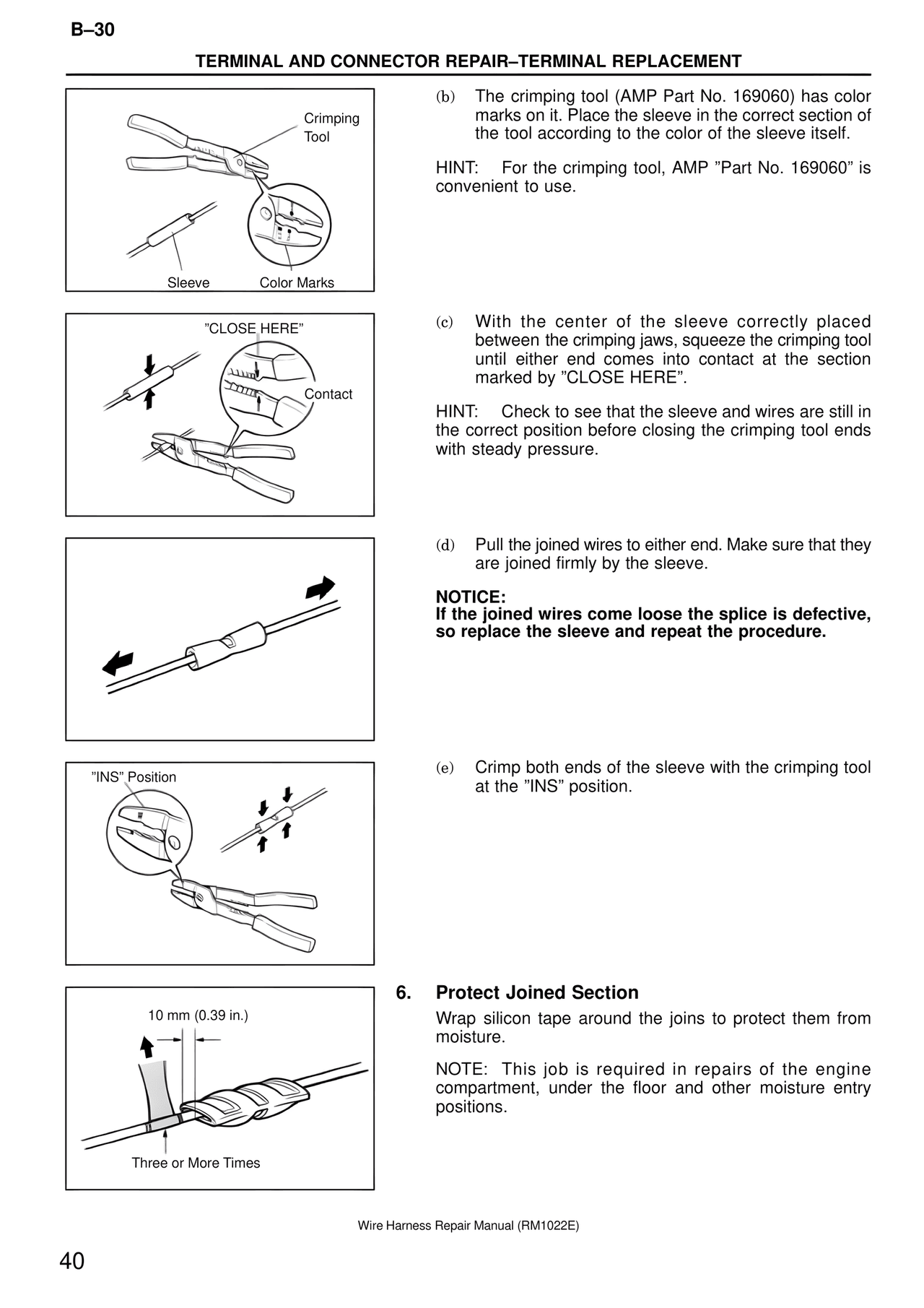

B–30
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Crimping
Tool
Sleeve Color Marks
(b) The crimping tool (AMP Part No. 169060) has color
marks on it. Place the sleeve in the correct section of
the tool according to the color of the sleeve itself.
HINT: For the crimping tool, AMP "Part No. 169060" is
convenient to use.
"CLOSE HERE"
Contact
(c) With the center of the sleeve correctly placed
between the crimping jaws, squeeze the crimping tool
until either end comes into contact at the section
marked by "CLOSE HERE".
HINT: Check to see that the sleeve and wires are still in
the correct position before closing the crimping tool ends
with steady pressure.
(d) Pull the joined wires to either end. Make sure that they
are joined firmly by the sleeve.
NOTICE:
If the joined wires come loose the splice is defective,
so replace the sleeve and repeat the procedure.
"INS" Position
(e) Crimp both ends of the sleeve with the crimping tool
at the "INS" position.
10 mm (0.39 in.)
6. Protect Joined Section
Wrap silicon tape around the joins to protect them from
moisture.
NOTE: This job is required in repairs of the engine
compartment, under the floor and other moisture entry
positions.
Three or More Times
Wire Harness Repair Manual (RM1022E)
40
