A–4

INTRODUCTION–GENERAL INFORMATION

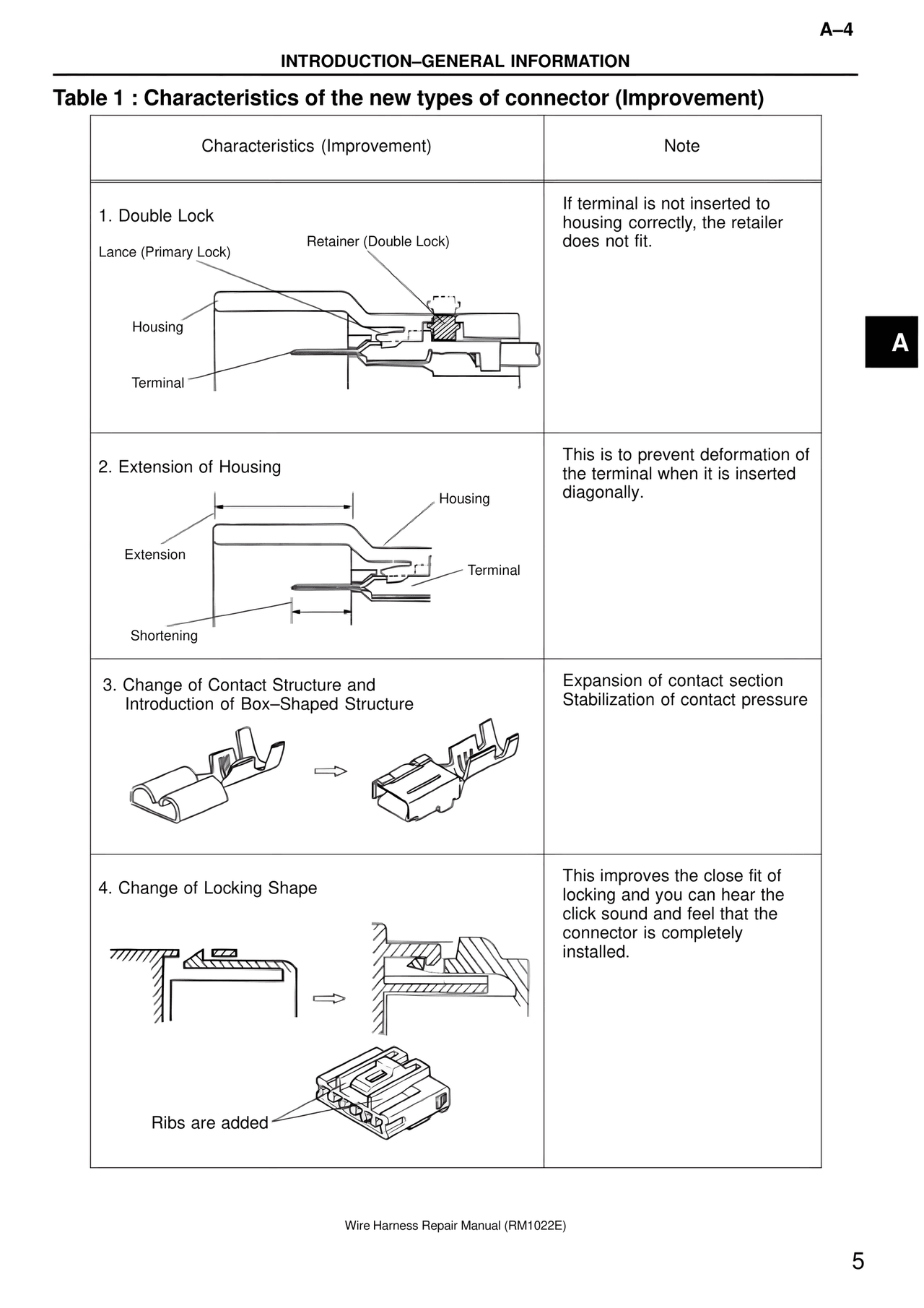

Table 1 : Characteristics of the new types of connector (Improvement)

Characteristics (Improvement) | Note

1. Double Lock
Lance (Primary Lock)
Retainer (Double Lock)
Housing
Terminal

If terminal is not inserted to housing correctly, the retailer does not fit.

2. Extension of Housing
Extension
Housing
Terminal
Shortening

This is to prevent deformation of the terminal when it is inserted diagonally.

3. Change of Contact Structure and Introduction of Box–Shaped Structure

Expansion of contact section
Stabilization of contact pressure

4. Change of Locking Shape

Ribs are added

This improves the close fit of locking and you can hear the click sound and feel that the connector is completely installed.

A

Wire Harness Repair Manual (RM1022E)

5
