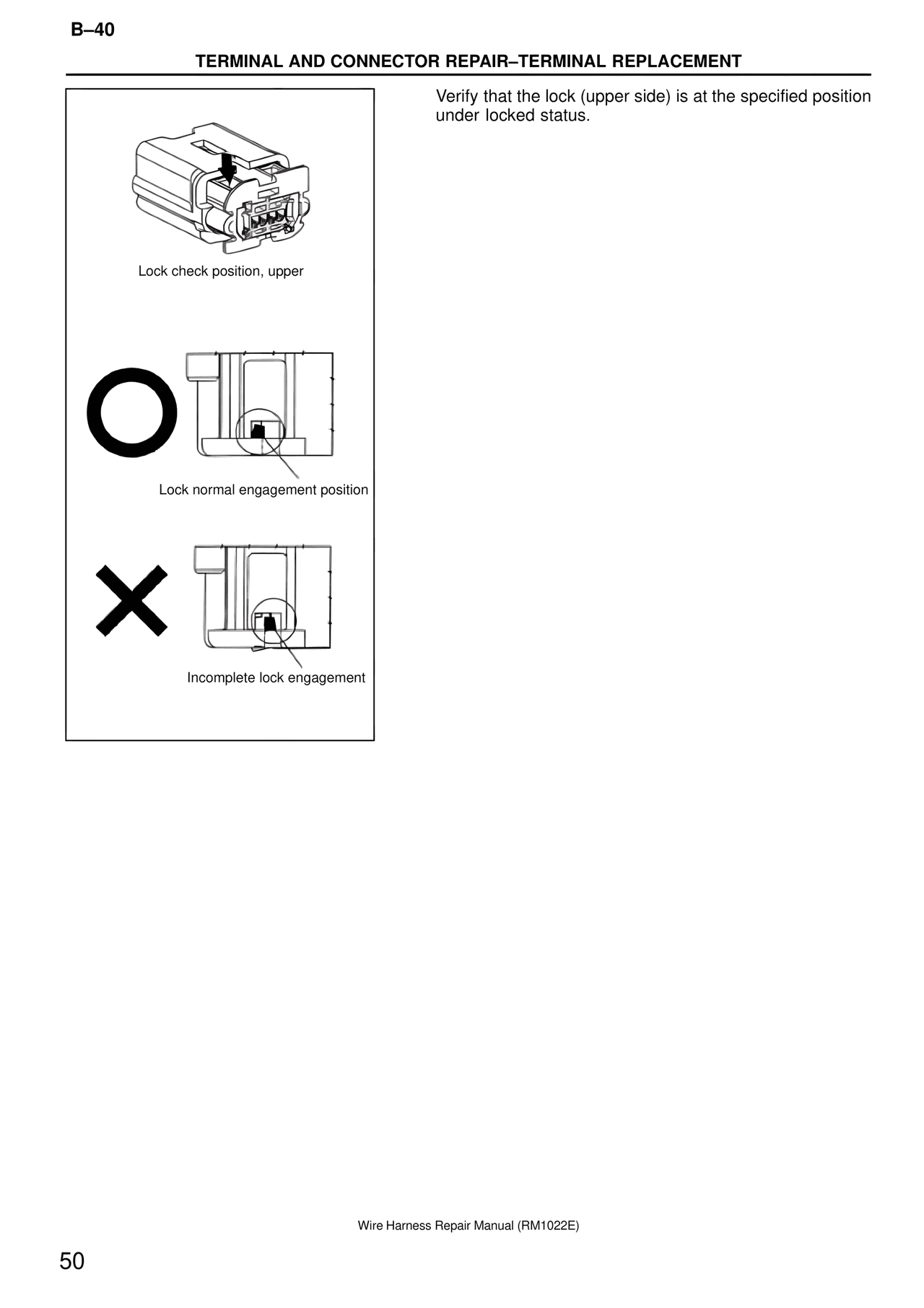

B–40 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Lock check position, upper Lock normal engagement position Incomplete lock engagement Verify that the lock (upper side) is at the specified position under locked status. Wire Harness Repair Manual (RM1022E) 50
