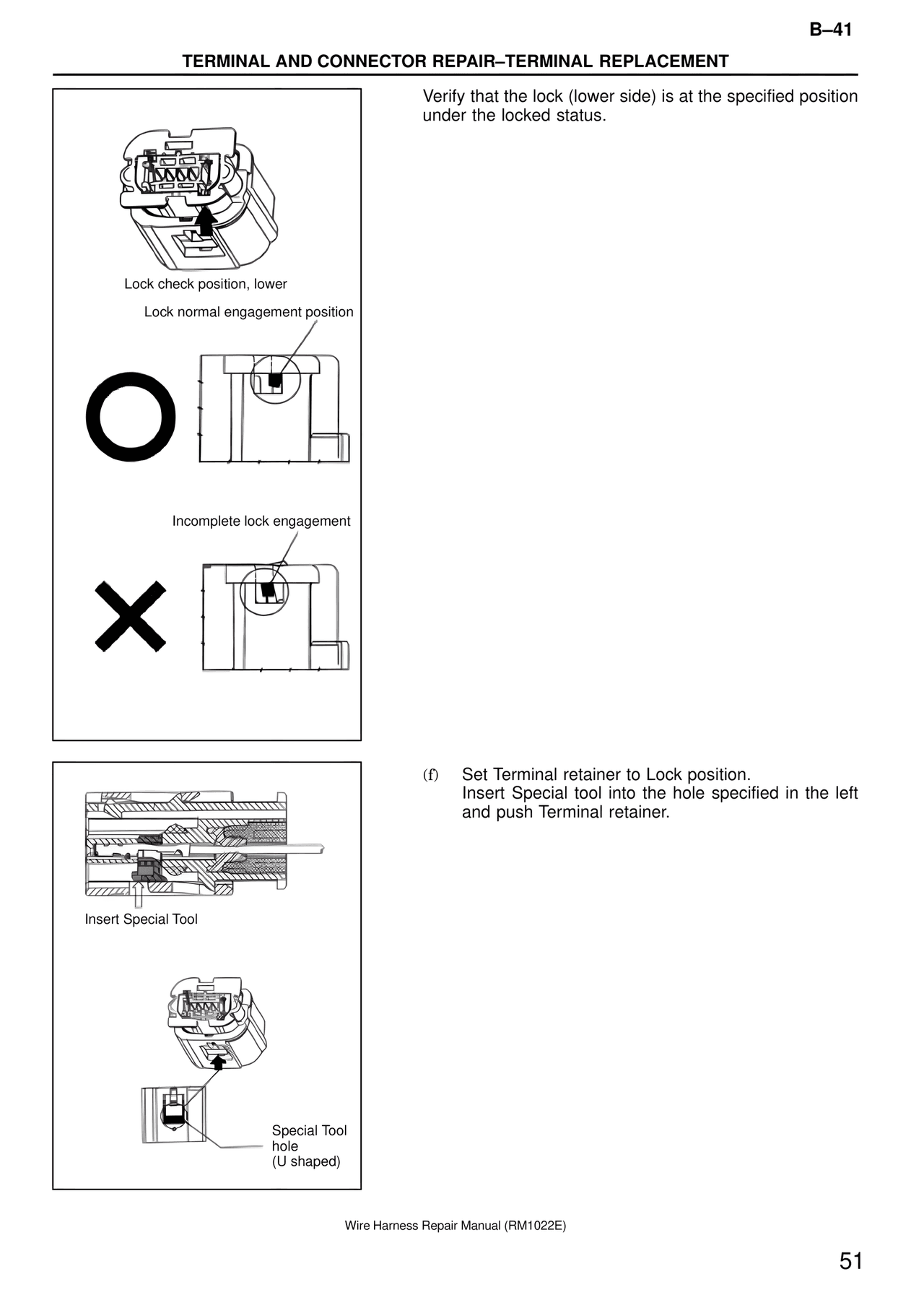

B–41 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Verify that the lock (lower side) is at the specified position under the locked status. Lock check position, lower Lock normal engagement position Incomplete lock engagement (f) Set Terminal retainer to Lock position. Insert Special tool into the hole specified in the left and push Terminal retainer. Insert Special Tool Special Tool hole (U shaped) Wire Harness Repair Manual (RM1022E) 51
