B–43

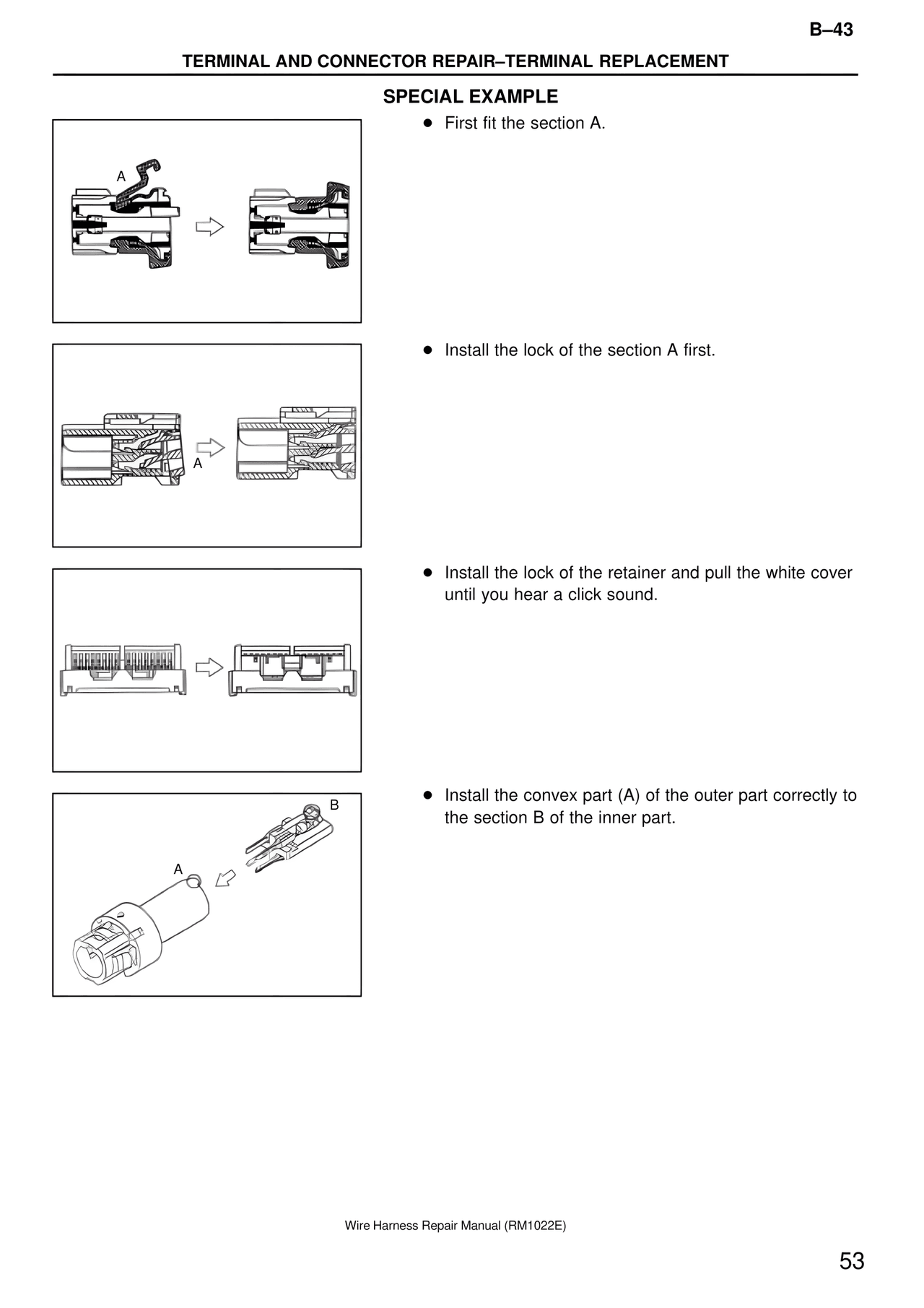

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

SPECIAL EXAMPLE

• First fit the section A.

A

• Install the lock of the section A first.

A

• Install the lock of the retainer and pull the white cover
until you hear a click sound.

B

A

• Install the convex part (A) of the outer part correctly to
the section B of the inner part.

Wire Harness Repair Manual (RM1022E)

53
