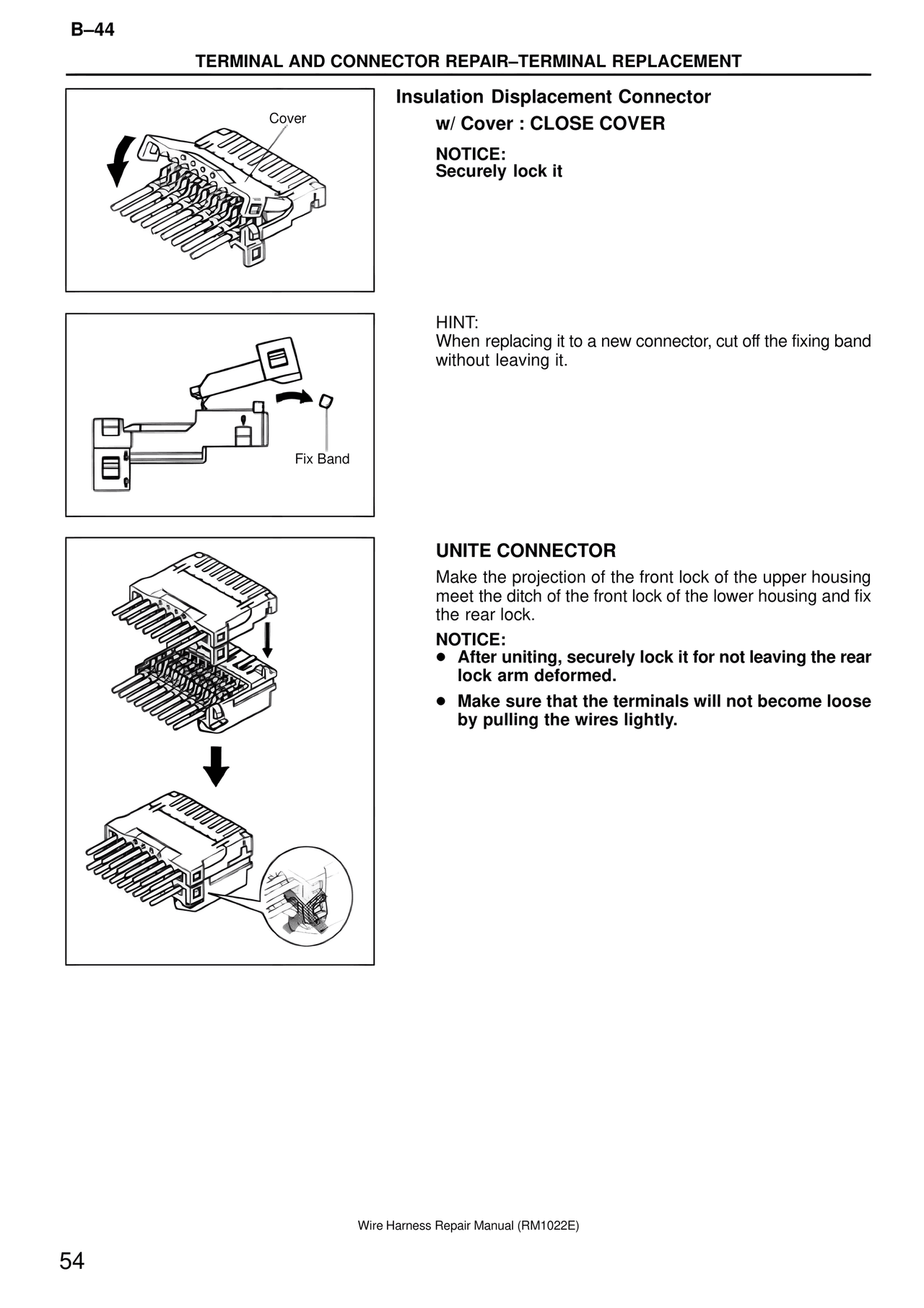

B–44

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

Cover

Insulation Displacement Connector

w/ Cover : CLOSE COVER

NOTICE:
Securely lock it

HINT:
When replacing it to a new connector, cut off the fixing band
without leaving it.

Fix Band

UNITE CONNECTOR
Make the projection of the front lock of the upper housing
meet the ditch of the front lock of the lower housing and fix
the rear lock.

NOTICE:
● After uniting, securely lock it for not leaving the rear
  lock arm deformed.
● Make sure that the terminals will not become loose
  by pulling the wires lightly.

Wire Harness Repair Manual (RM1022E)

54
