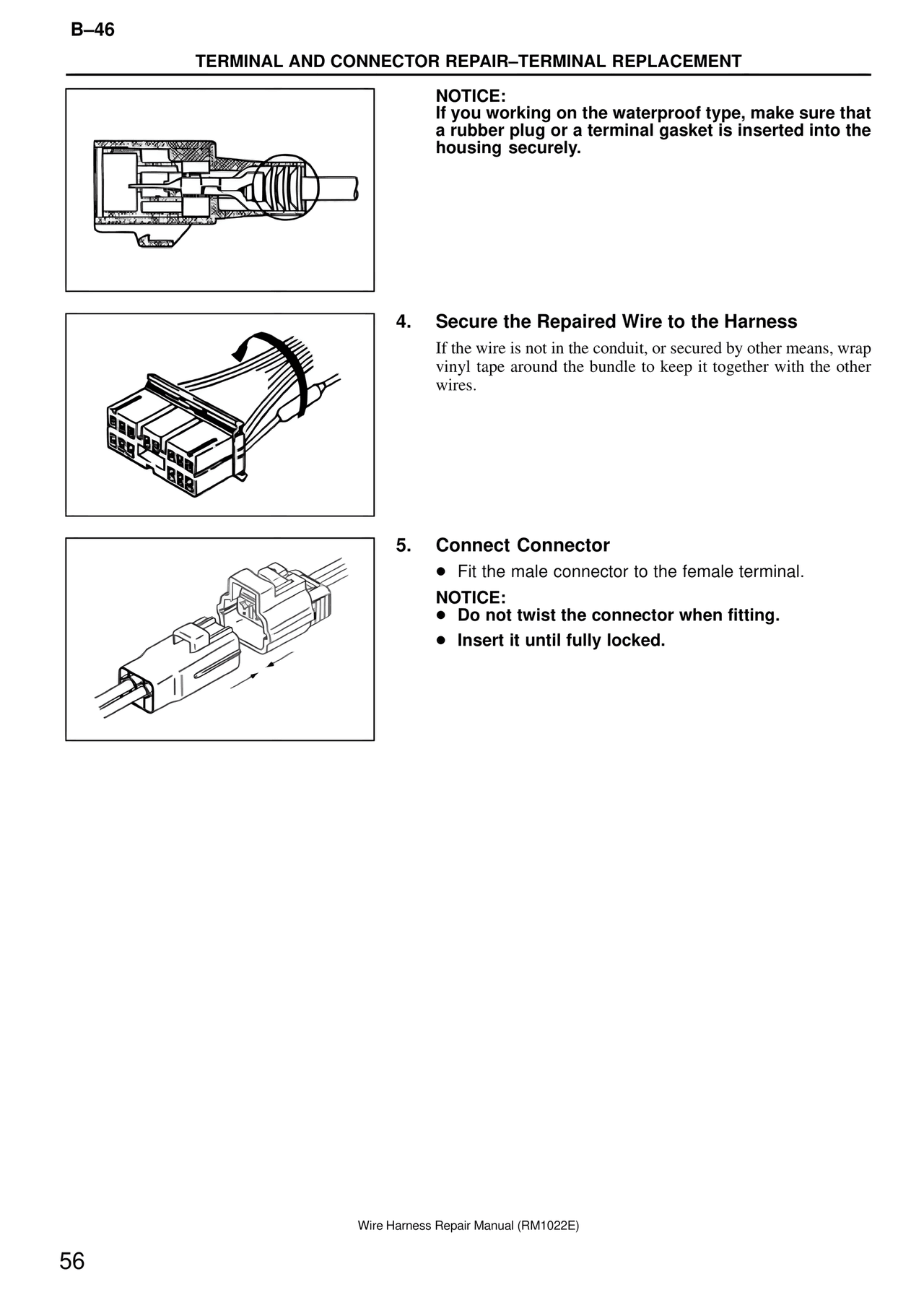

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
NOTICE:
If you working on the waterproof type, make sure that
a rubber plug or a terminal gasket is inserted into the
housing securely.
4. Secure the Repaired Wire to the Harness
If the wire is not in the conduit, or secured by other means, wrap
vinyl tape around the bundle to keep it together with the other
wires.
5. Connect Connector
● Fit the male connector to the female terminal.
NOTICE:
● Do not twist the connector when fitting.
● Insert it until fully locked.
