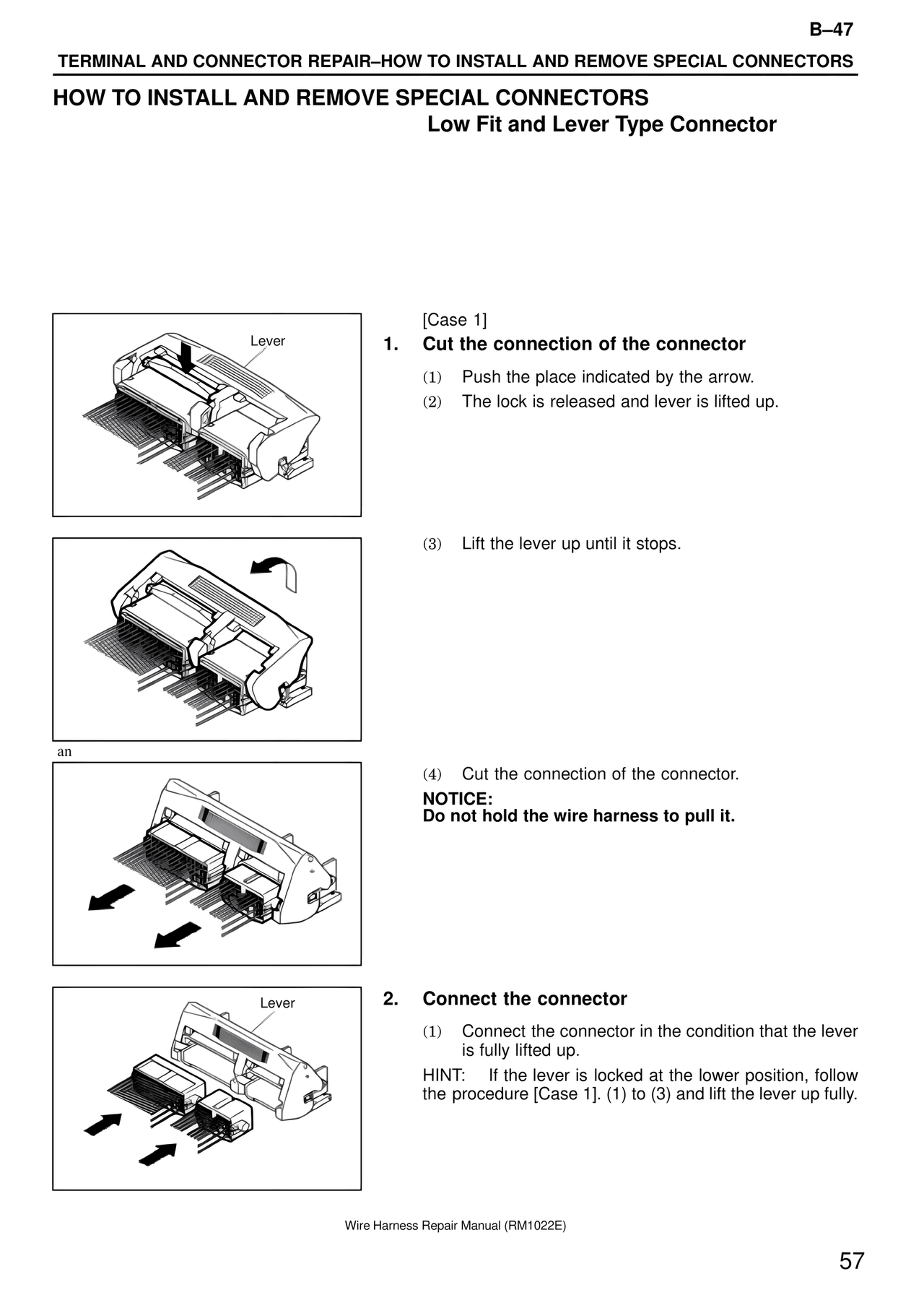

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS
HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS
Low Fit and Lever Type Connector

Lever

[Case 1]
1. Cut the connection of the connector
(1) Push the place indicated by the arrow.
(2) The lock is released and lever is lifted up.

(3) Lift the lever up until it stops.

an

(4) Cut the connection of the connector.
NOTICE:
Do not hold the wire harness to pull it.

Lever

2. Connect the connector
(1) Connect the connector in the condition that the lever is fully lifted up.
HINT: If the lever is locked at the lower position, follow the procedure [Case 1]. (1) to (3) and lift the lever up fully.
