B–49

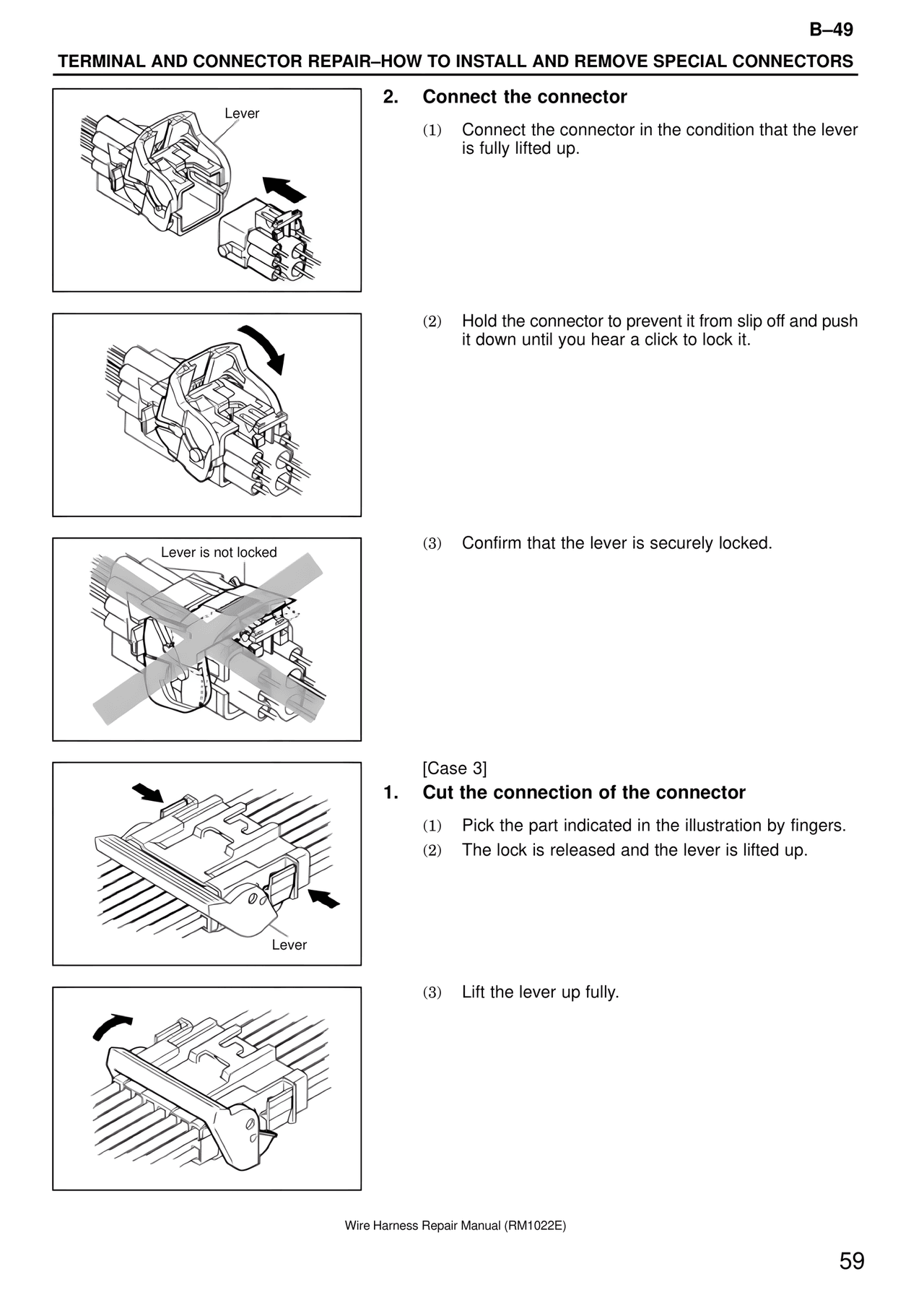

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS
Lever
2. Connect the connector
(1) Connect the connector in the condition that the lever is fully lifted up.
(2) Hold the connector to prevent it from slip off and push it down until you hear a click to lock it.
Lever is not locked
(3) Confirm that the lever is securely locked.
Lever
[Case 3]
1. Cut the connection of the connector
(1) Pick the part indicated in the illustration by fingers.
(2) The lock is released and the lever is lifted up.
(3) Lift the lever up fully.
Wire Harness Repair Manual (RM1022E)
59
