B–50

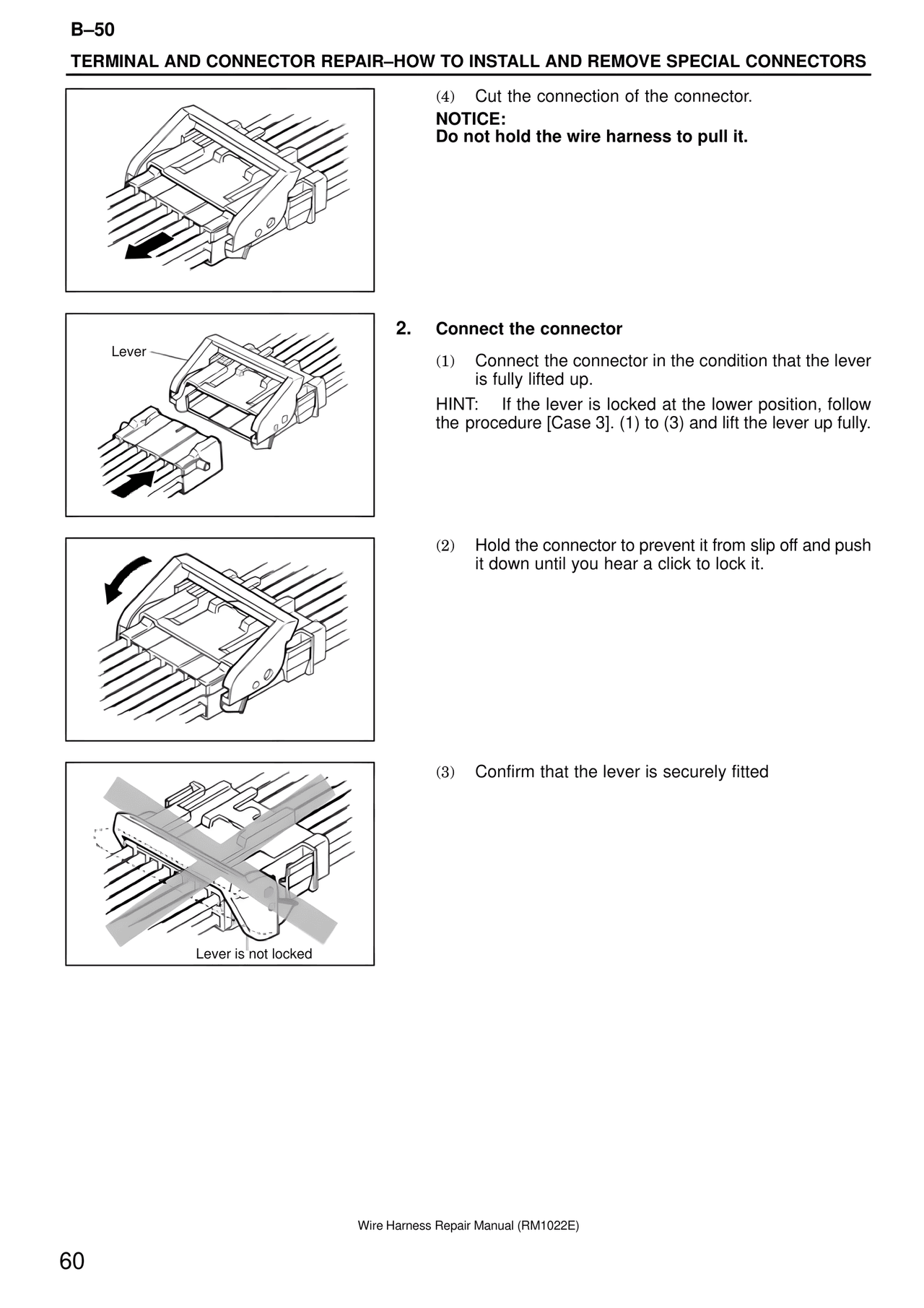

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS
(4) Cut the connection of the connector.
NOTICE:
Do not hold the wire harness to pull it.
Lever
2. Connect the connector
(1) Connect the connector in the condition that the lever is fully lifted up.
HINT: If the lever is locked at the lower position, follow the procedure [Case 3]. (1) to (3) and lift the lever up fully.
(2) Hold the connector to prevent it from slip off and push it down until you hear a click to lock it.
(3) Confirm that the lever is securely fitted
Lever is not locked
Wire Harness Repair Manual (RM1022E)
60
