B–52
TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS

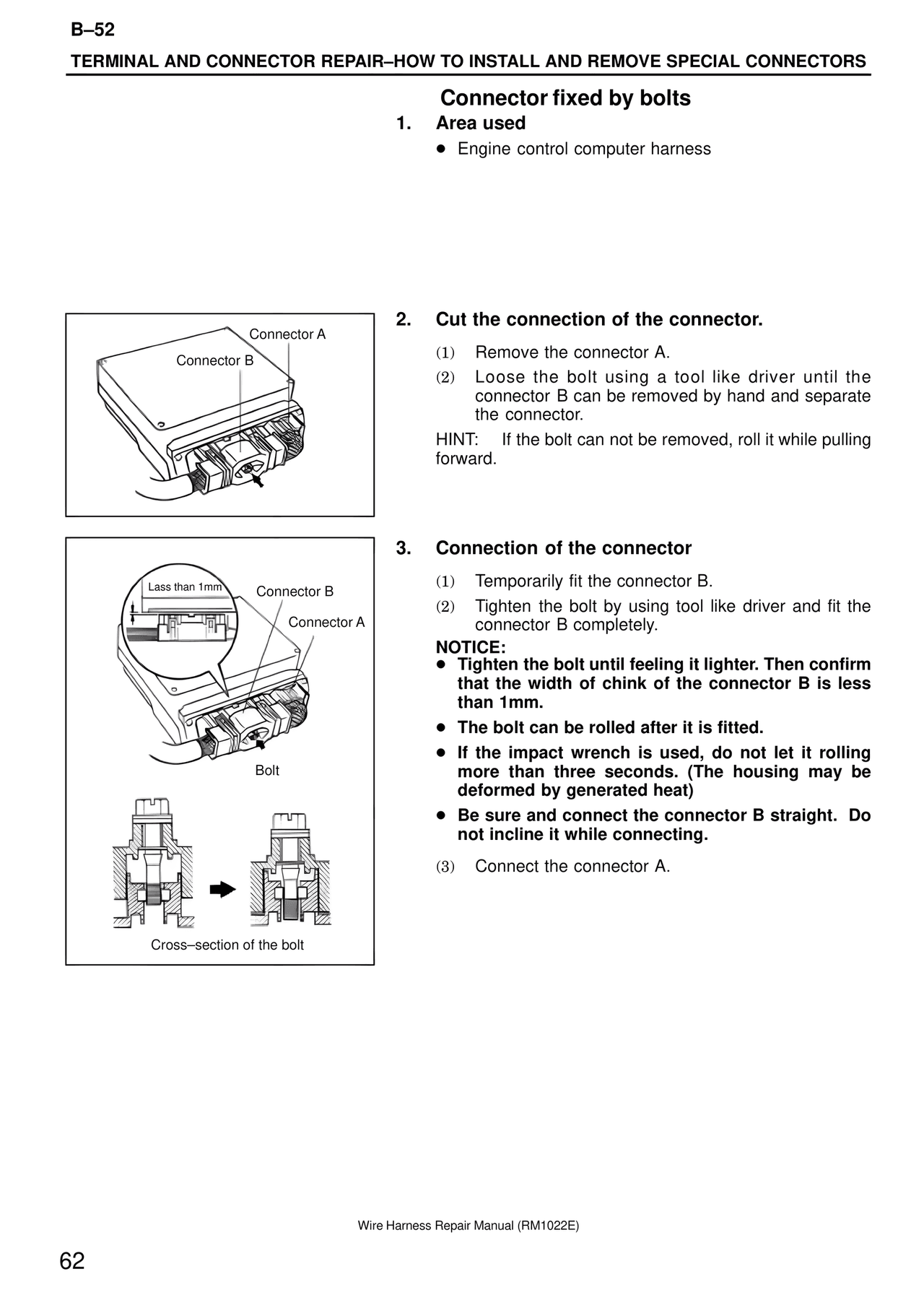

Connector fixed by bolts
1. Area used
● Engine control computer harness
Connector A
Connector B
2. Cut the connection of the connector.
(1) Remove the connector A.
(2) Loose the bolt using a tool like driver until the connector B can be removed by hand and separate the connector.
HINT: If the bolt can not be removed, roll it while pulling forward.
Lass than 1mm
Connector B
Connector A
Bolt
Cross–section of the bolt
3. Connection of the connector
(1) Temporarily fit the connector B.
(2) Tighten the bolt by using tool like driver and fit the connector B completely.
NOTICE:
● Tighten the bolt until feeling it lighter. Then confirm that the width of chink of the connector B is less than 1mm.
● The bolt can be rolled after it is fitted.
● If the impact wrench is used, do not let it rolling more than three seconds. (The housing may be deformed by generated heat)
● Be sure and connect the connector B straight. Do not incline it while connecting.
(3) Connect the connector A.
Wire Harness Repair Manual (RM1022E)
62
