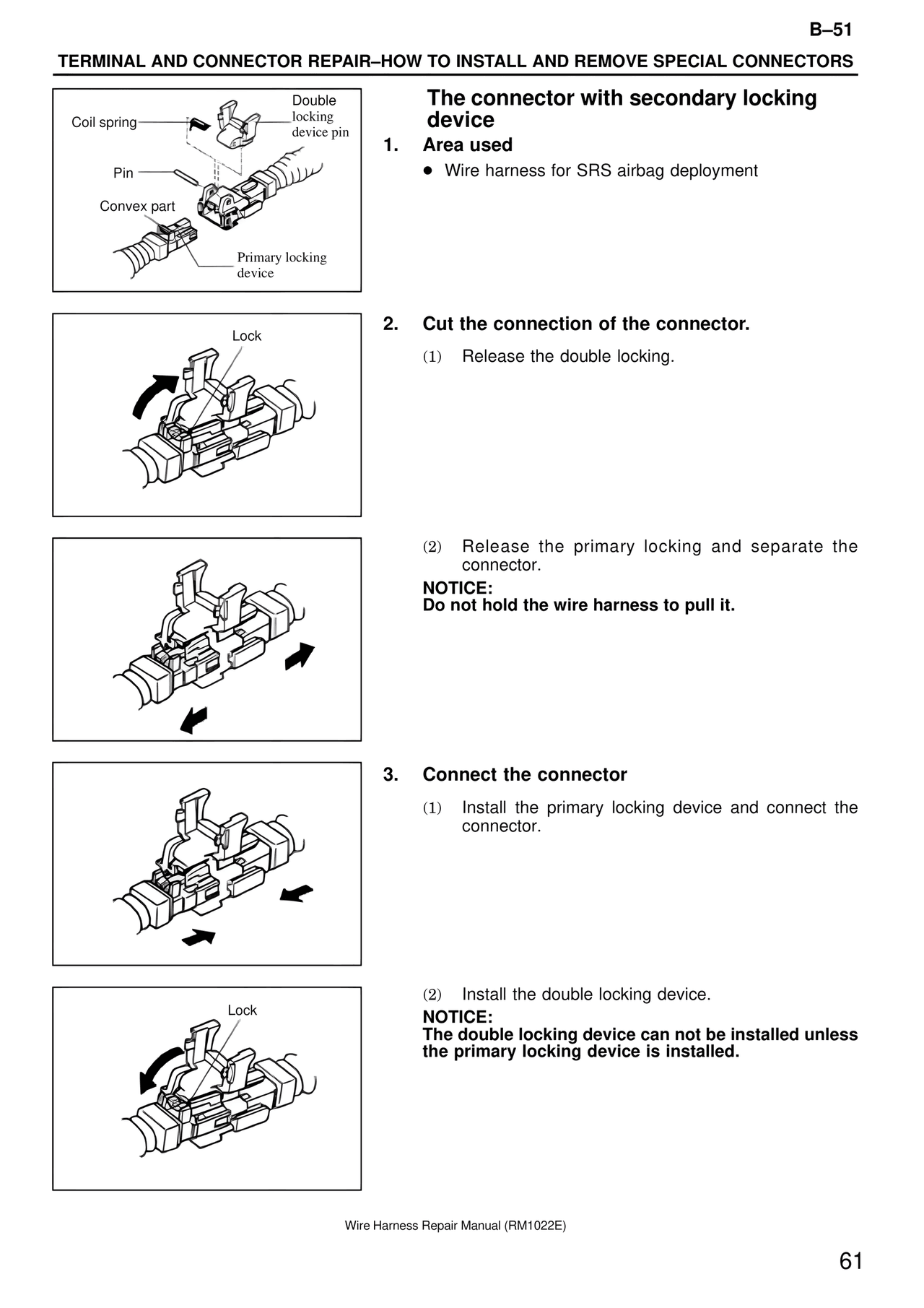

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS
Coil spring
Double locking device pin
Pin
Convex part
Primary locking device
The connector with secondary locking device
1. Area used
● Wire harness for SRS airbag deployment
Lock
2. Cut the connection of the connector.
(1) Release the double locking.
(2) Release the primary locking and separate the connector.
NOTICE:
Do not hold the wire harness to pull it.
3. Connect the connector
(1) Install the primary locking device and connect the connector.
Lock
(2) Install the double locking device.
NOTICE:
The double locking device can not be installed unless the primary locking device is installed.
