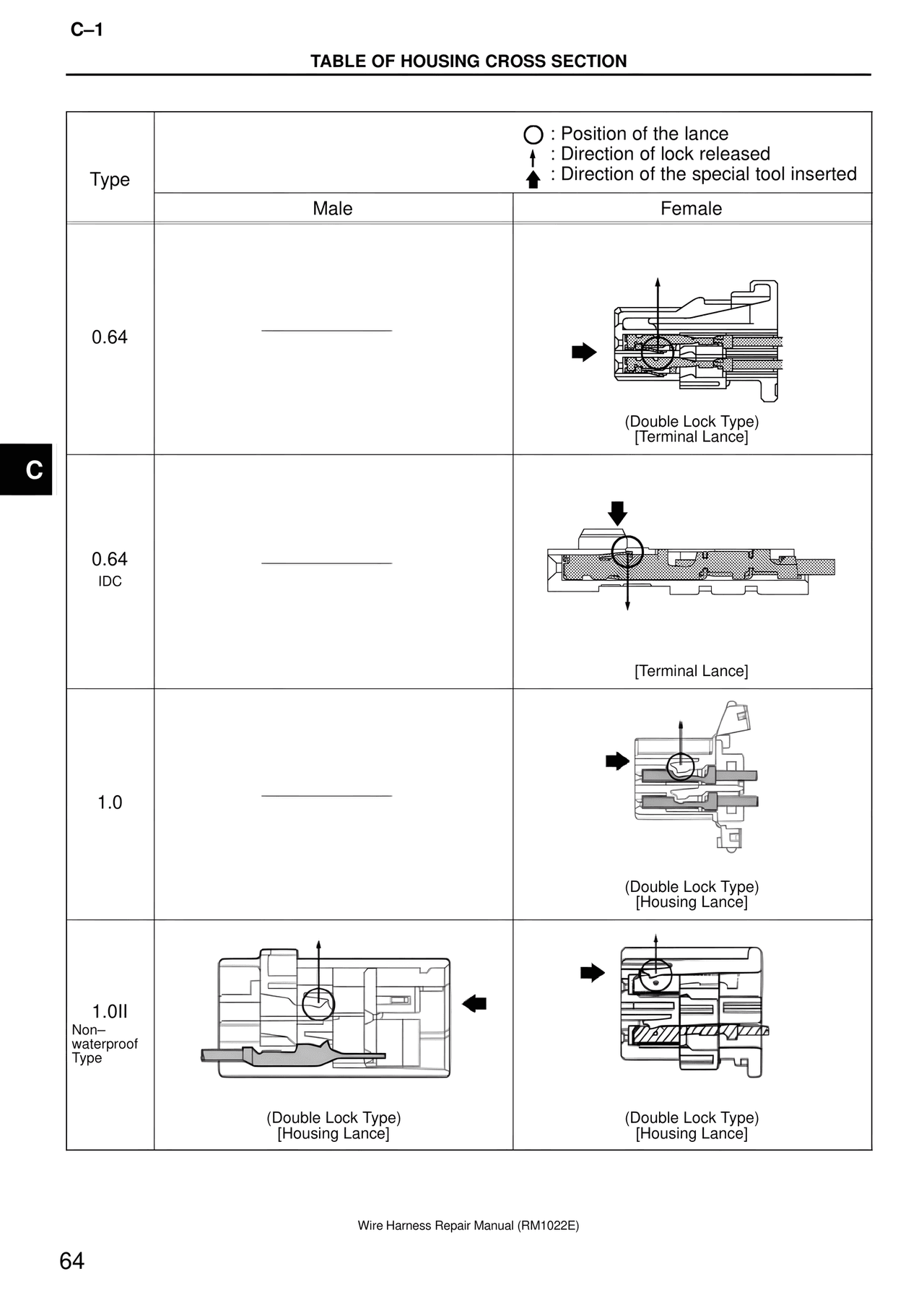

C–1 TABLE OF HOUSING CROSS SECTION O : Position of the lance : Direction of lock released : Direction of the special tool inserted Type Male Female 0.64 (Double Lock Type) [Terminal Lance] 0.64 IDC [Terminal Lance] 1.0 (Double Lock Type) [Housing Lance] 1.0II Non– waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] C Wire Harness Repair Manual (RM1022E) 64
