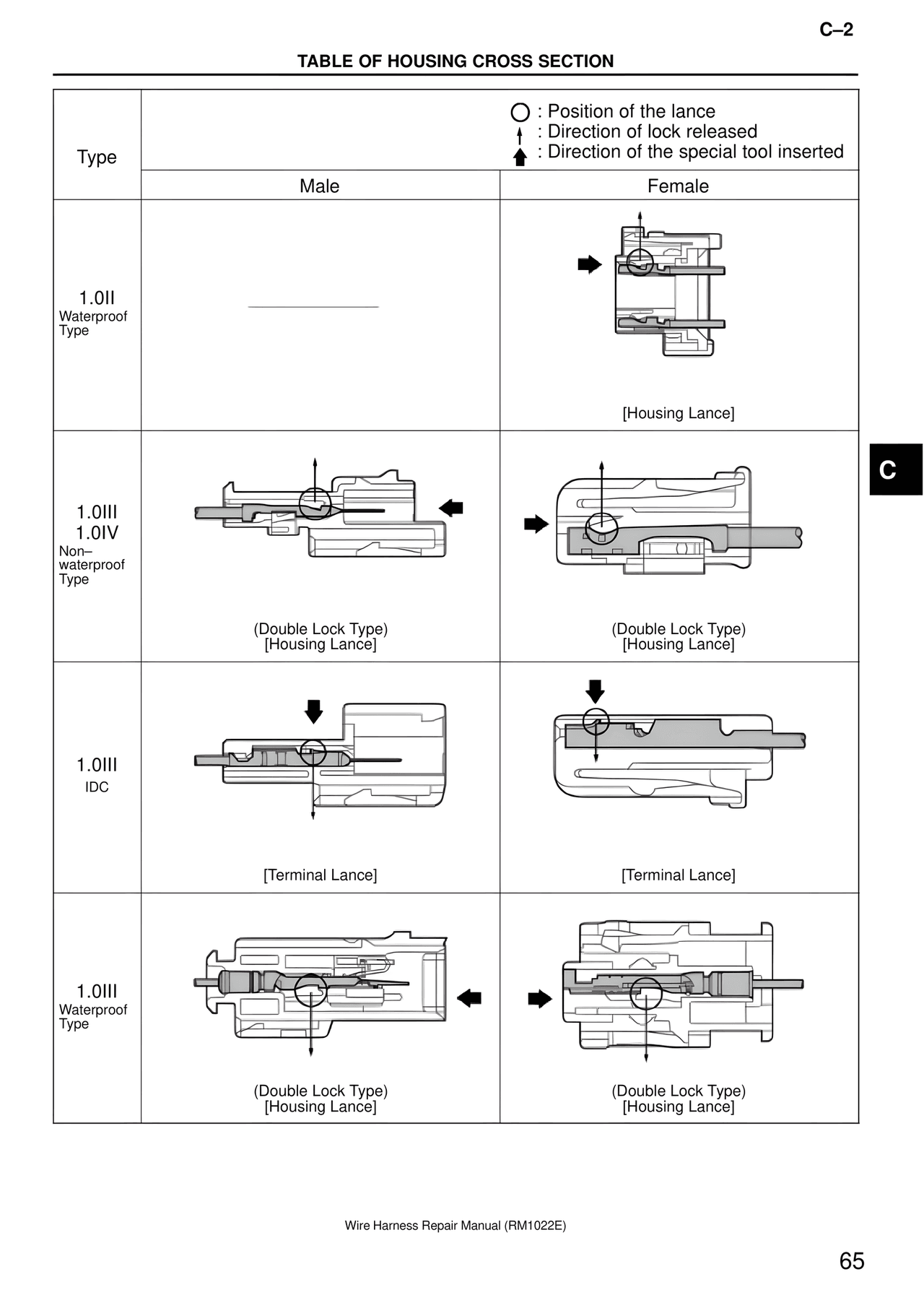

C–2 TABLE OF HOUSING CROSS SECTION ○ : Position of the lance ↕ : Direction of lock released ➤ : Direction of the special tool inserted Type Male Female 1.0II Waterproof Type [Housing Lance] 1.0III 1.0IV Non– waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] 1.0III IDC [Terminal Lance] [Terminal Lance] 1.0III Waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] C Wire Harness Repair Manual (RM1022E) 65
