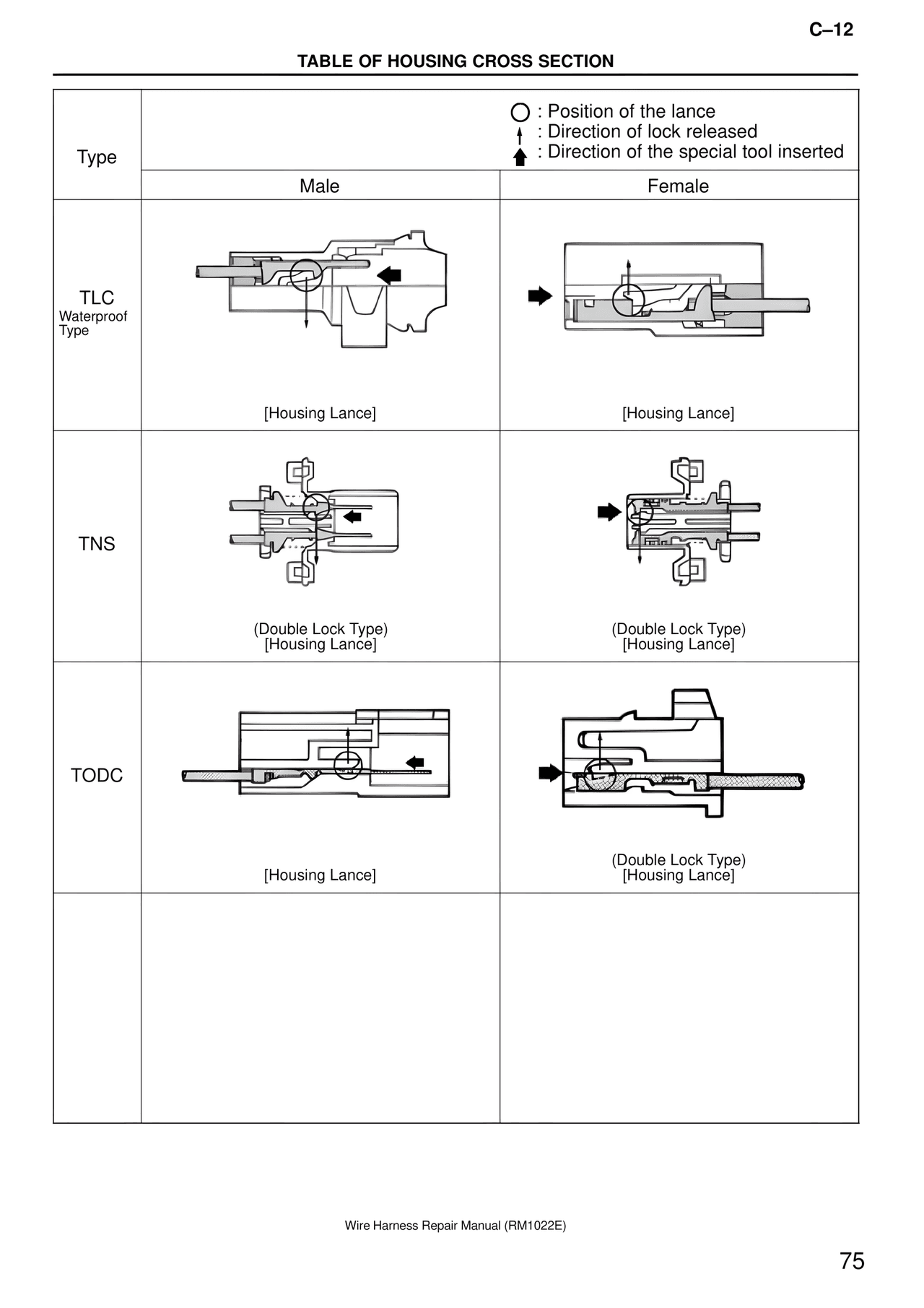

TABLE OF HOUSING CROSS SECTION

Type

○ : Position of the lance
↕ : Direction of lock released
➤ : Direction of the special tool inserted

Male                                    Female

TLC
Waterproof
Type

[Housing Lance]                         [Housing Lance]

TNS

(Double Lock Type)                      (Double Lock Type)
[Housing Lance]                         [Housing Lance]

TODC

[Housing Lance]                         (Double Lock Type)
                                        [Housing Lance]
