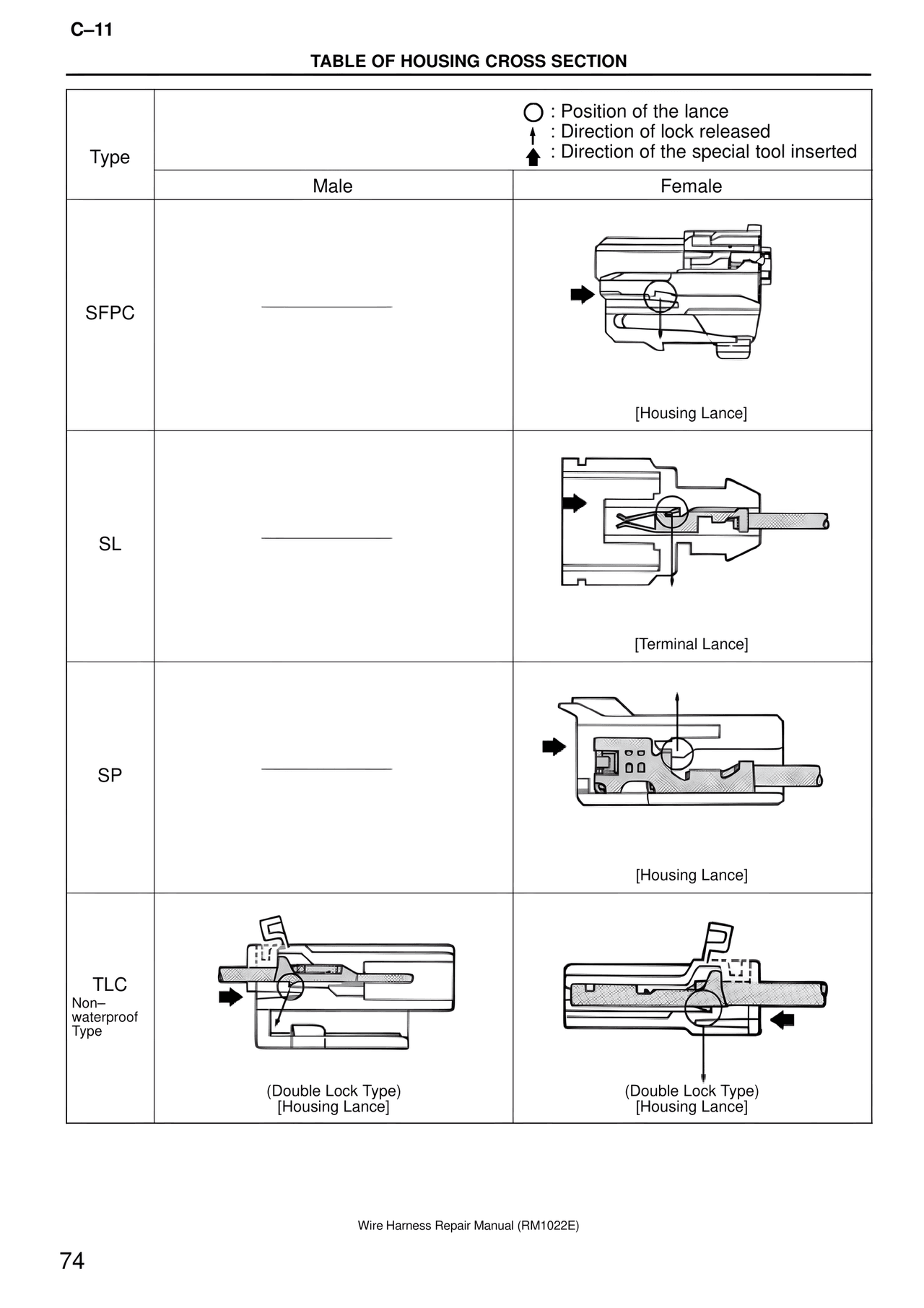

C–11 TABLE OF HOUSING CROSS SECTION Type ○ : Position of the lance ↑ : Direction of lock released ↑ : Direction of the special tool inserted Male Female SFPC [Housing Lance] SL [Terminal Lance] SP [Housing Lance] TLC Non– waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] Wire Harness Repair Manual (RM1022E) 74
