D–13

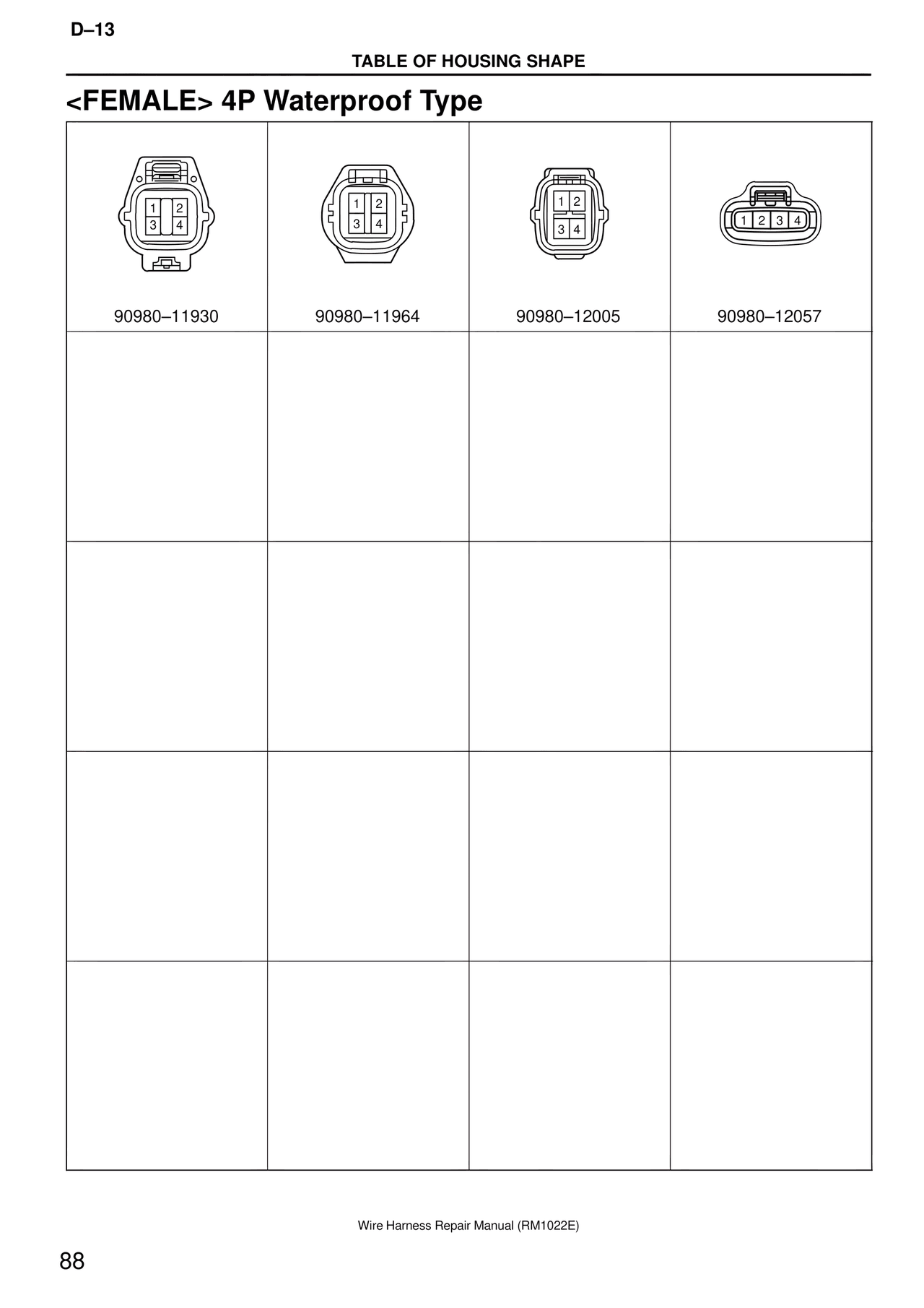

TABLE OF HOUSING SHAPE

<FEMALE> 4P Waterproof Type

1  2
3  4

90980–11930

1  2
3  4

90980–11964

1  2
3  4

90980–12005

1  2  3  4

90980–12057

Wire Harness Repair Manual (RM1022E)

88
