D–14

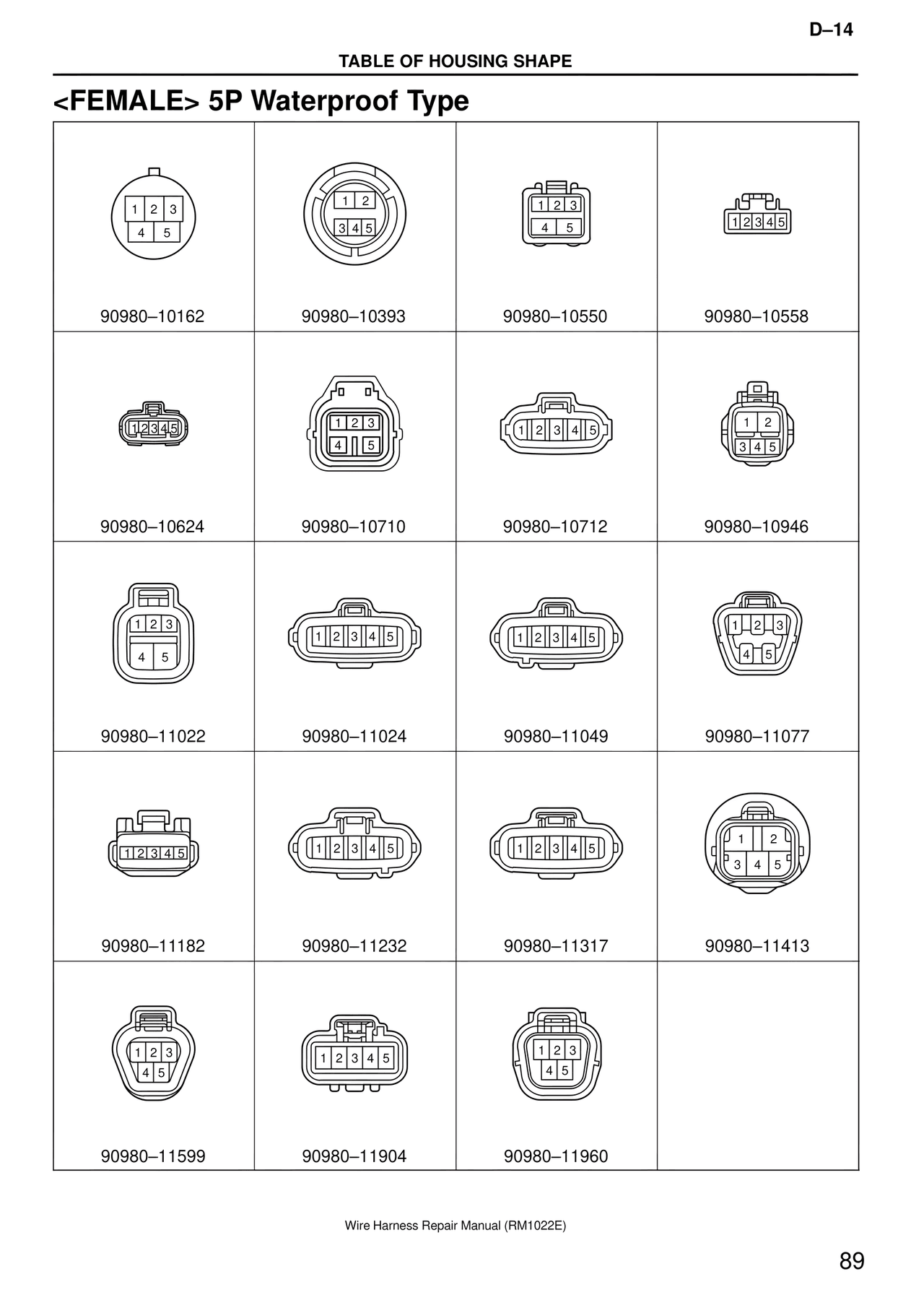

TABLE OF HOUSING SHAPE

<FEMALE> 5P Waterproof Type

1  2  3
4  5
90980–10162

1  2
3 4 5
90980–10393

1  2  3
4  5
90980–10550

1 2 3 4 5
90980–10558

1 2 3 4 5
90980–10624

1 2 3
4  5
90980–10710

1  2  3  4  5
90980–10712

1  2
3 4 5
90980–10946

1  2  3
4  5
90980–11022

1  2  3  4  5
90980–11024

1  2  3  4  5
90980–11049

1  2  3
4  5
90980–11077

1 2 3 4 5
90980–11182

1  2  3  4  5
90980–11232

1  2  3  4  5
90980–11317

1  2
3  4  5
90980–11413

1  2  3
4  5
90980–11599

1  2  3  4  5
90980–11904

1  2  3
4  5
90980–11960

Wire Harness Repair Manual (RM1022E)

89
