WH/Wire Harness — <female> 7P, 8P Waterproof Type, page 91

D–16

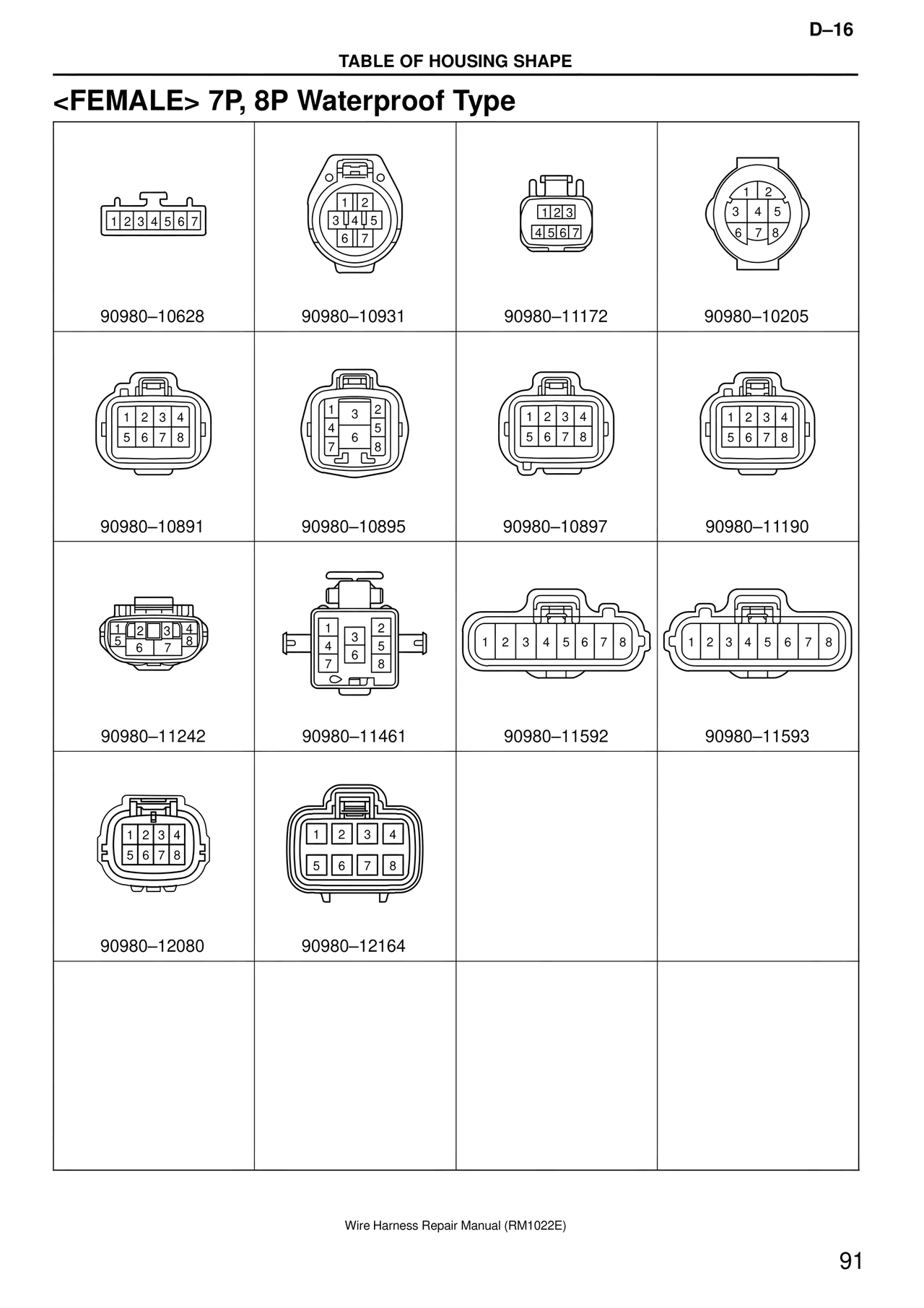

TABLE OF HOUSING SHAPE

<FEMALE> 7P, 8P Waterproof Type

1 2 3 4 5 6 7

90980–10628

1 2
3 4 5
6 7

90980–10931

1 2 3
4 5 6 7

90980–11172

1 2
3 4 5
6 7 8

90980–10205

1 2 3 4
5 6 7 8

90980–10891

1 3 2
4 5
6
7 8

90980–10895

1 2 3 4
5 6 7 8

90980–10897

1 2 3 4
5 6 7 8

90980–11190

1 2 3 4
6 7

90980–11242

1 3 2
4 5
6
7 8

90980–11461

1 2 3 4 5 6 7 8

90980–11592

1 2 3 4 5 6 7 8

90980–11593

1 2 3 4
5 6 7 8

90980–12080

1 2 3 4
5 6 7 8

90980–12164

Wire Harness Repair Manual (RM1022E)
