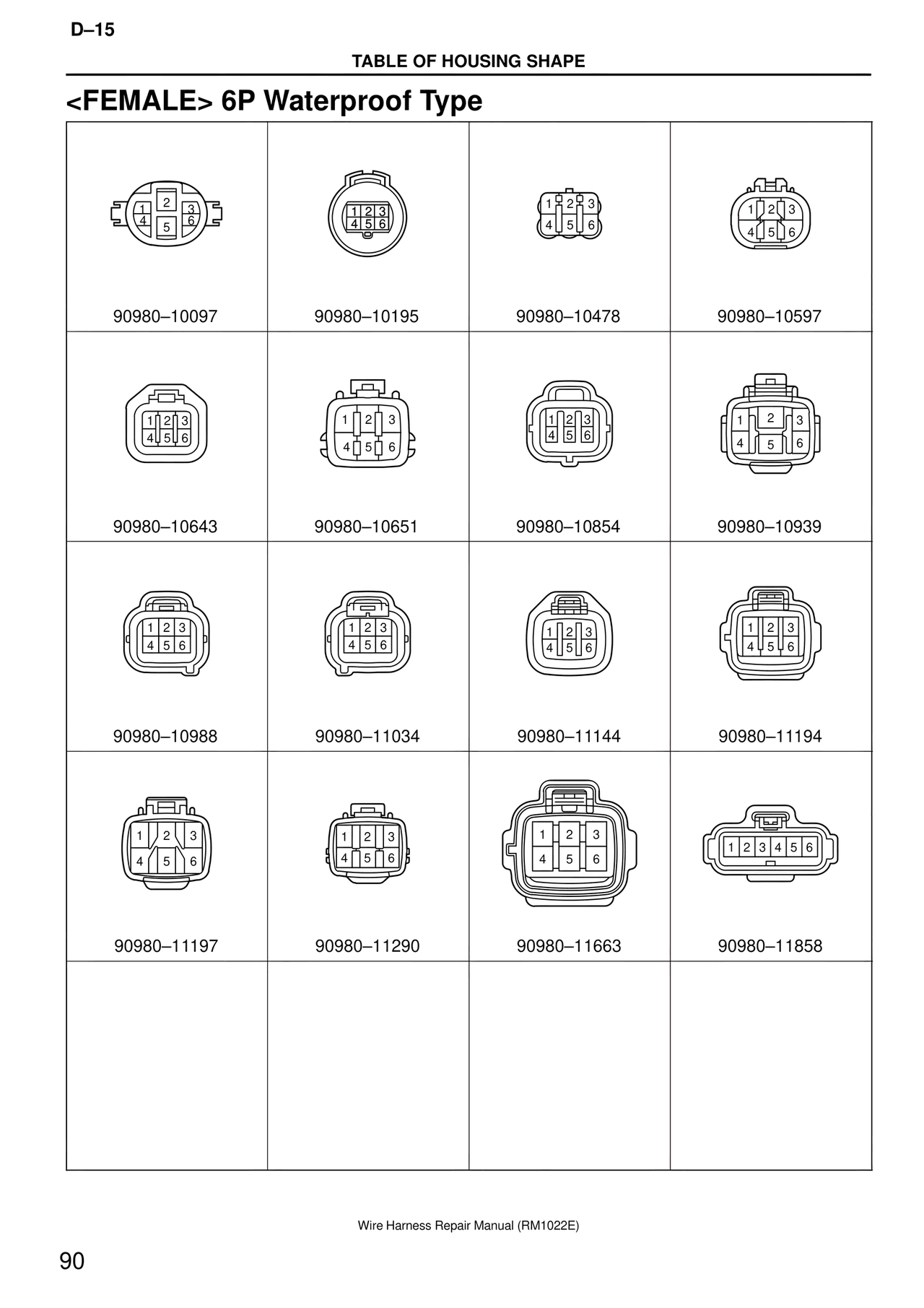

D–15

TABLE OF HOUSING SHAPE

<FEMALE> 6P Waterproof Type

1  2  3
4  5
90980–10097

1 2 3
4 5 6
90980–10195

1  2  3
4  5  6
90980–10478

1  2  3
4  5  6
90980–10597

1 2 3
4 5 6
90980–10643

1  2  3
4  5  6
90980–10651

1 2 3
4 5 6
90980–10854

1  2  3
4  5  6
90980–10939

1 2 3
4 5 6
90980–10988

1 2 3
4 5 6
90980–11034

1  2  3
4  5  6
90980–11144

1  2  3
4  5  6
90980–11194

1  2  3
4  5  6
90980–11197

1  2  3
4  5  6
90980–11290

1  2  3
4  5  6
90980–11663

1 2 3 4 5 6
90980–11858

Wire Harness Repair Manual (RM1022E)

90
