D–18

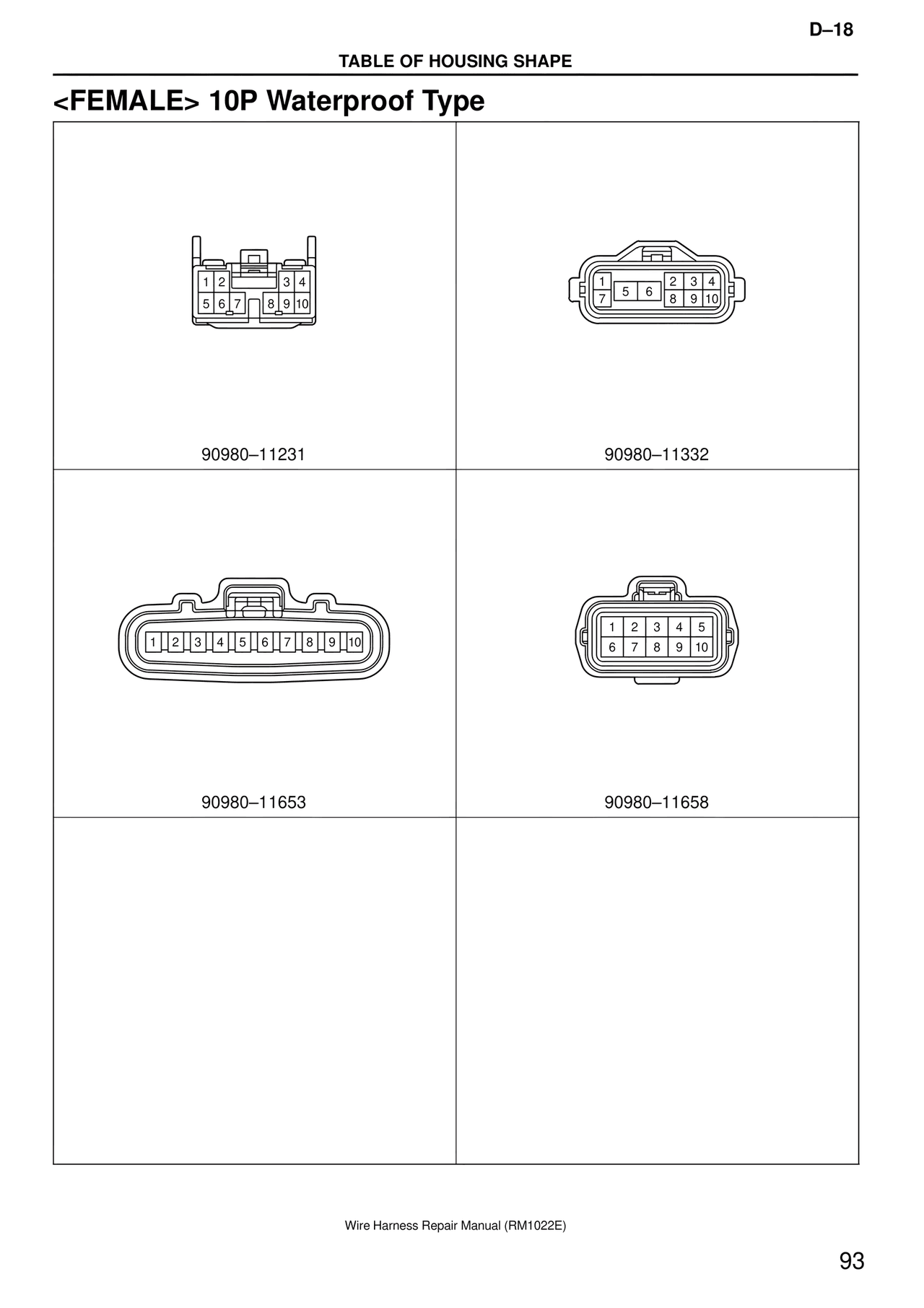

TABLE OF HOUSING SHAPE

<FEMALE> 10P Waterproof Type

1  2     3  4
5  6  7   8  9  10

90980–11231

1    2  3  4
7   5  6   8  9  10

90980–11332

1  2  3  4  5  6  7  8  9  10

90980–11653

1  2  3  4  5
6  7  8  9  10

90980–11658

Wire Harness Repair Manual (RM1022E)

93
