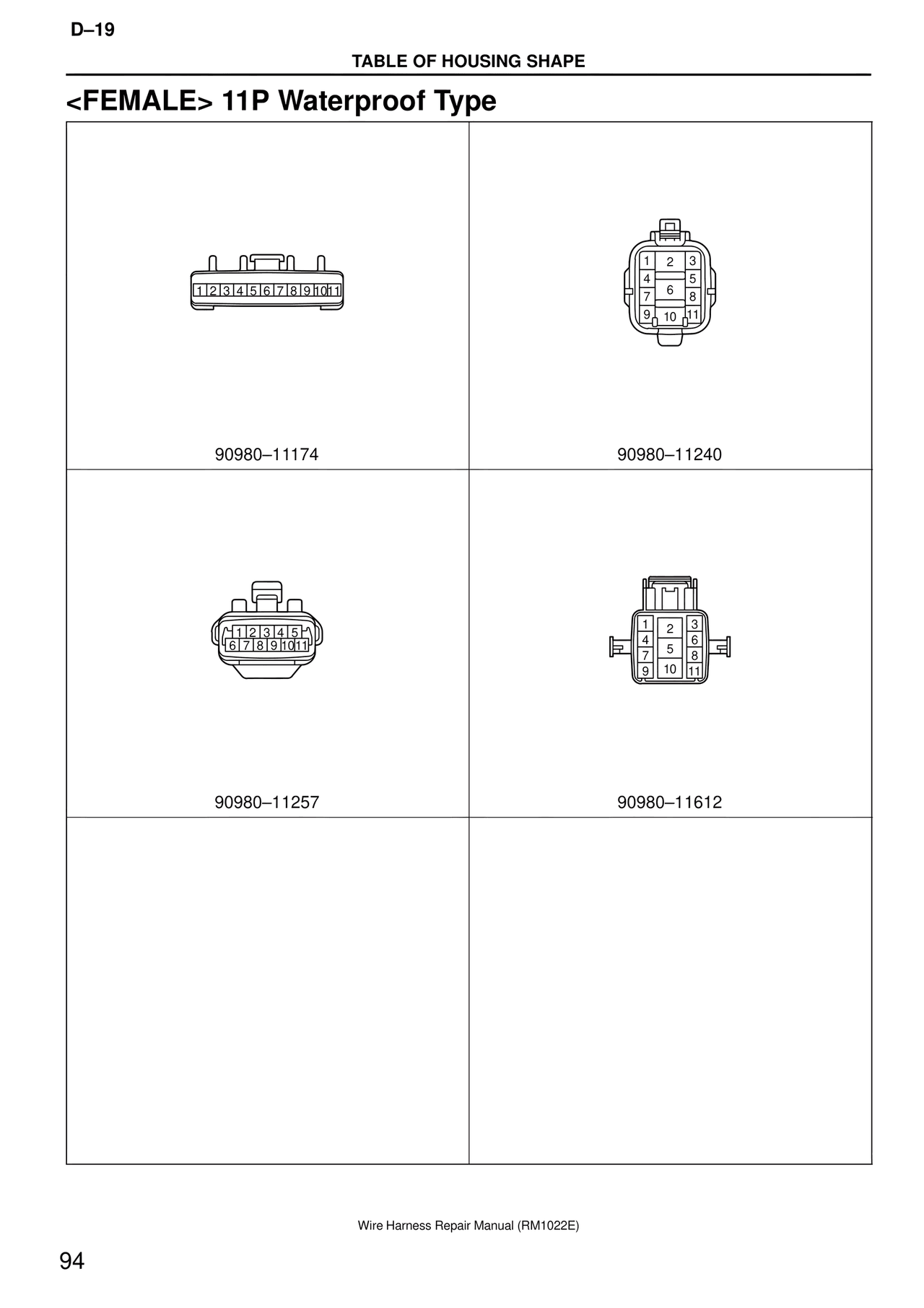

<FEMALE> 11P Waterproof Type — MK4 Supra Wire Harness, page 94
100%
D–19 TABLE OF HOUSING SHAPE <FEMALE> 11P Waterproof Type 1 2 3 4 5 6 7 8 9 10 11 90980–11174 1 2 3 4 5 6 7 8 9 10 11 90980–11240 1 2 3 4 5 6 7 8 9 10 11 90980–11257 1 2 3 4 6 7 5 8 9 10 11 90980–11612 Wire Harness Repair Manual (RM1022E) 94
