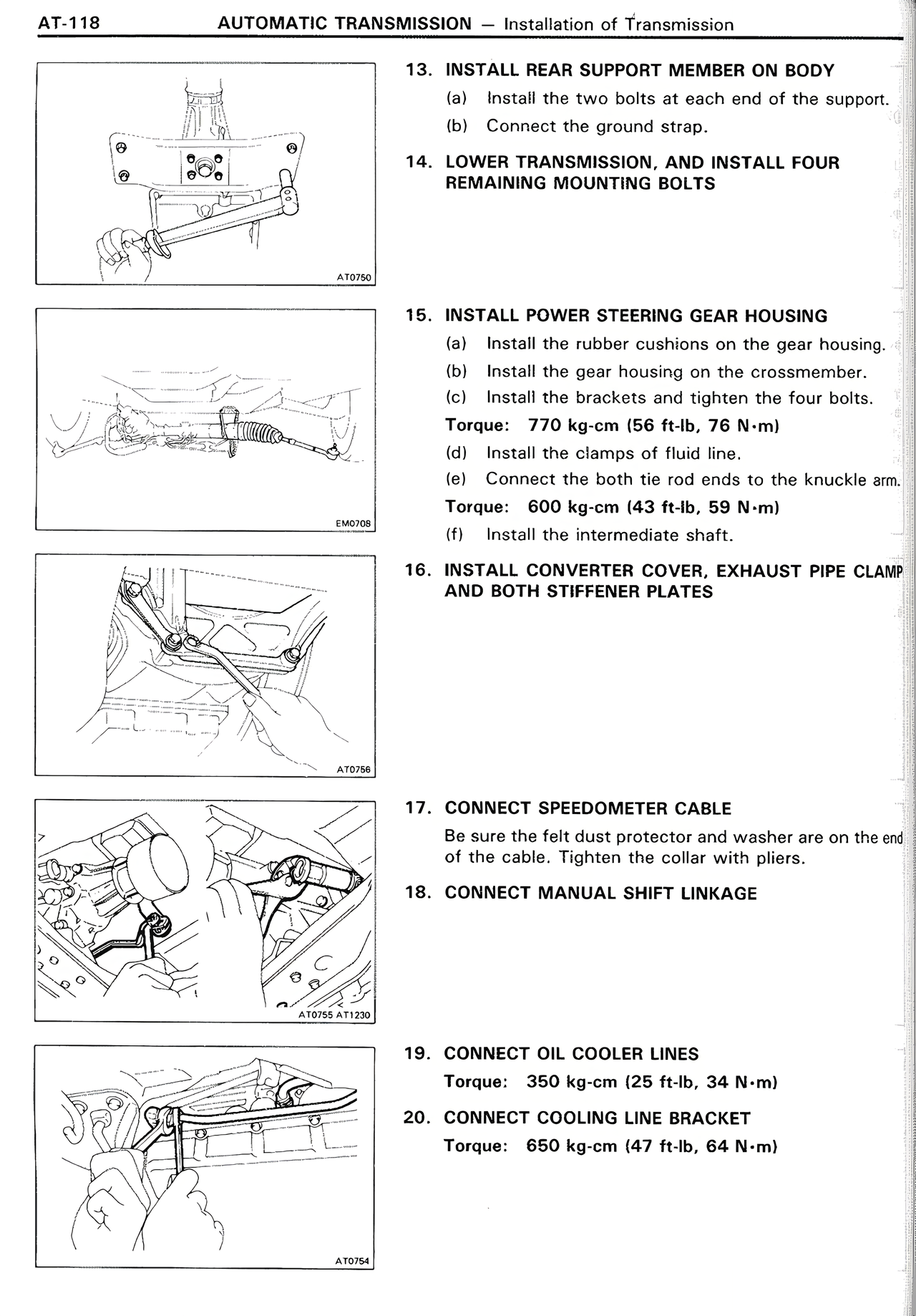

AT-118 AUTOMATIC TRANSMISSION — Installation of Transmission
13. INSTALL REAR SUPPORT MEMBER ON BODY
(a) Install the two bolts at each end of the support.
(b) Connect the ground strap.
14. LOWER TRANSMISSION, AND INSTALL FOUR
REMAINING MOUNTING BOLTS
15. INSTALL POWER STEERING GEAR HOUSING
(a) Install the rubber cushions on the gear housing.
(b) Install the gear housing on the crossmember.
(c) Install the brackets and tighten the four bolts.
Torque: 770 kg-cm (56 ft-lb, 76 N·m)
(d) Install the clamps of fluid line.
(e) Connect the both tie rod ends to the knuckle arm.
Torque: 600 kg-cm (43 ft-lb, 59 N·m)
(f) Install the intermediate shaft.
16. INSTALL CONVERTER COVER, EXHAUST PIPE CLAMP
AND BOTH STIFFENER PLATES
17. CONNECT SPEEDOMETER CABLE
Be sure the felt dust protector and washer are on the end
of the cable. Tighten the collar with pliers.
18. CONNECT MANUAL SHIFT LINKAGE
19. CONNECT OIL COOLER LINES
Torque: 350 kg-cm (25 ft-lb, 34 N·m)
20. CONNECT COOLING LINE BRACKET
Torque: 650 kg-cm (47 ft-lb, 64 N·m)
