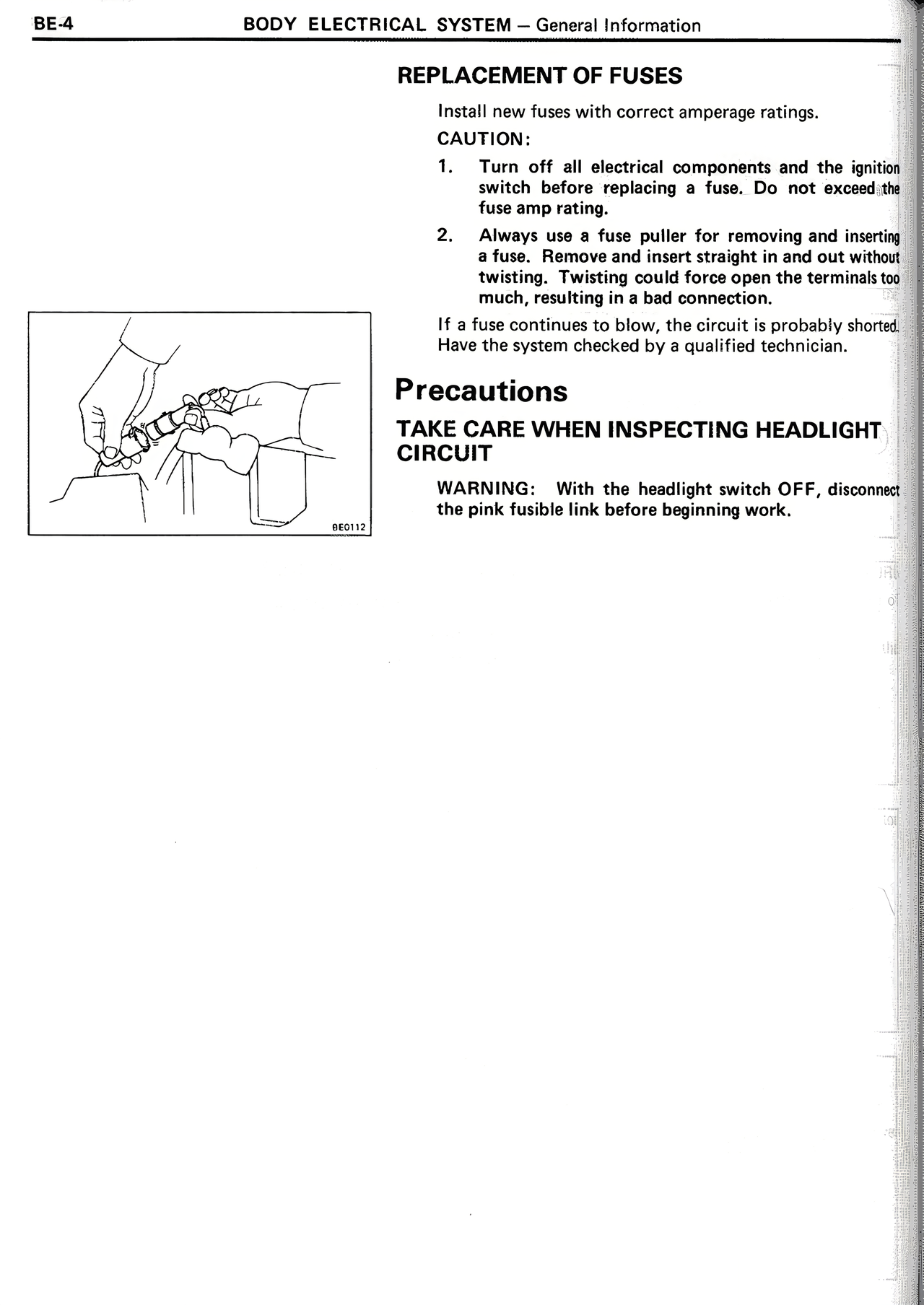

REPLACEMENT OF FUSES
Install new fuses with correct amperage ratings.
CAUTION:
1. Turn off all electrical components and the ignition switch before replacing a fuse. Do not exceed the fuse amp rating.
2. Always use a fuse puller for removing and inserting a fuse. Remove and insert straight in and out without twisting. Twisting could force open the terminals too much, resulting in a bad connection.
If a fuse continues to blow, the circuit is probably shorted. Have the system checked by a qualified technician.
Precautions
TAKE CARE WHEN INSPECTING HEADLIGHT CIRCUIT
WARNING: With the headlight switch OFF, disconnect the pink fusible link before beginning work.
