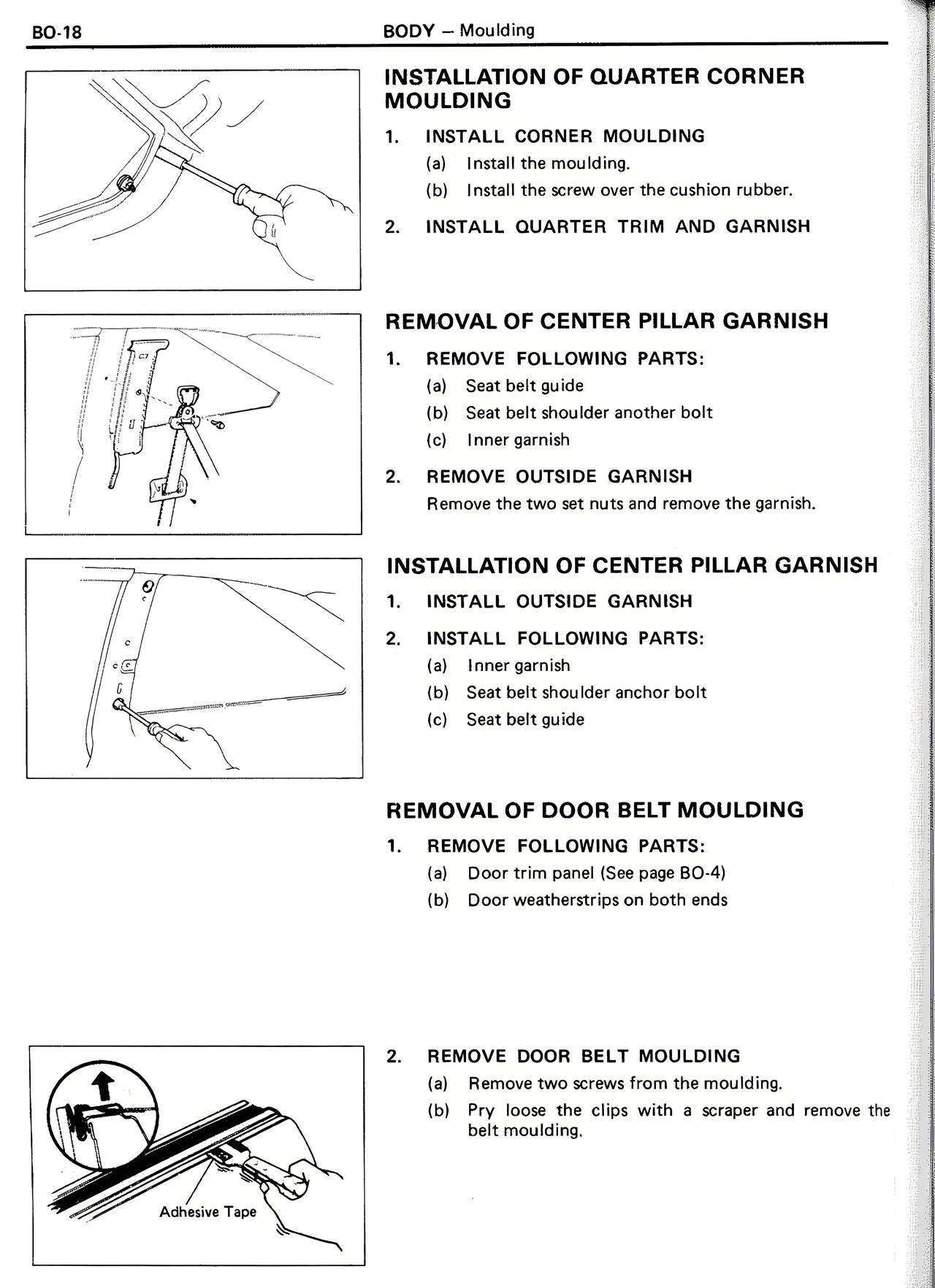

INSTALLATION OF QUARTER CORNER
MOULDING
1. INSTALL CORNER MOULDING
(a) Install the moulding.
(b) Install the screw over the cushion rubber.
2. INSTALL QUARTER TRIM AND GARNISH
REMOVAL OF CENTER PILLAR GARNISH
1. REMOVE FOLLOWING PARTS:
(a) Seat belt guide
(b) Seat belt shoulder another bolt
(c) Inner garnish
2. REMOVE OUTSIDE GARNISH
Remove the two set nuts and remove the garnish.
INSTALLATION OF CENTER PILLAR GARNISH
1. INSTALL OUTSIDE GARNISH
2. INSTALL FOLLOWING PARTS:
(a) Inner garnish
(b) Seat belt shoulder anchor bolt
(c) Seat belt guide
REMOVAL OF DOOR BELT MOULDING
1. REMOVE FOLLOWING PARTS:
(a) Door trim panel (See page BO-4)
(b) Door weatherstrips on both ends
2. REMOVE DOOR BELT MOULDING
(a) Remove two screws from the moulding.
(b) Pry loose the clips with a scraper and remove the
belt moulding.
Adhesive Tape
