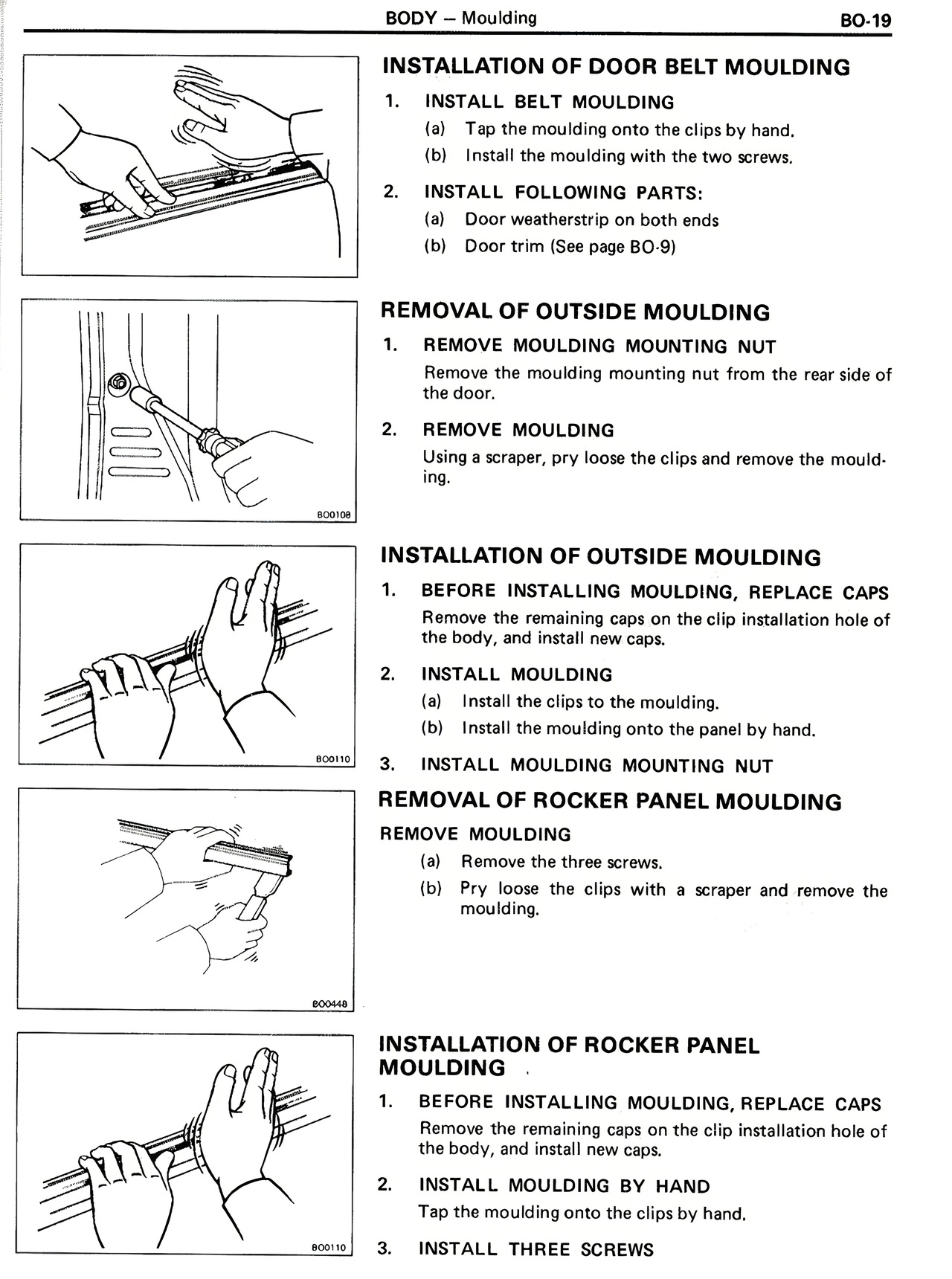

INSTALLATION OF DOOR BELT MOULDING 1. INSTALL BELT MOULDING (a) Tap the moulding onto the clips by hand. (b) Install the moulding with the two screws. 2. INSTALL FOLLOWING PARTS: (a) Door weatherstrip on both ends (b) Door trim (See page BO-9) REMOVAL OF OUTSIDE MOULDING 1. REMOVE MOULDING MOUNTING NUT Remove the moulding mounting nut from the rear side of the door. 2. REMOVE MOULDING Using a scraper, pry loose the clips and remove the moulding. INSTALLATION OF OUTSIDE MOULDING 1. BEFORE INSTALLING MOULDING, REPLACE CAPS Remove the remaining caps on the clip installation hole of the body, and install new caps. 2. INSTALL MOULDING (a) Install the clips to the moulding. (b) Install the moulding onto the panel by hand. 3. INSTALL MOULDING MOUNTING NUT REMOVAL OF ROCKER PANEL MOULDING REMOVE MOULDING (a) Remove the three screws. (b) Pry loose the clips with a scraper and remove the moulding. INSTALLATION OF ROCKER PANEL MOULDING 1. BEFORE INSTALLING MOULDING, REPLACE CAPS Remove the remaining caps on the clip installation hole of the body, and install new caps. 2. INSTALL MOULDING BY HAND Tap the moulding onto the clips by hand. 3. INSTALL THREE SCREWS
