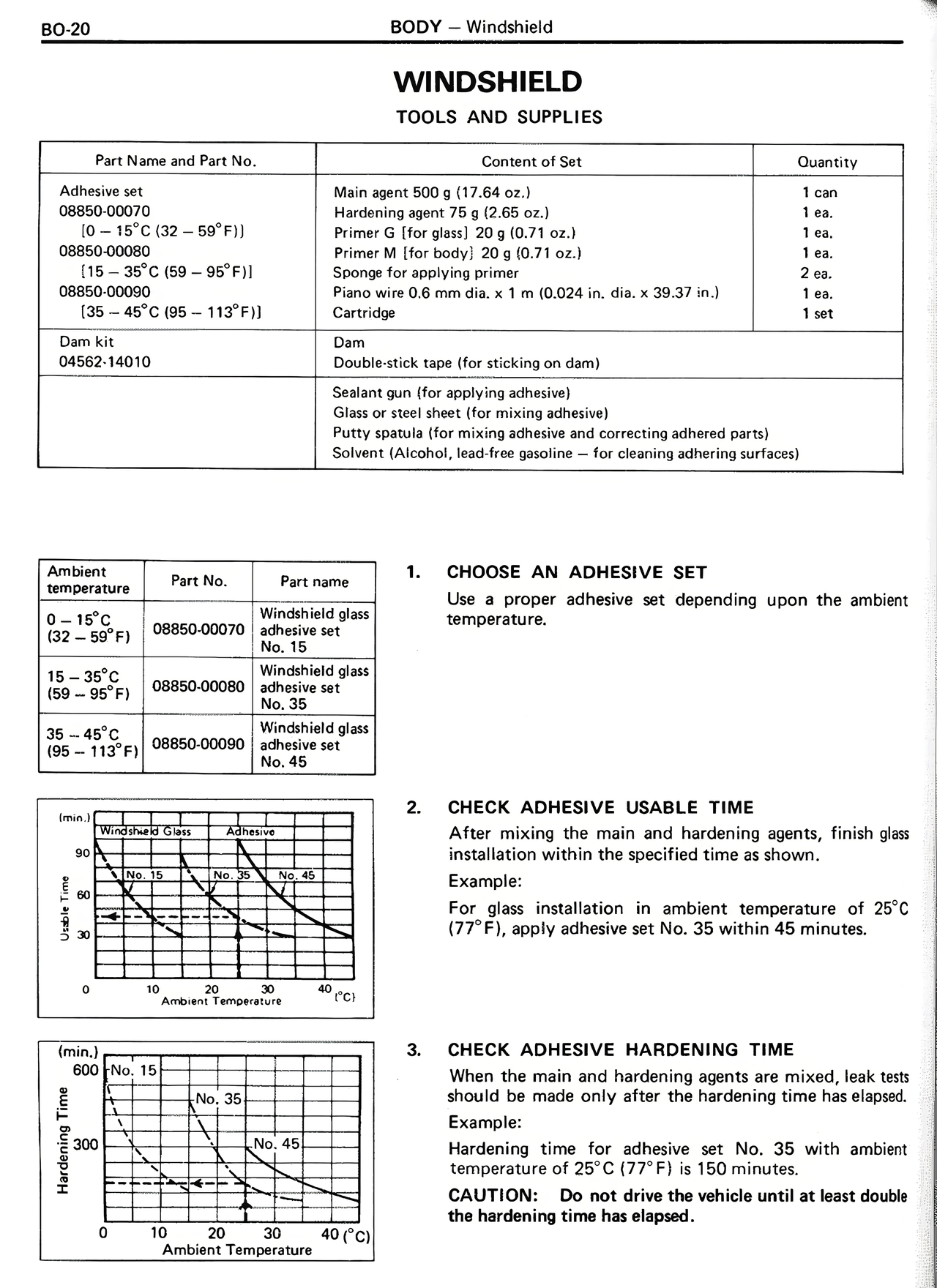

WINDSHIELD TOOLS AND SUPPLIES Part Name and Part No. | Content of Set | Quantity Adhesive set 08850-00070 | Main agent 500 g (17.64 oz.) | 1 can [0 - 15°C (32 - 59°F)] | Hardening agent 75 g (2.65 oz.) | 1 ea. | Primer G (for glass) 20 g (0.71 oz.) | 1 ea. 08850-00080 | Primer M (for body) 20 g (0.71 oz.) | 1 ea. [15 - 35°C (59 - 95°F)] | Sponge for applying primer | 2 ea. 08850-00090 | Piano wire 0.6 mm dia. x 1 m (0.024 in. dia. x 39.37 in.) | 1 ea. [36 - 45°C (95 - 113°F)] | Cartridge | 1 ea. Dam kit 04562-14010 | Dam | 1 set | Double-stick tape (for sticking on dam) | Sealant gun (for applying adhesive) | Glass or steel sheet (for mixing adhesive) | Putty spatula (for mixing adhesive and correcting adhered parts) | Solvent (Alcohol, lead-free gasoline — for cleaning adhering surfaces) Ambient temperature | Part No. | Part name 0 - 15°C (32 - 59°F) | 08850-00070 | Windshield glass adhesive set No. 15 15 - 35°C (59 - 95°F) | 08850-00080 | Windshield glass adhesive set No. 35 36 - 45°C (95 - 113°F) | 08850-00090 | Windshield glass adhesive set No. 45 1. CHOOSE AN ADHESIVE SET Use a proper adhesive set depending upon the ambient temperature. 2. CHECK ADHESIVE USABLE TIME After mixing the main and hardening agents, finish glass installation within the specified time as shown. Example: For glass installation in ambient temperature of 25°C (77°F), apply adhesive set No. 35 within 45 minutes. 3. CHECK ADHESIVE HARDENING TIME When the main and hardening agents are mixed, leak tests should be made only after the hardening time has elapsed. Example: Hardening time for adhesive set No. 35 with ambient temperature of 25°C (77°F) is 150 minutes. CAUTION: Do not drive the vehicle until at least double the hardening time has elapsed.
