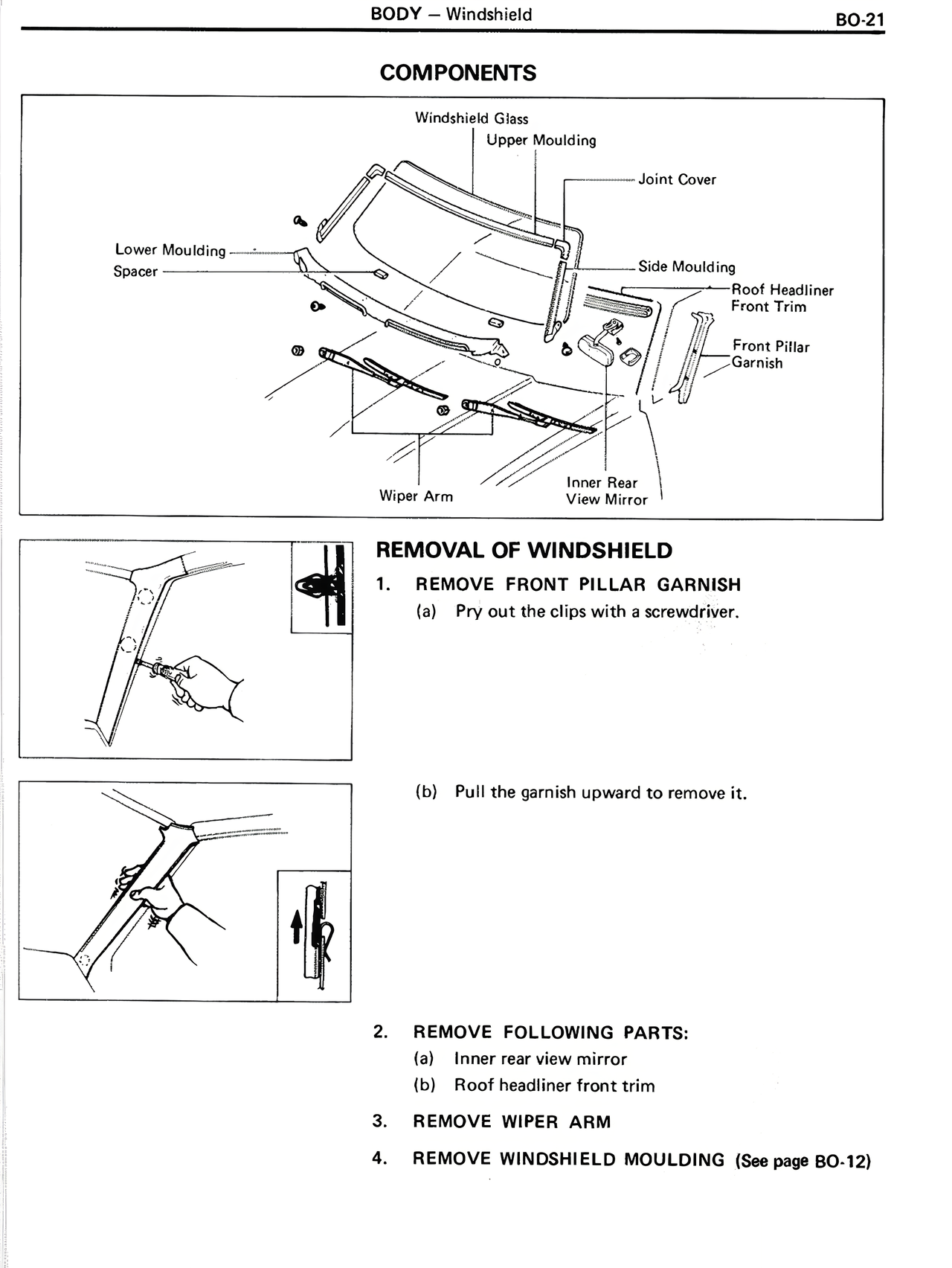

COMPONENTS Windshield Glass Upper Moulding Joint Cover Lower Moulding Side Moulding Roof Headliner Front Trim Front Pillar Garnish Spacer Wiper Arm Inner Rear View Mirror REMOVAL OF WINDSHIELD 1. REMOVE FRONT PILLAR GARNISH (a) Pry out the clips with a screwdriver. (b) Pull the garnish upward to remove it. 2. REMOVE FOLLOWING PARTS: (a) Inner rear view mirror (b) Roof headliner front trim 3. REMOVE WIPER ARM 4. REMOVE WINDSHIELD MOULDING (See page BO-12)
