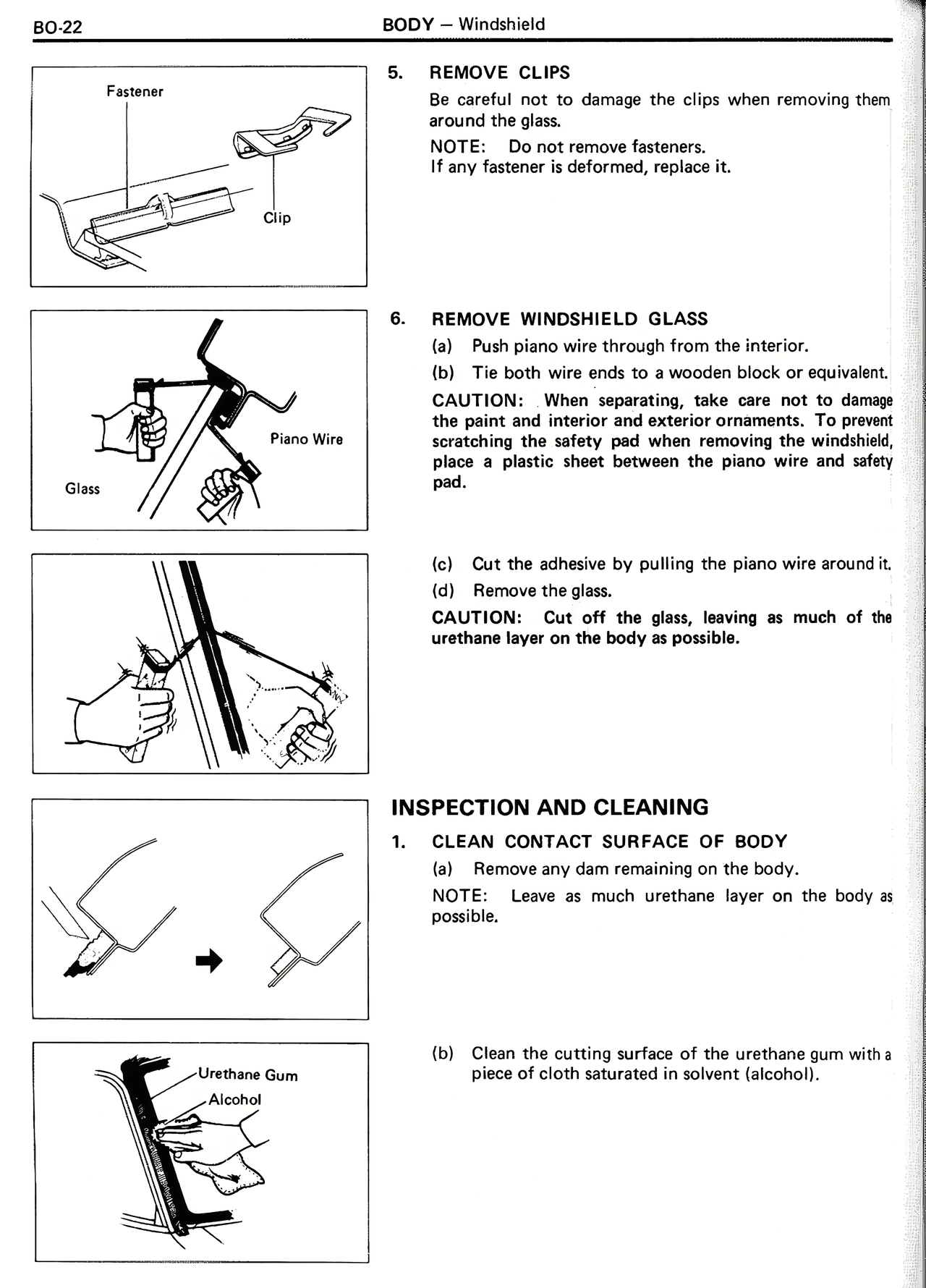

5. REMOVE CLIPS
Be careful not to damage the clips when removing them around the glass.
NOTE: Do not remove fasteners.
If any fastener is deformed, replace it.
6. REMOVE WINDSHIELD GLASS
(a) Push piano wire through from the interior.
(b) Tie both wire ends to a wooden block or equivalent.
CAUTION: When separating, take care not to damage the paint and interior and exterior ornaments. To prevent scratching the safety pad when removing the windshield, place a plastic sheet between the piano wire and safety pad.
(c) Cut the adhesive by pulling the piano wire around it.
(d) Remove the glass.
CAUTION: Cut off the glass, leaving as much of the urethane layer on the body as possible.
INSPECTION AND CLEANING
1. CLEAN CONTACT SURFACE OF BODY
(a) Remove any dam remaining on the body.
NOTE: Leave as much urethane layer on the body as possible.
(b) Clean the cutting surface of the urethane gum with a piece of cloth saturated in solvent (alcohol).
