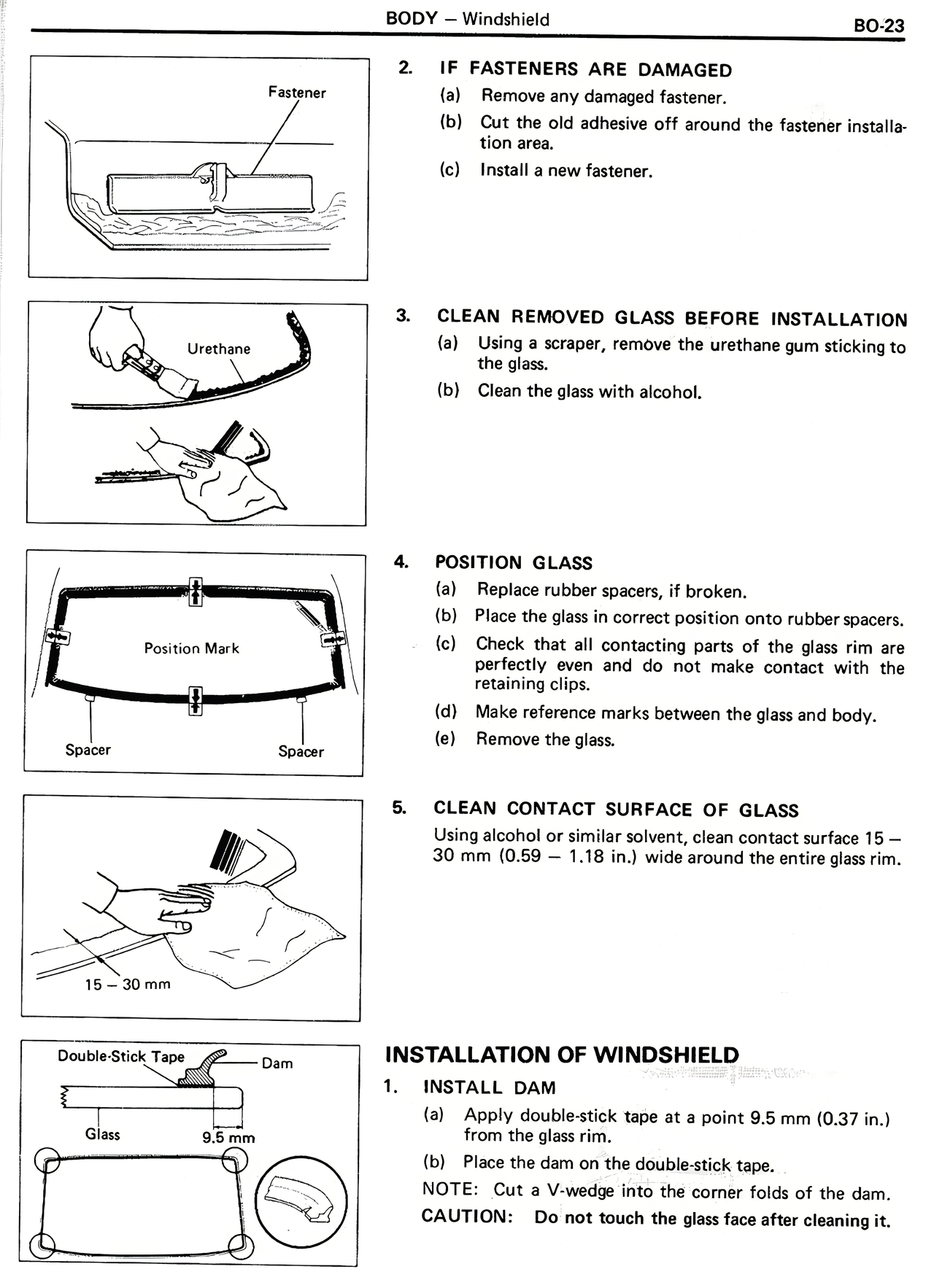

2. IF FASTENERS ARE DAMAGED (a) Remove any damaged fastener. (b) Cut the old adhesive off around the fastener installation area. (c) Install a new fastener. 3. CLEAN REMOVED GLASS BEFORE INSTALLATION (a) Using a scraper, remove the urethane gum sticking to the glass. (b) Clean the glass with alcohol. 4. POSITION GLASS (a) Replace rubber spacers, if broken. (b) Place the glass in correct position onto rubber spacers. (c) Check that all contacting parts of the glass rim are perfectly even and do not make contact with the retaining clips. (d) Make reference marks between the glass and body. (e) Remove the glass. 5. CLEAN CONTACT SURFACE OF GLASS Using alcohol or similar solvent, clean contact surface 15 — 30 mm (0.59 — 1.18 in.) wide around the entire glass rim. INSTALLATION OF WINDSHIELD 1. INSTALL DAM (a) Apply double-stick tape at a point 9.5 mm (0.37 in.) from the glass rim. (b) Place the dam on the double-stick tape. NOTE: Cut a V-wedge into the corner folds of the dam. CAUTION: Do not touch the glass face after cleaning it.
