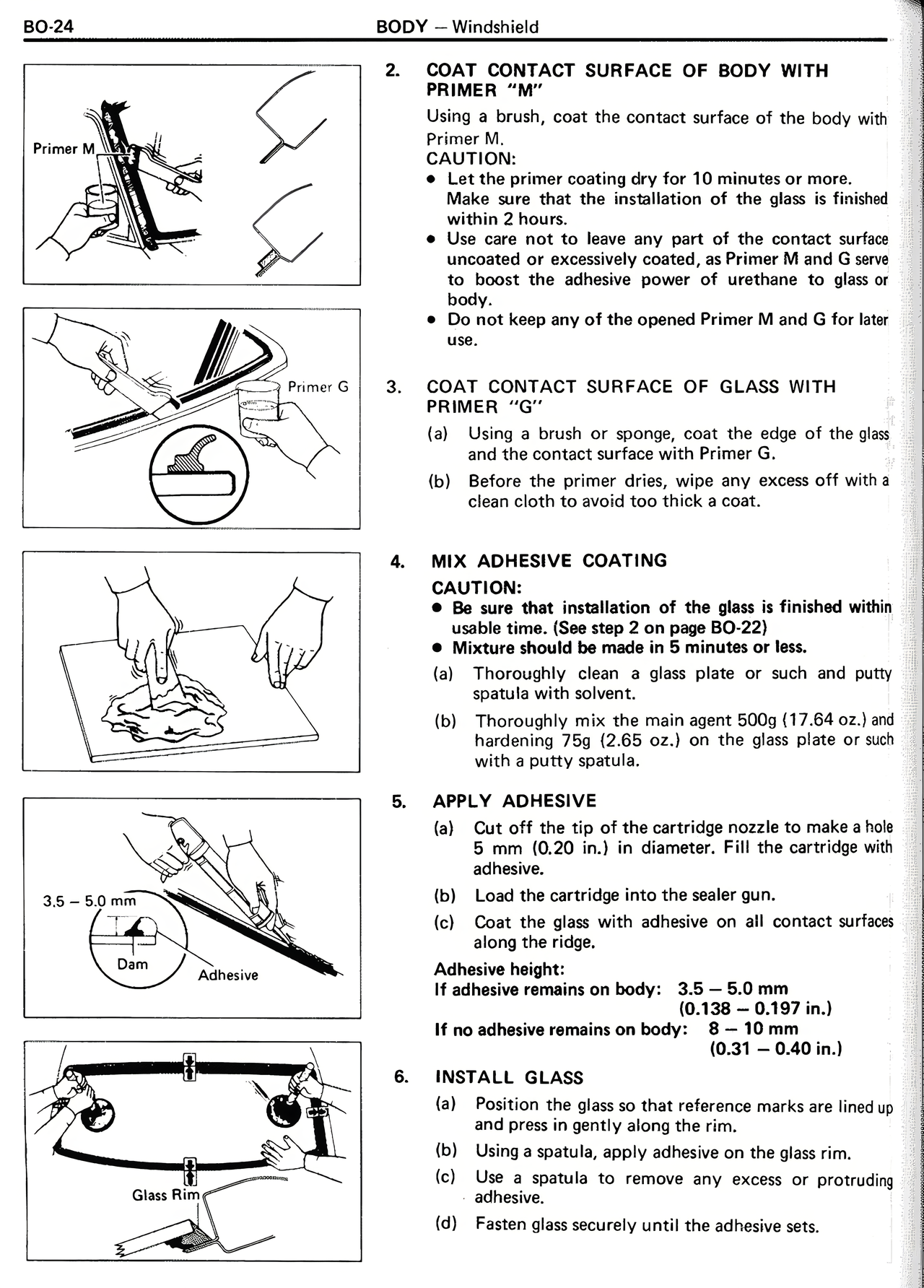

2. COAT CONTACT SURFACE OF BODY WITH PRIMER "M"
Using a brush, coat the contact surface of the body with Primer M.
CAUTION:
• Let the primer coating dry for 10 minutes or more. Make sure that the installation of the glass is finished within 2 hours.
• Use care not to leave any part of the contact surface uncoated or excessively coated, as Primer M and G serve to boost the adhesive power of urethane to glass or body.
• Do not keep any of the opened Primer M and G for later use.
3. COAT CONTACT SURFACE OF GLASS WITH PRIMER "G"
(a) Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
(b) Before the primer dries, wipe any excess off with a clean cloth to avoid too thick a coat.
4. MIX ADHESIVE COATING
CAUTION:
• Be sure that installation of the glass is finished within usable time. (See step 2 on page BO-22)
• Mixture should be made in 5 minutes or less.
(a) Thoroughly clean a glass plate or such and putty spatula with solvent.
(b) Thoroughly mix the main agent 500g (17.64 oz.) and hardening 75g (2.65 oz.) on the glass plate or such with a putty spatula.
5. APPLY ADHESIVE
(a) Cut off the tip of the cartridge nozzle to make a hole 5 mm (0.20 in.) in diameter. Fill the cartridge with adhesive.
(b) Load the cartridge into the sealer gun.
(c) Coat the glass with adhesive on all contact surfaces along the ridge.
Adhesive height:
Adhesive remains on body: 3.5 — 5.0 mm
(0.138 — 0.197 in.)
If no adhesive remains on body: 8 — 10 mm
(0.31 — 0.40 in.)
6. INSTALL GLASS
(a) Position the glass so that reference marks are lined up and press in gently along the rim.
(b) Using a spatula, apply adhesive on the glass rim.
(c) Use a spatula to remove any excess or protruding adhesive.
(d) Fasten glass securely until the adhesive sets.
