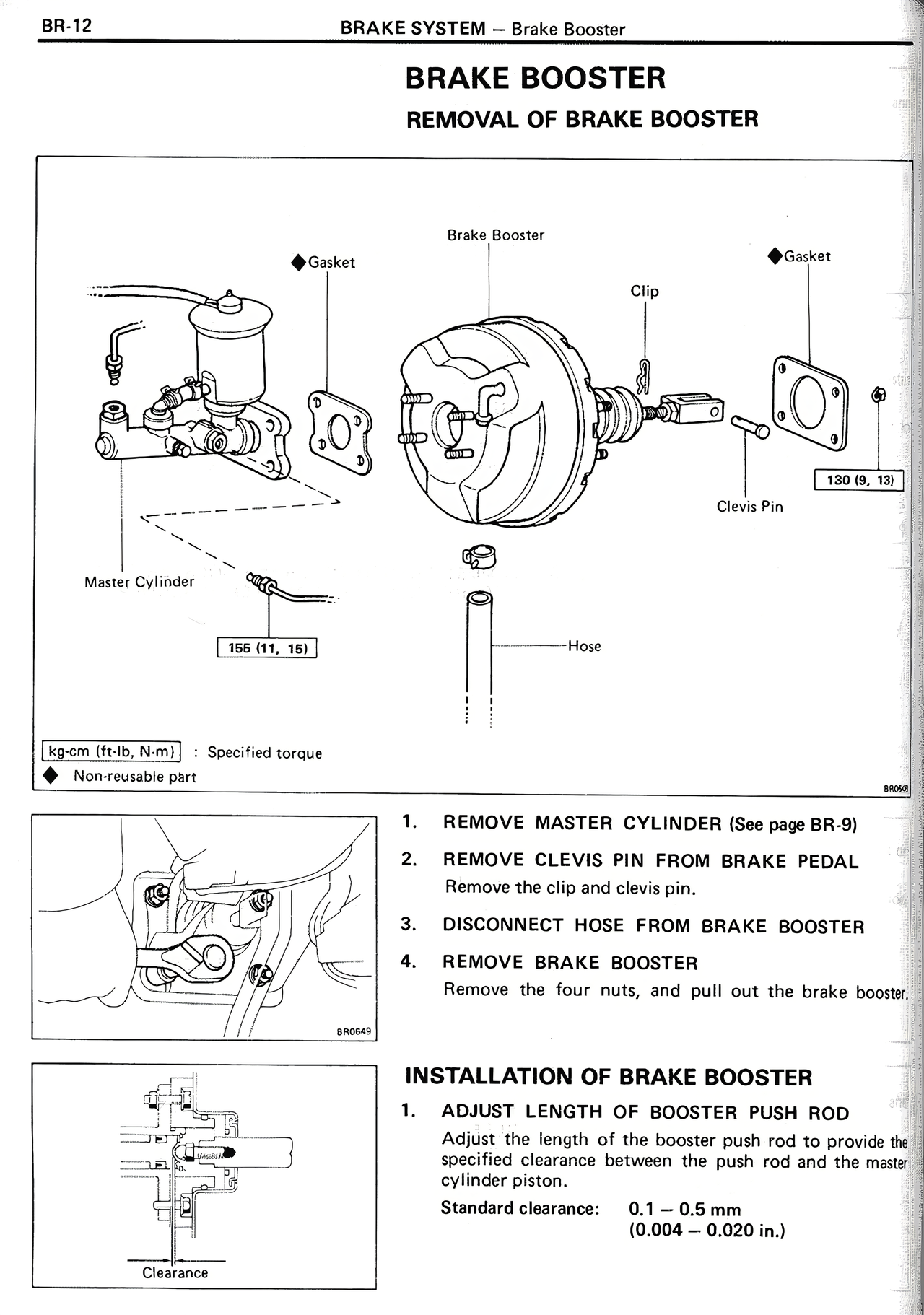

BR-12 BRAKE SYSTEM — Brake Booster BRAKE BOOSTER REMOVAL OF BRAKE BOOSTER [Diagram labels:] Gasket Brake Booster Gasket Clip Master Cylinder 130 (9, 13) Clevis Pin 155 (11, 16) Hose kg-cm (ft-lb, N-m) : Specified torque ◆ Non-reusable part 1. REMOVE MASTER CYLINDER (See page BR-9) 2. REMOVE CLEVIS PIN FROM BRAKE PEDAL Remove the clip and clevis pin. 3. DISCONNECT HOSE FROM BRAKE BOOSTER 4. REMOVE BRAKE BOOSTER Remove the four nuts, and pull out the brake booster. INSTALLATION OF BRAKE BOOSTER 1. ADJUST LENGTH OF BOOSTER PUSH ROD Adjust the length of the booster push rod to provide the specified clearance between the push rod and the master cylinder piston. Standard clearance: 0.1 — 0.5 mm (0.004 — 0.020 in.) [Diagram label:] Clearance
