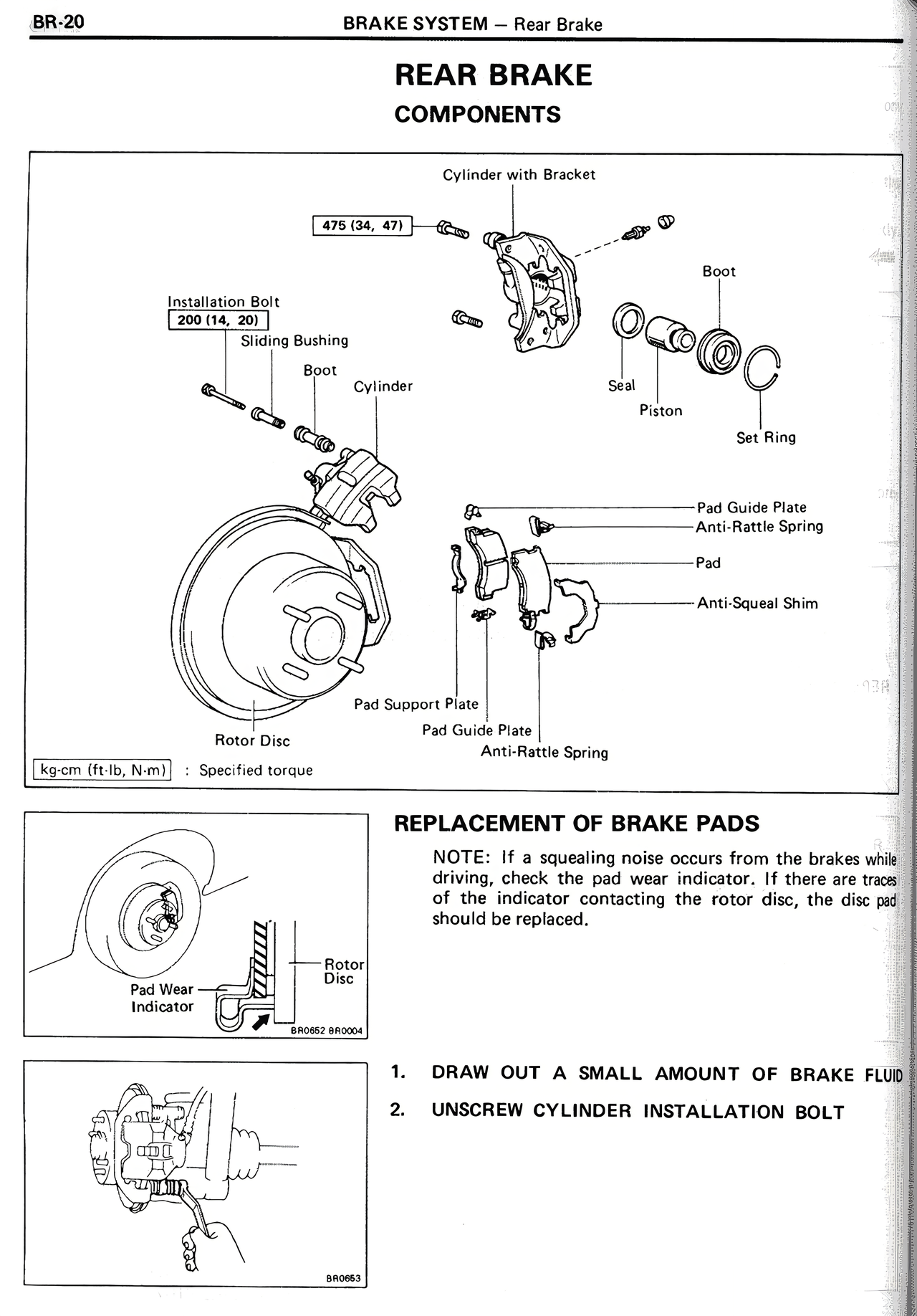

REAR BRAKE COMPONENTS Cylinder with Bracket 475 (34, 47) Boot Installation Bolt 200 (14, 20) Sliding Bushing Boot Cylinder Seal Piston Set Ring Pad Guide Plate Anti-Rattle Spring Pad Anti-Squeal Shim Pad Support Plate Rotor Disc Pad Guide Plate Anti-Rattle Spring kg.cm (ft.lb, N.m) : Specified torque REPLACEMENT OF BRAKE PADS NOTE: If a squealing noise occurs from the brakes while driving, check the rear pad wear indicator. If there are traces of the indicator contacting the rotor disc, the disc pads should be replaced. Pad Wear Indicator Rotor Disc BR0662 BR0063 1. DRAW OUT A SMALL AMOUNT OF BRAKE FLUID 2. UNSCREW CYLINDER INSTALLATION BOLT BR0063
