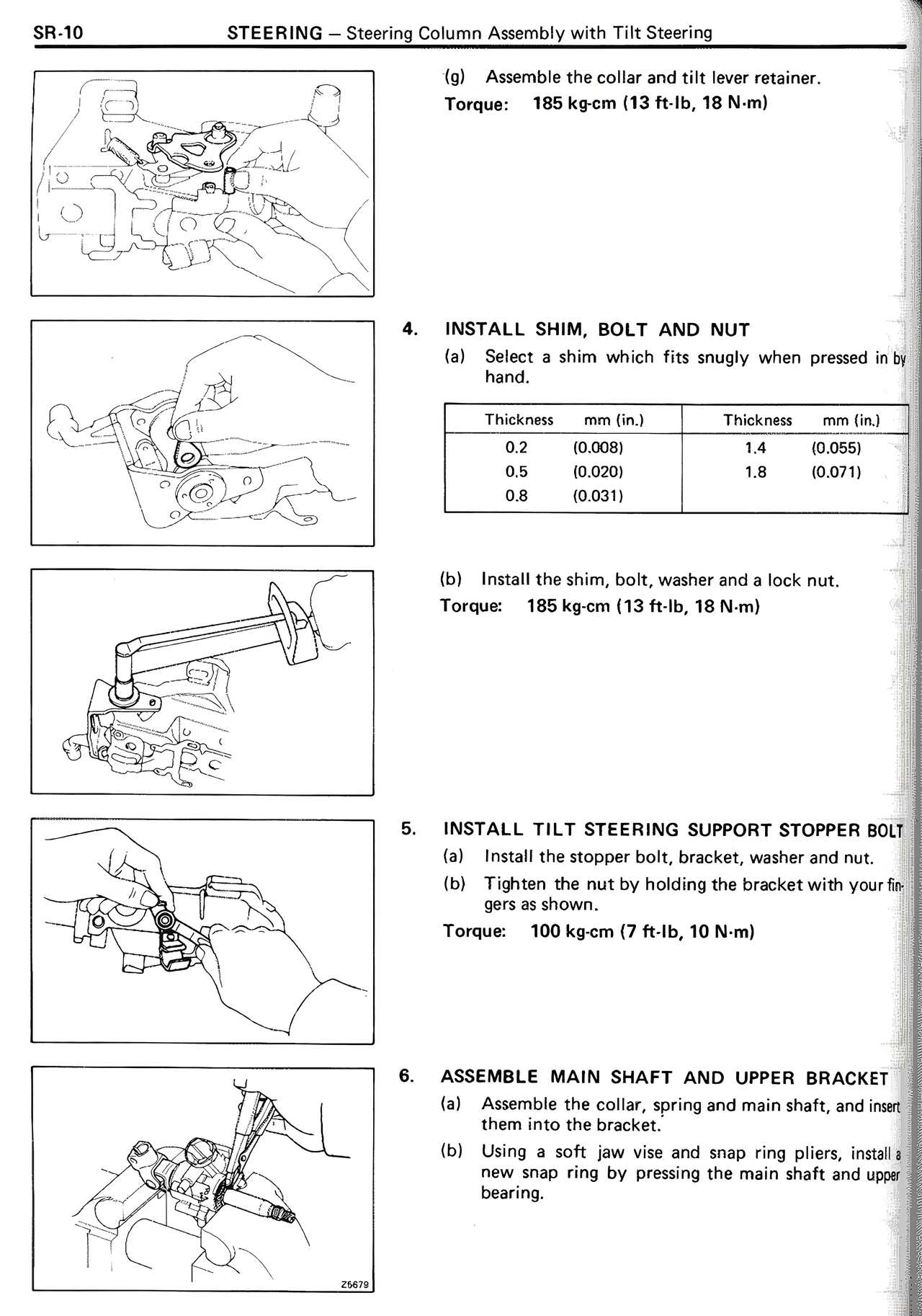

SR-10 STEERING — Steering Column Assembly with Tilt Steering
(g) Assemble the collar and tilt lever retainer.
Torque: 185 kg·cm (13 ft·lb, 18 N·m)
4. INSTALL SHIM, BOLT AND NUT
(a) Select a shim which fits snugly when pressed in by hand.
Thickness mm (in.) Thickness mm (in.)
0.2 (0.008) 1.4 (0.055)
0.5 (0.020) 1.8 (0.071)
0.8 (0.031)
(b) Install the shim, bolt, washer and a lock nut.
Torque: 185 kg·cm (13 ft·lb, 18 N·m)
5. INSTALL TILT STEERING SUPPORT STOPPER BOLT
(a) Install the stopper bolt, bracket, washer and nut.
(b) Tighten the nut by holding the bracket with your fingers as shown.
Torque: 100 kg·cm (7 ft·lb, 10 N·m)
6. ASSEMBLE MAIN SHAFT AND UPPER BRACKET
(a) Assemble the collar, spring and main shaft, and insert them into the bracket.
(b) Using a soft jaw vise and snap ring pliers, install a new snap ring by pressing the main shaft and upper bearing.
29478
