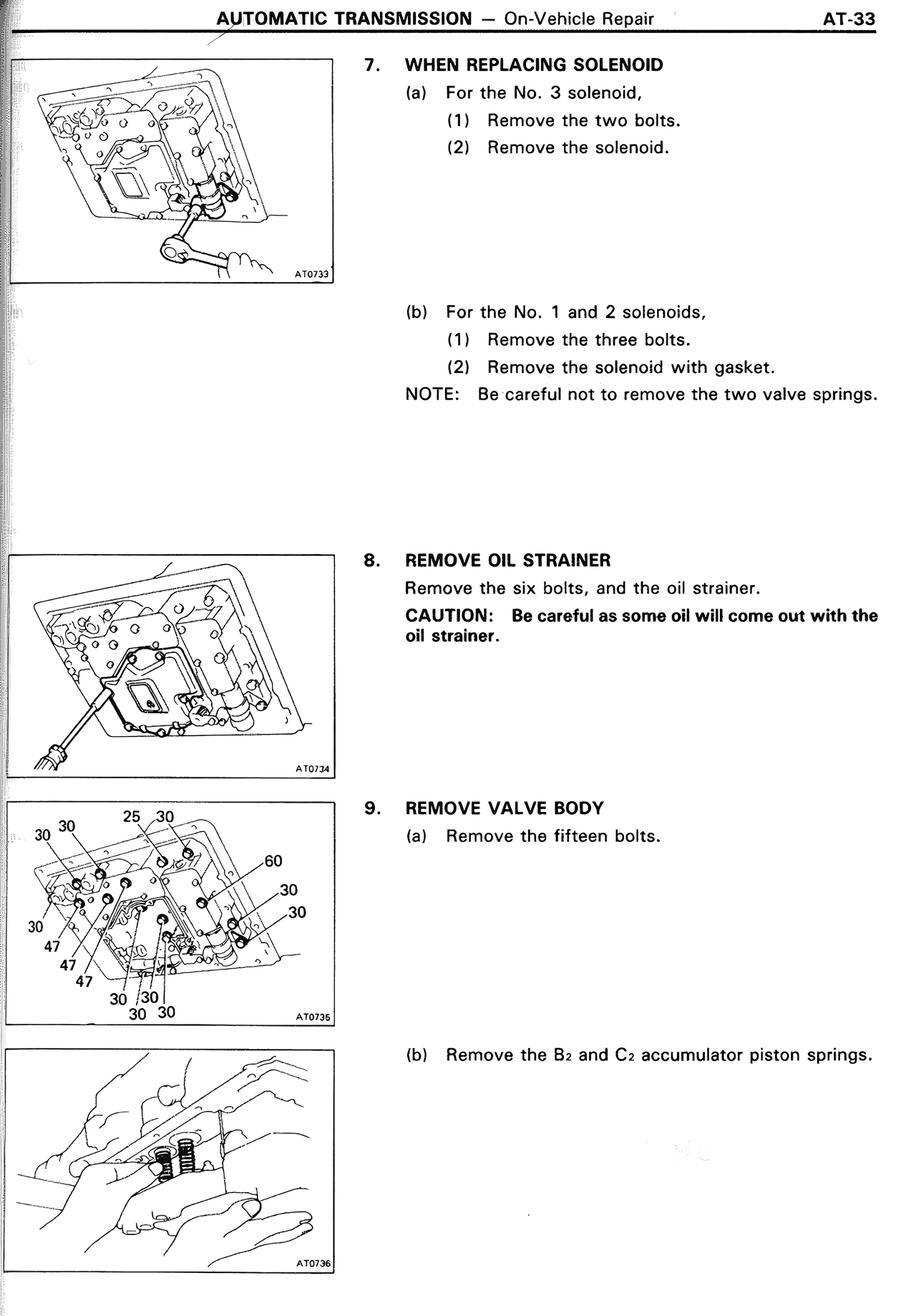

AUTOMATIC TRANSMISSION — On-Vehicle Repair — MK2 Supra Automatic Transmission, page 33
100%
7. WHEN REPLACING SOLENOID (a) For the No. 3 solenoid, (1) Remove the two bolts. (2) Remove the solenoid. (b) For the No. 1 and 2 solenoids, (1) Remove the three bolts. (2) Remove the solenoid with gasket. NOTE: Be careful not to remove the two valve springs. 8. REMOVE OIL STRAINER Remove the six bolts, and the oil strainer. CAUTION: Be careful as some oil will come out with the oil strainer. 9. REMOVE VALVE BODY (a) Remove the fifteen bolts. (b) Remove the B₂ and C₂ accumulator piston springs.
