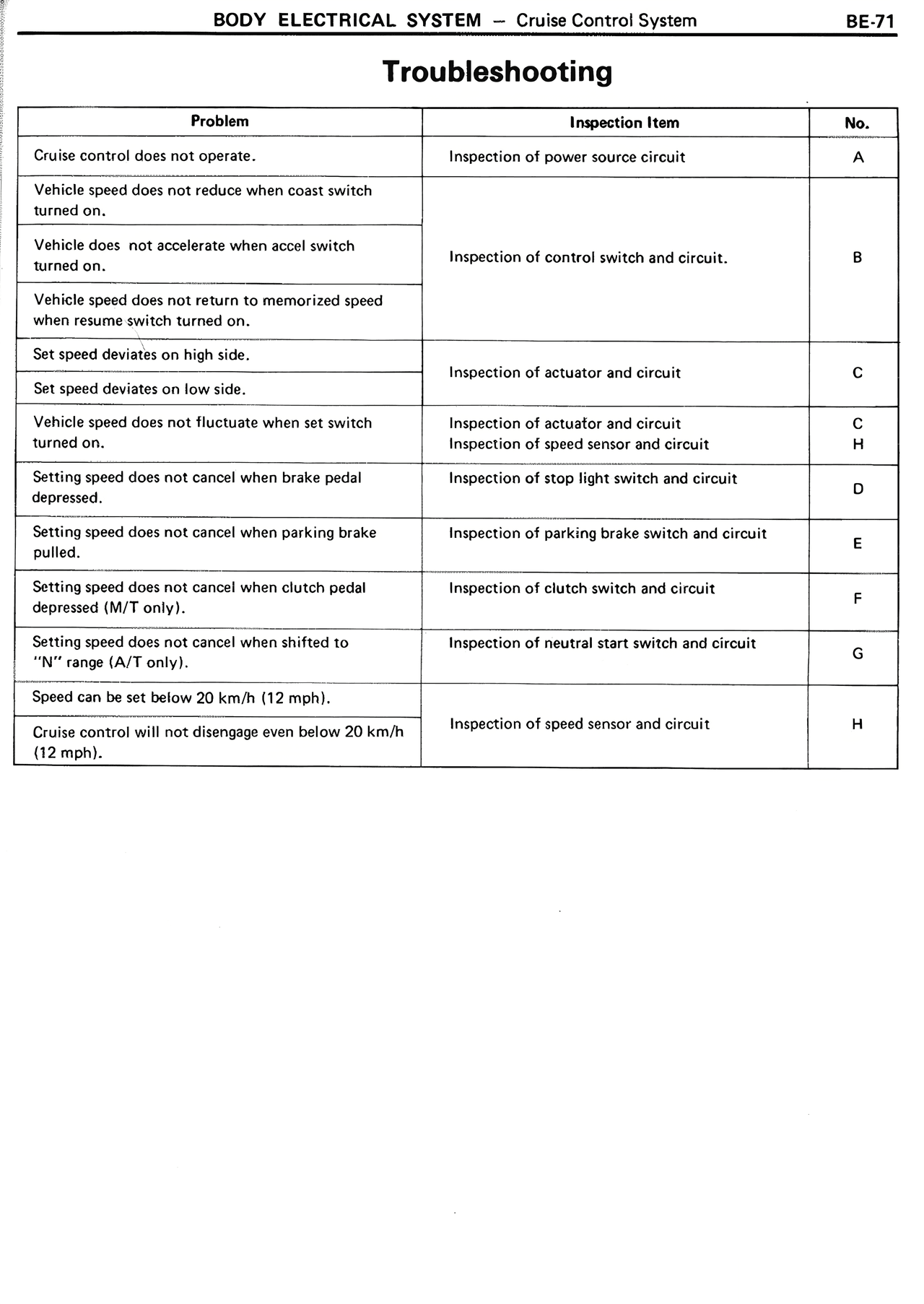

Troubleshooting
Problem | Inspection Item | No.
Cruise control does not operate. | Inspection of power source circuit | A
Vehicle speed does not reduce when coast switch turned on.
Vehicle does not accelerate when accel switch turned on. | Inspection of control switch and circuit. | B
Vehicle speed does not return to memorized speed when resume switch turned on.
Set speed deviates on high side.
Set speed deviates on low side. | Inspection of actuator and circuit | C
Vehicle speed does not fluctuate when set switch turned on. | Inspection of actuator and circuit | C
| Inspection of speed sensor and circuit | H
Setting speed does not cancel when brake pedal depressed. | Inspection of stop light switch and circuit | D
Setting speed does not cancel when parking brake pulled. | Inspection of parking brake switch and circuit | E
Setting speed does not cancel when clutch pedal depressed (M/T only). | Inspection of clutch switch and circuit | F
Setting speed does not cancel when shifted to "N" range (A/T only). | Inspection of neutral start switch and circuit | G
Speed can be set below 20 km/h (12 mph).
Cruise control will not disengage even below 20 km/h (12 mph). | Inspection of speed sensor and circuit | H
