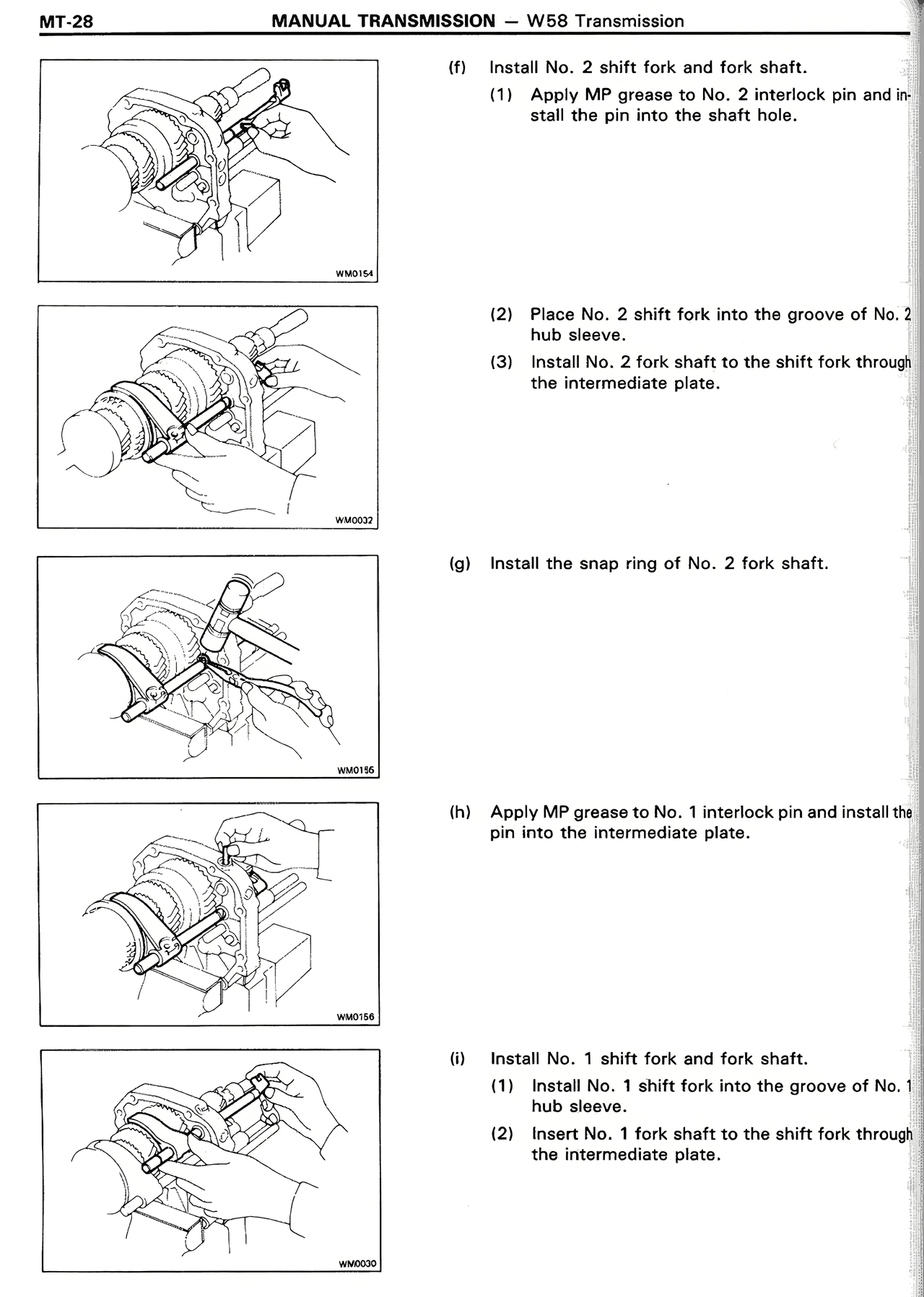

MANUAL TRANSMISSION — W58 Transmission — MK2 Supra Manual Transmission, page 28
100%
MT-28 MANUAL TRANSMISSION — W58 Transmission (f) Install No. 2 shift fork and fork shaft. (1) Apply MP grease to No. 2 interlock pin and install the pin into the shaft hole. (2) Place No. 2 shift fork into the groove of No. 2 hub sleeve. (3) Install No. 2 fork shaft to the shift fork through the intermediate plate. (g) Install the snap ring of No. 2 fork shaft. (h) Apply MP grease to No. 1 interlock pin and install the pin into the intermediate plate. (i) Install No. 1 shift fork and fork shaft. (1) Install the groove of the shift fork to No. 1 hub sleeve. (2) Insert No. 1 fork shaft to the shift fork through the intermediate plate.
