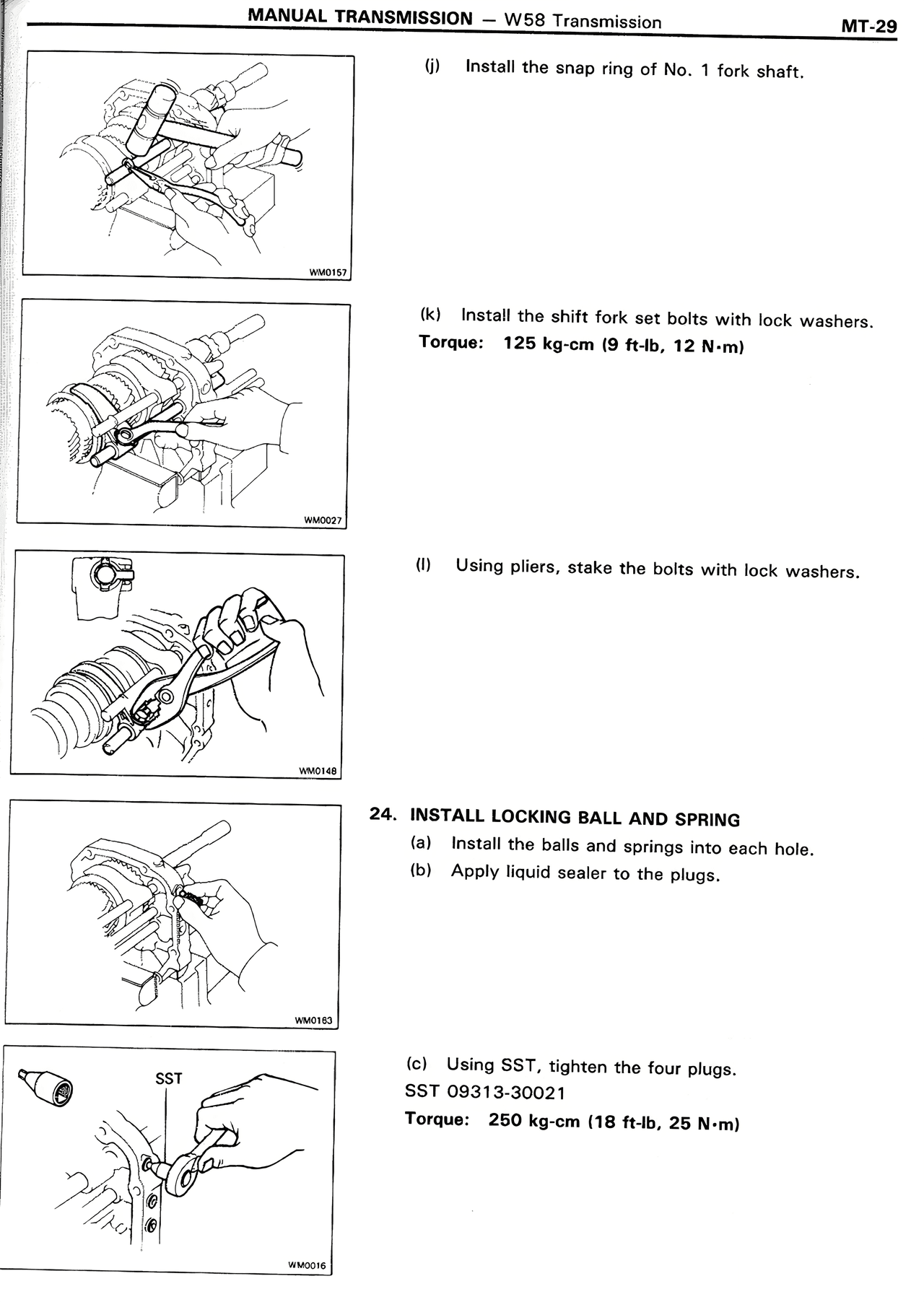

MANUAL TRANSMISSION — W58 Transmission — MK2 Supra Manual Transmission, page 29
100%
MANUAL TRANSMISSION — W58 Transmission MT-29 (j) Install the snap ring of No. 1 fork shaft. (k) Install the shift fork set bolts with lock washers. Torque: 125 kg-cm (9 ft-lb, 12 N·m) (l) Using pliers, stake the bolts with lock washers. 24. INSTALL LOCKING BALL AND SPRING (a) Install the balls and springs into each hole. (b) Apply liquid sealer to the plugs. (c) Using SST, tighten the four plugs. SST 09313-30021 Torque: 250 kg-cm (18 ft-lb, 25 N·m)
