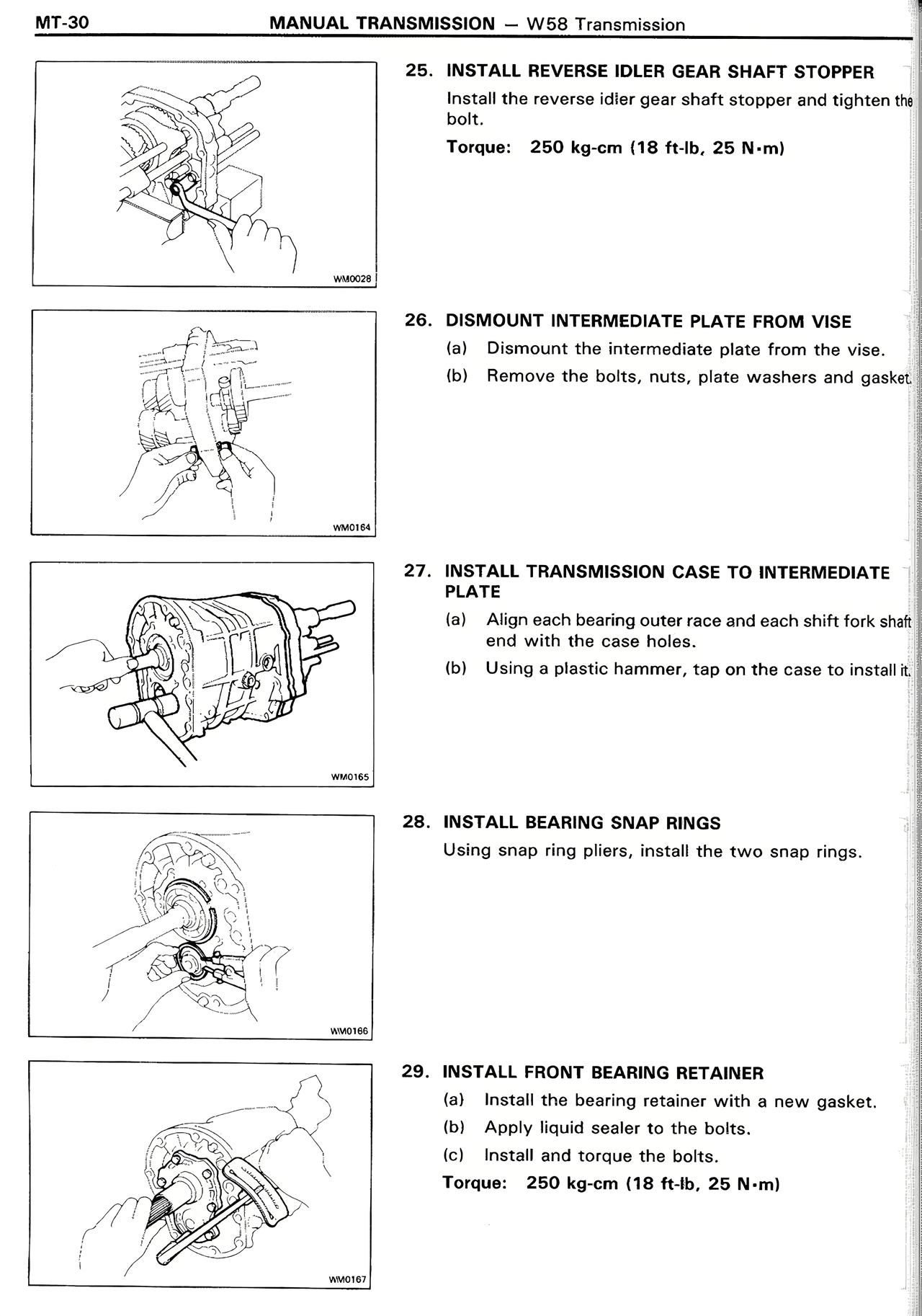

25. INSTALL REVERSE IDLER GEAR SHAFT STOPPER
Install the reverse idler gear shaft stopper and tighten the bolt.
Torque: 250 kg-cm (18 ft-lb, 25 N·m)
26. DISMOUNT INTERMEDIATE PLATE FROM VISE
(a) Dismount the intermediate plate from the vise.
(b) Remove the bolts, nuts, plate washers and gasket.
27. INSTALL TRANSMISSION CASE TO INTERMEDIATE PLATE
(a) Align each bearing outer race and each shift fork shaft with the case holes.
(b) Using a plastic hammer, tap on the case to install it.
28. INSTALL BEARING SNAP RINGS
Using snap ring pliers, install the two snap rings.
29. INSTALL FRONT BEARING RETAINER
(a) Install the bearing retainer with a new gasket.
(b) Apply liquid sealer to the bolts.
(c) Install and torque the bolts.
Torque: 250 kg-cm (18 ft-lb, 25 N·m)
