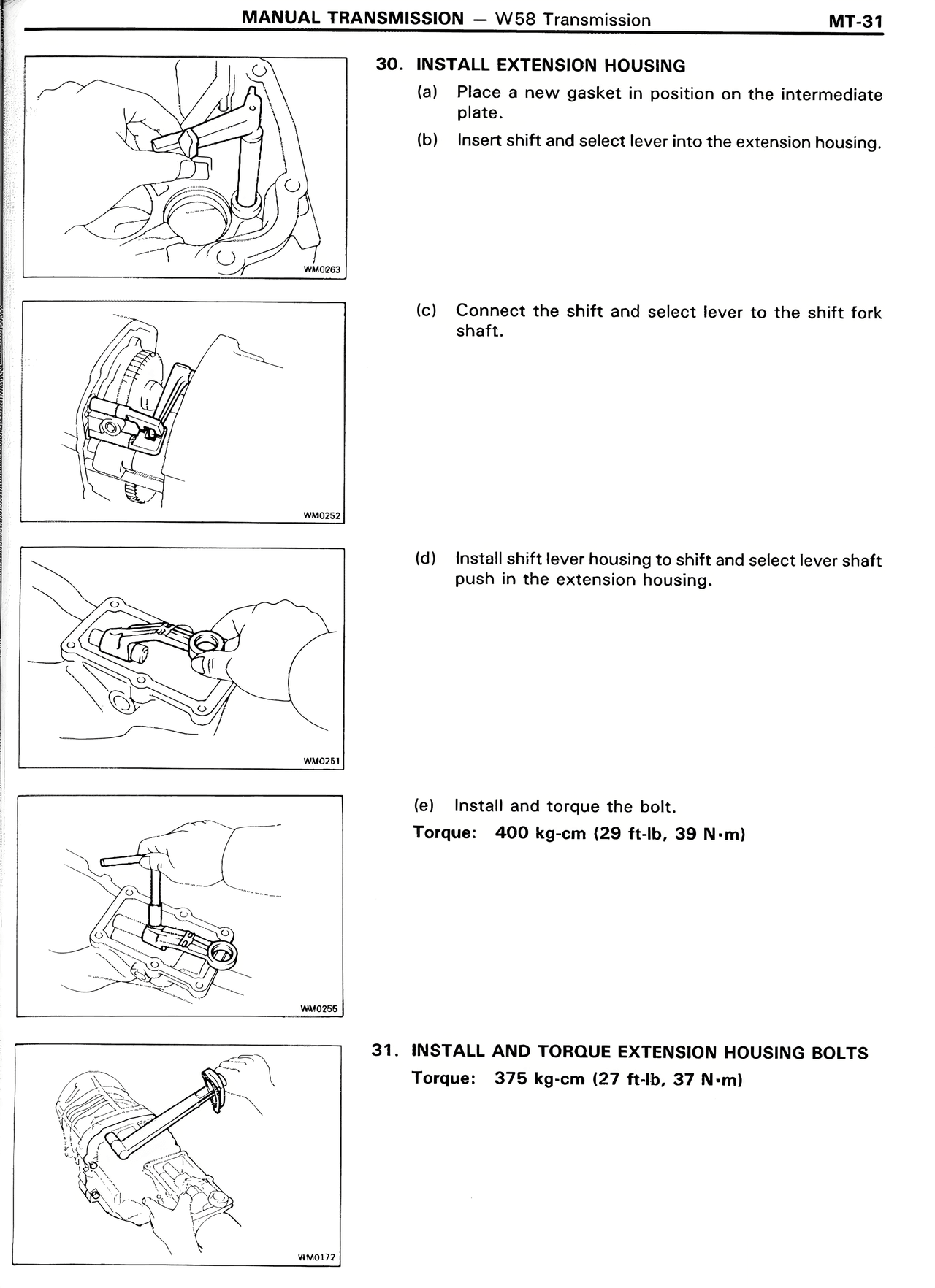

MANUAL TRANSMISSION — W58 Transmission — MK2 Supra Manual Transmission, page 31
100%
30. INSTALL EXTENSION HOUSING (a) Place a new gasket in position on the intermediate plate. (b) Insert shift and select lever into the extension housing. (c) Connect the shift and select lever to the shift fork shaft. (d) Install shift lever housing to shift and select lever shaft push in the extension housing. (e) Install and torque the bolt. Torque: 400 kg-cm (29 ft-lb, 39 N·m) 31. INSTALL AND TORQUE EXTENSION HOUSING BOLTS Torque: 375 kg-cm (27 ft-lb, 37 N·m)
